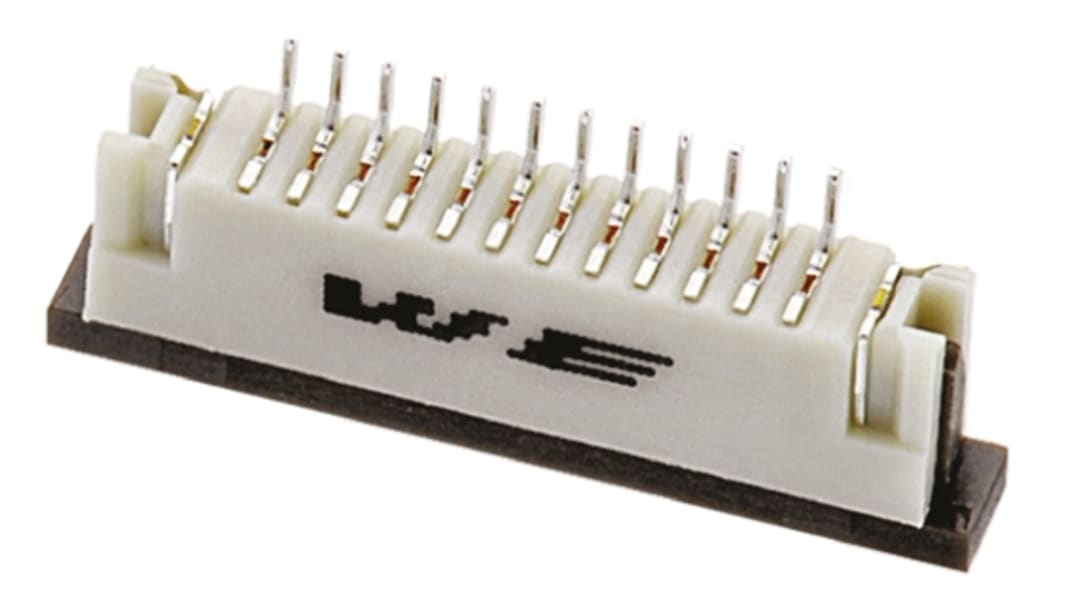

Wurth Elektronik, 686 1mm Pitch 10 Way Straight FPC Connector
- RS Stock No.:
- 763-2566
- Mfr. Part No.:
- 68611014422
- Brand:
- Wurth Elektronik
25 In stock for delivery within 7 working day(s)
Added
Price (ex. GST) Each (In a Pack of 5)
$2.454
(exc. GST)
$2.822
(inc. GST)
| Units | Per unit | Per Pack* |
| 5 - 370 | $2.454 | $12.27 |
| 375 - 745 | $2.392 | $11.96 |
| 750 + | $1.826 | $9.13 |
| *price indicative | ||
- RS Stock No.:
- 763-2566
- Mfr. Part No.:
- 68611014422
- Brand:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
Product Details
FPC ZIF Connectors Bottom Contact - Wurth
This range of Wurth PFC/FFC 1.0 mm pitch horizontal Connectors are SMT, Bottom Contact types which require Zero Insertion Force (ZIF). These Wurth PFC/FFC 1.0 mm pitch horizontal connectors are capable of 25 mating cycles and have a Flammability Rating of UL94-V0. With a low profile horizontal aspect these Wurth PFC/FFC 1.0 mm pitch connectors can be utilized in compact applications.
Note
Approvals
UL Certified E323964
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Wurth 1.0mm FPC Connectors and Jumper Cables
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 10 |
| Contact Material | Phosphor Bronze |
| Pitch | 1mm |
| Mounting Type | Surface Mount |
| Body Orientation | Straight |
| Current Rating | 1A |
| Voltage Rating | 125 V |
| Series | 686 |
| Number of Rows | 1 |
| Termination Method | Solder Pin |
