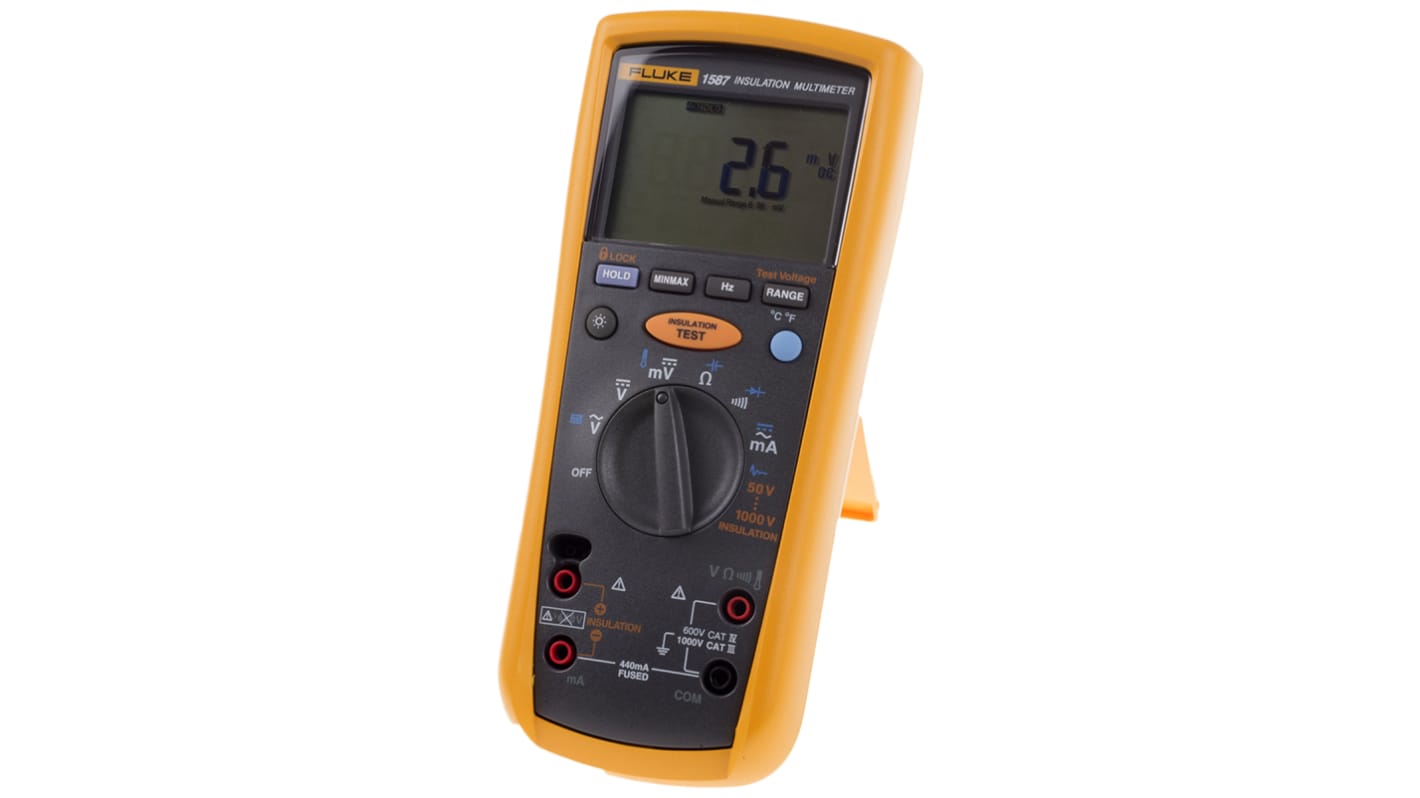

Fluke 1587 Insulation Resistance Tester, 50V Min, 1000V Max, 2GΩ Max, CAT III 1000 V, CAT IV 600 V

RS Stock No.:: 512-2486
Mfr. Part No.:: FLUKE-1587
Brand:: Fluke

Fluke 1587 Insulation Resistance Tester, 50V Min, 1000V Max, 2GΩ Max, CAT III 1000 V, CAT IV 600 V

View this category

Discontinued product

Alternatives

This product is not currently available. Here are our alternative recommendations.

Fluke 1507 Insulation Tester, 50V Min, 1000V Max, 10GΩ Max, CAT III 600V

RS Stock No.: 518-6008

Price (ex. GST) Each

$1,471.80

(exc. GST)

$1,692.57

(inc. GST)

Fluke Multimeter Kit

RS Stock No.: 665-4690

Price (ex. GST) Each

$830.11

(exc. GST)

$954.63

(inc. GST)

Fluke 1550C Insulation Tester, 250V Min, 5000V Max, 1TΩ Max, CAT III 1000V

RS Stock No.: 705-1957

Price (ex. GST) Each

$9,843.90

(exc. GST)

$11,320.48

(inc. GST)

Fluke 1587 FC Insulation Tester, 50V Min, 1000V Max, 2GΩ Max, CAT III 1000V

RS Stock No.: 905-5920

Price (ex. GST) Each

$2,096.60

(exc. GST)

$2,411.09

(inc. GST)

RS Stock No.:: 512-2486
Mfr. Part No.:: FLUKE-1587
Brand:: Fluke

Technical data sheets

Legislation and Compliance

RoHS Status: Not Applicable

COO (Country of Origin):: US

Product Details

Fluke 1577 & 1587 Insulation Multimeters

The Fluke Insulation Multimeters combine a digital insulation tester with a full-featured, true RMS digital multimeter in a single, compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance.

Fluke 1577 & 1587

Large display with backlight
Insulation test: 1587: 0.01 MΩ to 2 GΩ. 1577: 0.1 MΩ to 600 MΩ
Insulation test voltages (V) 1587: 50, 100, 250, 500, 1000; 1577: 500, 1000) for many applications
Live circuit detection prevents insulation test if voltage >30V is detected for added user protection
Auto-discharge of capacitive voltage for added user protection
AC/DC voltage, DC milliVolts, AC/DC milliamps, Resistance (Ω), Continuity
Auto power off
CAT III 1000V, CAT IV 600V measurement category
H. 50 x W. 203 x D.100mm; Wt. 550g

Fluke 1587 additional features:

Filter for motor drive measurements
Capacitance, diode test, temperature, Min/Max, frequency (Hz)
Insulation test smoothing reading
K-type thermocouple

Supplied with

Batteries, remote probe, test leads and probes, alligator clips, instruction manual, rugged utility hard case and (1587 only) K-type thermocouple.

Specifications

Attribute	Value
Model Number p	1587
Tester Type	Insulation Resistance Tester
Minimum Test Voltage	50V
Maximum Test Voltage	1000V
Maximum Insulation Resistance Measurement	2GΩ
Test Current	1mA
Battery Type	AA
Power Source	Battery
Battery Life	1000 h
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+55°C
Safety Category Voltage	600 V, 1000 V
Safety Category Level	CAT III, CAT IV
Safety Category	CAT III 1000 V, CAT IV 600 V
Weight	550g
Width	100mm
Length	203mm
Dimensions	203 x 100 x 50mm
Height	50mm
