    Murata 330 μH ±10% Leaded Inductor, Max SRF:1.6MHz, Q:25, 4.5A Idc, 91mΩ Rdc, 1400

    Murata Power Solutions
    RS Stock No.:
    228-602
    Mfr. Part No.:
    1433445C
    Brand:
    Murata Power Solutions

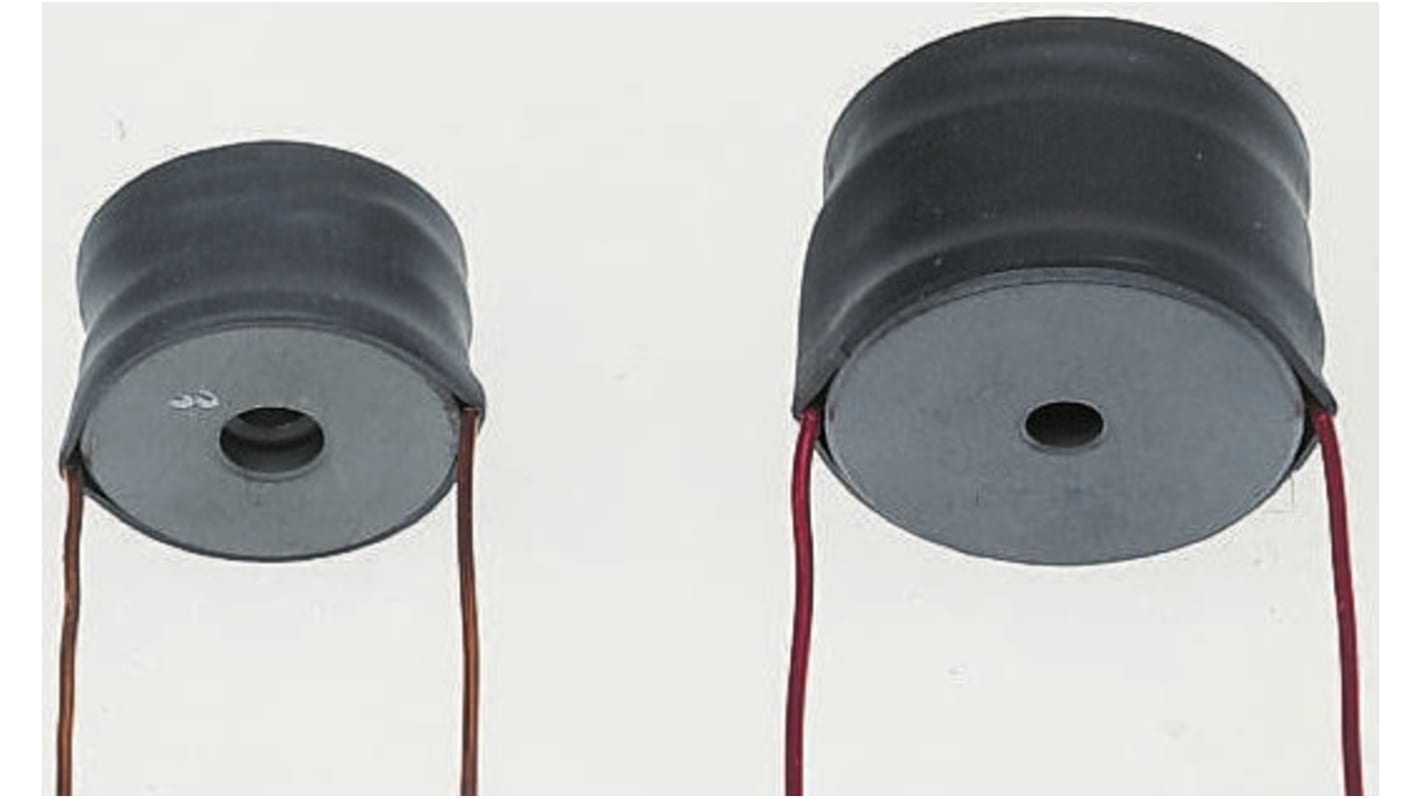

    This image is representative of the product range

    View all Leaded Inductors
    9 in Global stock for delivery within 5 working day (+3 days for regional areas).
    95 in Global stock for delivery within 7 working day (+3 days for regional areas).
    Add to Basket
    units

    Added

    Price (ex. GST) Each

    $6.87

    (exc. GST)

    $7.90

    (inc. GST)

    unitsPer unit
    1 - 3$6.87
    4 - 7$6.77
    8 +$6.60
    RS Stock No.:
    228-602
    Mfr. Part No.:
    1433445C
    Brand:
    Murata Power Solutions

    Technical data sheets


    Legislation and Compliance


    Product Details

    Murata 1400 Series High Current Radial Inductors


    Designed for use in power line applications such as switching regulators, filters and suppression circuits
    Constructed from high saturation flux density material enabling use in high current applications
    Suitable for PCB or chassis mounting using a non-magnetic fastener via the central fixing hole
    Terminated with easy-strip pre-tinned enamelled copper leads
    Lead length 10mm
    Operating temperature: -40 → +85°C
    Inductance Tolerance: ±10%


    Murata Leaded Inductors (Chokes)

    Specifications

    AttributeValue
    Inductance330 μH
    Maximum DC Current4.5A
    Mounting TypeRadial
    Maximum DC Resistance91mΩ
    Tolerance±10%
    Diameter31.8mm
    Length31.8mm
    Depth29.8mm
    Height21.8mm
    Dimensions31.8 x 29.8 x 21.8mm
    Maximum Self Resonant Frequency1.6MHz
    Lead Pitch29mm
    Series1400
    Terminal TypeRadial Leaded
    Minimum Quality Factor25
    Minimum Operating Temperature-40°C
    Maximum Operating Temperature+85°C
    Lead Diameter1.02mm
