EPCOS 100 μH Ferrite VHF Inductor, Max SRF:55 MHz, 1 A Idc, 650 mΩ Rdc, B82111E
- RS Stock No.:
- 213-1910
- Mfr. Part No.:
- B82111E0000C025
- Brand:
- EPCOS

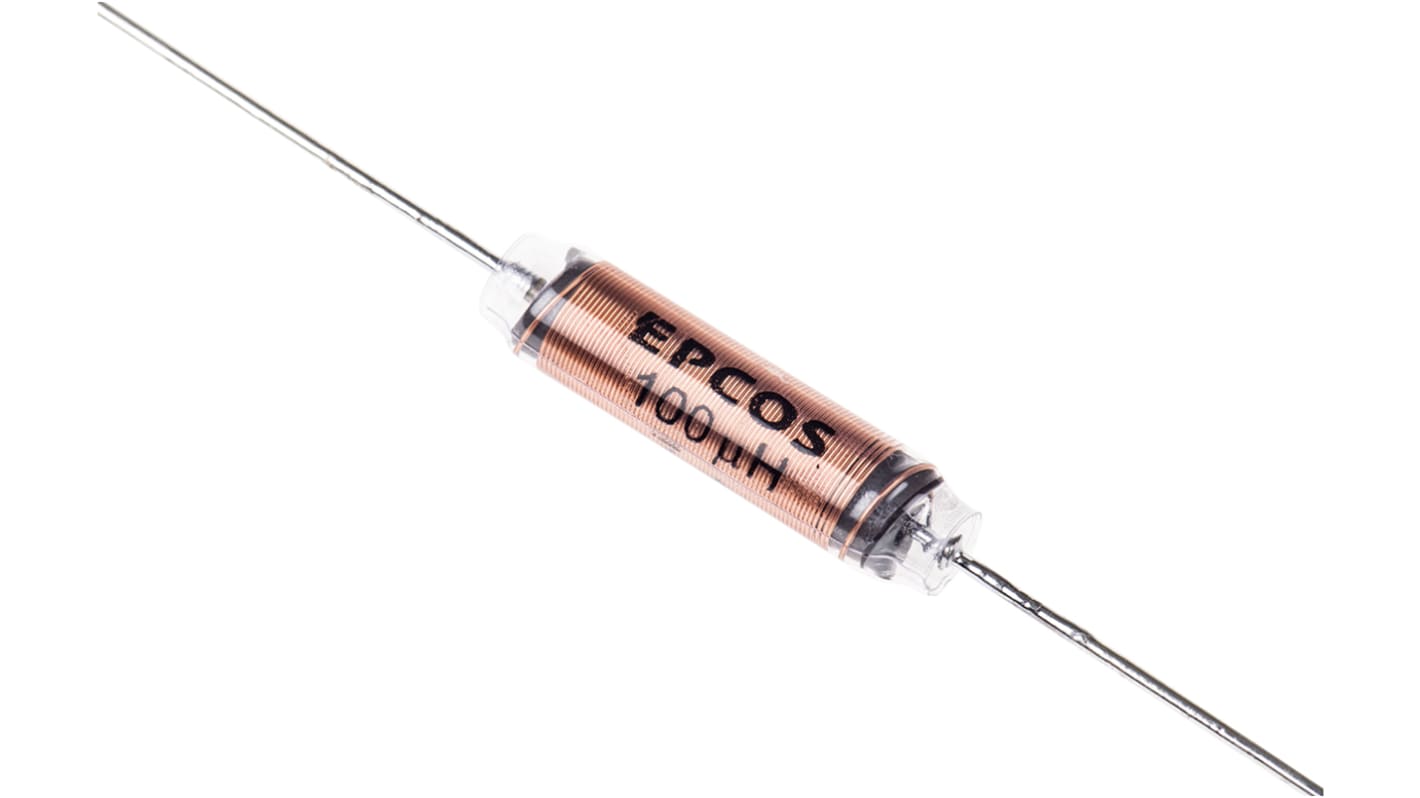

This image is representative of the product range
Temporarily out of stock
- RS Stock No.:
- 213-1910
- Mfr. Part No.:
- B82111E0000C025
- Brand:
- EPCOS
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Inductance | 100 μH | |
| Product Type | VHF Inductor | |
| Maximum DC Current | 1A | |
| Mount Type | Axial | |
| Maximum DC Resistance | 650mΩ | |
| Test Frequency | 1 MHz | |
| Packaging | Tape & Reel | |
| Diameter | 6.5 mm | |
| Automotive Standard | No | |
| Height | 6.5mm | |
| Core Material | Ferrite | |
| Inductance Tolerance | ±20 % | |
| Maximum Self Resonant Frequency | 55MHz | |
| Lead Pitch | 27.4mm | |
| Length | 27.4mm | |
| Standards/Approvals | RoHS, EN | |
| Depth | 6.5mm | |
| Series | B82111E | |
| Select all | ||
|---|---|---|
Brand EPCOS | ||
Inductance 100 μH | ||
Product Type VHF Inductor | ||
Maximum DC Current 1A | ||
Mount Type Axial | ||
Maximum DC Resistance 650mΩ | ||
Test Frequency 1 MHz | ||
Packaging Tape & Reel | ||
Diameter 6.5 mm | ||
Automotive Standard No | ||
Height 6.5mm | ||
Core Material Ferrite | ||
Inductance Tolerance ±20 % | ||
Maximum Self Resonant Frequency 55MHz | ||
Lead Pitch 27.4mm | ||
Length 27.4mm | ||
Standards/Approvals RoHS, EN | ||
Depth 6.5mm | ||
Series B82111E | ||
Epcos B82111E VHF Axial Choke
Ferrite cylinder core with single layer, enamel copper wire, winding in polyester insulating sleeve
Offers high resonance frequency
Suitable for RF blocking and filtering, interference suppression in small size equipment, decoupling and telecoms and entertainment electronics
VDE 0565-2 (not B82500)
