Select all	Attribute	Value
	Brand	NXP
	Product Type	Microcontroller
	Series	VF6xx
	Package Type	BGA
	Mount Type	Surface
	Pin Count	364
	Data Bus Width	32bit
	Program Memory Size	512kB
	Maximum Clock Frequency	24MHz
	RAM Size	1.5MB
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Length	17mm
	Height	1.5mm
	Width	17 mm
	DACs	12 bit
	Maximum Power Dissipation Pd	2.04W
	Standards/Approvals	No
	Minimum Supply Voltage	3V
	Instruction Set Architecture	ARM
	Automotive Standard	No
	ADCs	2 x 12 Bit
	Number of Timers	4

	Select all
	Brand NXP
	Product Type Microcontroller
	Series VF6xx
	Package Type BGA
	Mount Type Surface
	Pin Count 364
	Data Bus Width 32bit
	Program Memory Size 512kB
	Maximum Clock Frequency 24MHz
	RAM Size 1.5MB
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Length 17mm
	Height 1.5mm
	Width 17 mm
	DACs 12 bit
	Maximum Power Dissipation Pd 2.04W
	Standards/Approvals No
	Minimum Supply Voltage 3V
	Instruction Set Architecture ARM
	Automotive Standard No
	ADCs 2 x 12 Bit
	Number of Timers 4

Vybrid microcontroller series datasheet

Vybrid VF6xx microcontroller family

Vybrid devices are Ideal for applications including simple HMI in appliances and industrial machines, secure control of infrastructure and manufacturing equipment, energy conversion applications such as motor drives and power inverters, ruggedized wired and wireless connectivity, and control of mobile battery-operated systems such as robots and industrial vehicles. Vybrid devices can also provide on-chip encryption, secure boot, anti-tamper and anti-clone capabilities to secure sensitive or critical infrastructure applications such as smart grid or industrial control.

Dual heterogeneous core ARM 400/500MHz Cortex-A5 & Cortex-M4 microcontroller with 1.5MB SRAM (1.0MB with L2 cache option)

Optional 512KB L2 Cache

Dual USB 2.0 OTG with integrated PHY

Dual Ethernet 10/100 MAC with L2 switch

Both digital and analogue video Camera interfaces

Dual display controllers supporting resolutions up to SVGA or one display up to XGA (1024 x 768)

High-assurance boot with crypto acceleration

800MHz DDR3 and LPDDR2 support with 8-bit ECC protection

NAND Flash controller and dual quad-SPI with Execute-In-Place (XIP)

Dual 12-bit ADC and DAC

Dual SDIO

The Vybrid F Series are devices that at the entry level, provide a low-power, single-core solution for applications processing. At the high-end, they provide a highly integrated, heterogenous dual-core MPU for applications requiring rich human-machine interfaces (HMI) and connectivity with real-time determinism. This enables customers to create systems that concurrently run a high-level operating system such as Linux and a real-time operating system such as MQX on the same device.

Note

NXP is a trademark of NXP B.V.

Units	Per unit
1 - 9	$72.29
10 - 49	$71.06
50 +	$68.31

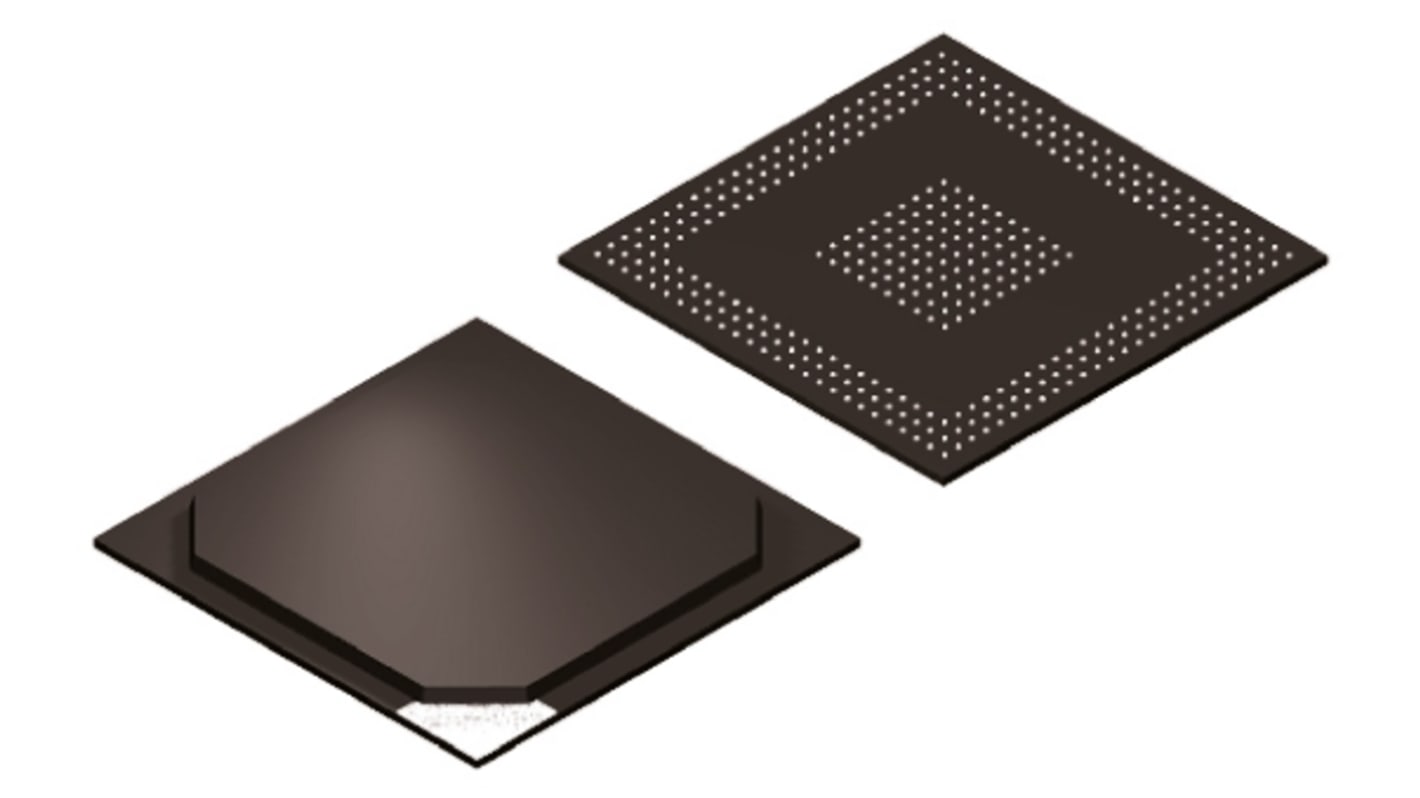

NXP MVF61NS151CMK50, 32 bit, VF6xx Microcontroller, 24 MHz, 512kB, 364-Pin BGA
