Seasonic 250W PC Power Supply, 100 → 240V ac Input, -12 V dc, 3.3 V dc, 5 V dc, 12 V dc Output
- RS Stock No.:
- 136-6052
- Mfr. Part No.:
- SSP-250SUB
- Brand:
- Seasonic
15 in Global stock for delivery within 1 working day (+3 days for regional areas).
236 in Global stock for delivery within 7 working day (+3 days for regional areas).
Added
Price (ex. GST) Each
$154.37
(exc. GST)
$177.53
(inc. GST)
| Units | Per unit |
| 1 - 9 | $154.37 |
| 10 - 49 | $152.07 |
| 50 + | $125.16 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 136-6052
- Mfr. Part No.:
- SSP-250SUB
- Brand:
- Seasonic
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

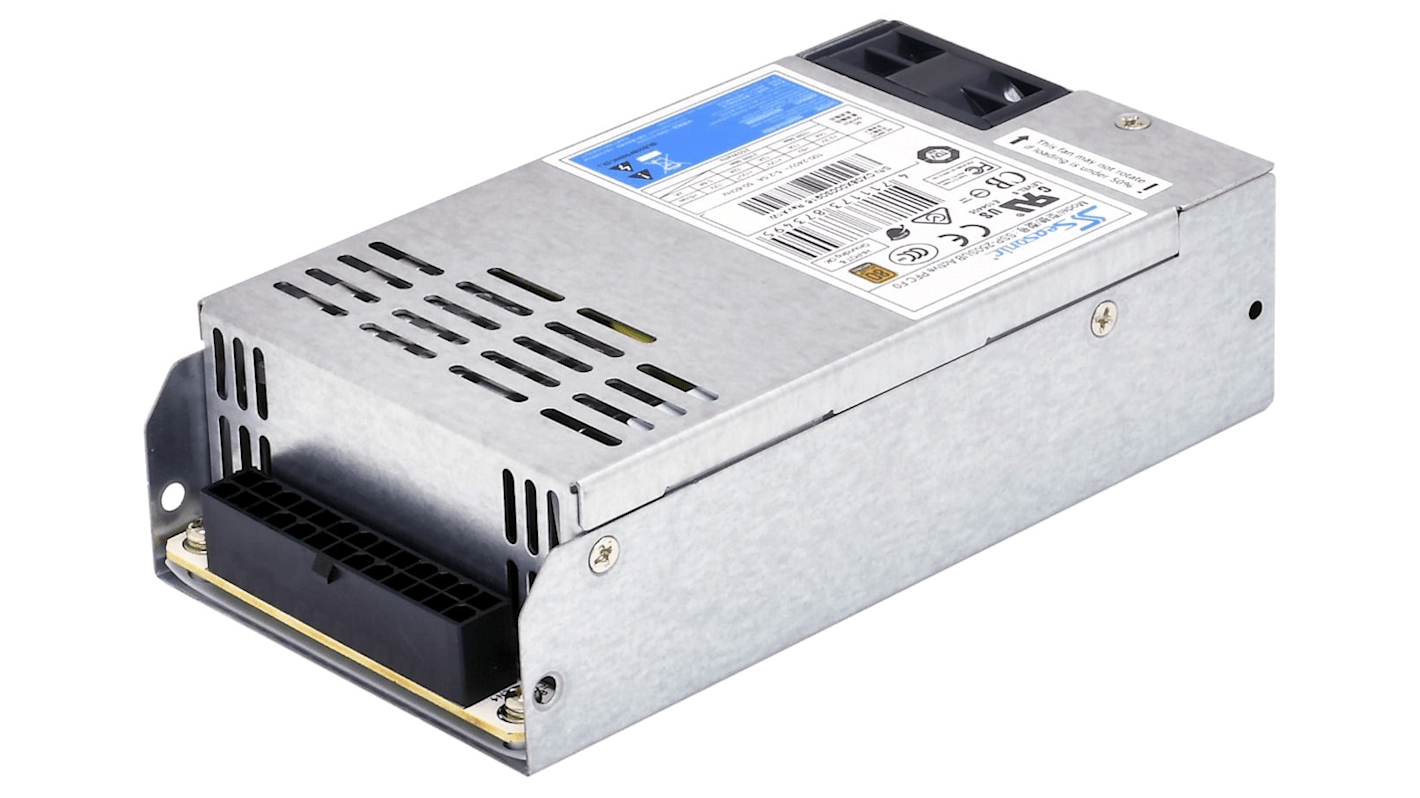

Seasonic PC Power Supply
The Seasonic SSP series switch-mode power supply has a power rating of 250W and outputs a current of 14A at 3.3V, 17A at 5V, 12A at 12V and 0.8A at -12V. This offers a reliable source for a wide range of setups. Its extremely low noise fan control makes it a pleasant companion in any industrial system. It has an operating supply of voltage range from 100VDC to 240VDC.
Features and Benefits
SATA-ready
Fully modular
High efficiency and reliability
Low ripple and noise
Super low noise fan control
Short circuit protection on all outputs
Over voltage protection
Over power protection
Fanless mode (up to 30% load)
Connectors are main power and ATX 12 V
Active power factor correction is >95% (typical)
Fully modular
High efficiency and reliability
Low ripple and noise
Super low noise fan control
Short circuit protection on all outputs
Over voltage protection
Over power protection
Fanless mode (up to 30% load)
Connectors are main power and ATX 12 V
Active power factor correction is >95% (typical)
Applications
Workstations
Standard or advanced servers
Automation or communication applications
Standard or advanced servers
Automation or communication applications
Certifications
CB certified
cUL approved
UL approved
CCC certified
FCC certified
TUV certified
GSMI
RCM
cUL approved
UL approved
CCC certified
FCC certified
TUV certified
GSMI
RCM
Specifications
Attribute | Value |
|---|---|
| Input Voltage | 100 → 240V ac |
| Output Voltage | -12 V dc, 3.3 V dc, 5 V dc, 12 V dc |
| Power Rating | 250W |
| Output Current | 2 A, 14 A, 17 A, 18 A, 800 mA |
| Number of Outputs | 6 |
| Length | 150mm |
| Width | 81.5mm |
| Depth | 40.5mm |
| Load Regulation | ±5% |
| Line Regulation | ±1% |
| Better World Product | Yes |
| Better World Verification | 80 Plus Bronze |
| Series | SSP |
| Standards Met | BSMI, CB, CCC, CE, CUL, FCC, RCM, TUV |
| Power Signal Conversion Type | AC-DC |
| Input Frequency Range | 47 → 63Hz |
