Phoenix Contact PTPOWER Series Terminal Block Connector, 1-Way, 10AWG, 26 AWG Wire, 32A Screw
- RS Stock No.:
- 216-3464
- Mfr. Part No.:
- 3047112
- Brand:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 216-3464
- Mfr. Part No.:
- 3047112
- Brand:
- Phoenix Contact
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Terminal Block Connector | |
| Number of Ways | 1 | |
| Current | 32A | |
| Wire Size | 10, 26AWG | |
| Mount Type | DIN Rail | |
| Fused | No | |
| Material | Polyamide | |
| Contact Material | Polyamide | |
| Pitch | 6.2mm | |
| Voltage | 1000V | |
| Wire Protection | No | |
| Cable CSA | 0.14, 6mm² | |
| Series | PTPOWER | |
| Colour | Grey | |
| Gender | Female | |
| Termination Type | Screw | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | 130°C | |
| Enclosed | No | |
| Hazardous Area Certification | No | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Terminal Block Connector | ||
Number of Ways 1 | ||
Current 32A | ||
Wire Size 10, 26AWG | ||
Mount Type DIN Rail | ||
Fused No | ||
Material Polyamide | ||
Contact Material Polyamide | ||
Pitch 6.2mm | ||
Voltage 1000V | ||
Wire Protection No | ||
Cable CSA 0.14, 6mm² | ||
Series PTPOWER | ||
Colour Grey | ||
Gender Female | ||
Termination Type Screw | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature 130°C | ||
Enclosed No | ||
Hazardous Area Certification No | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- PL

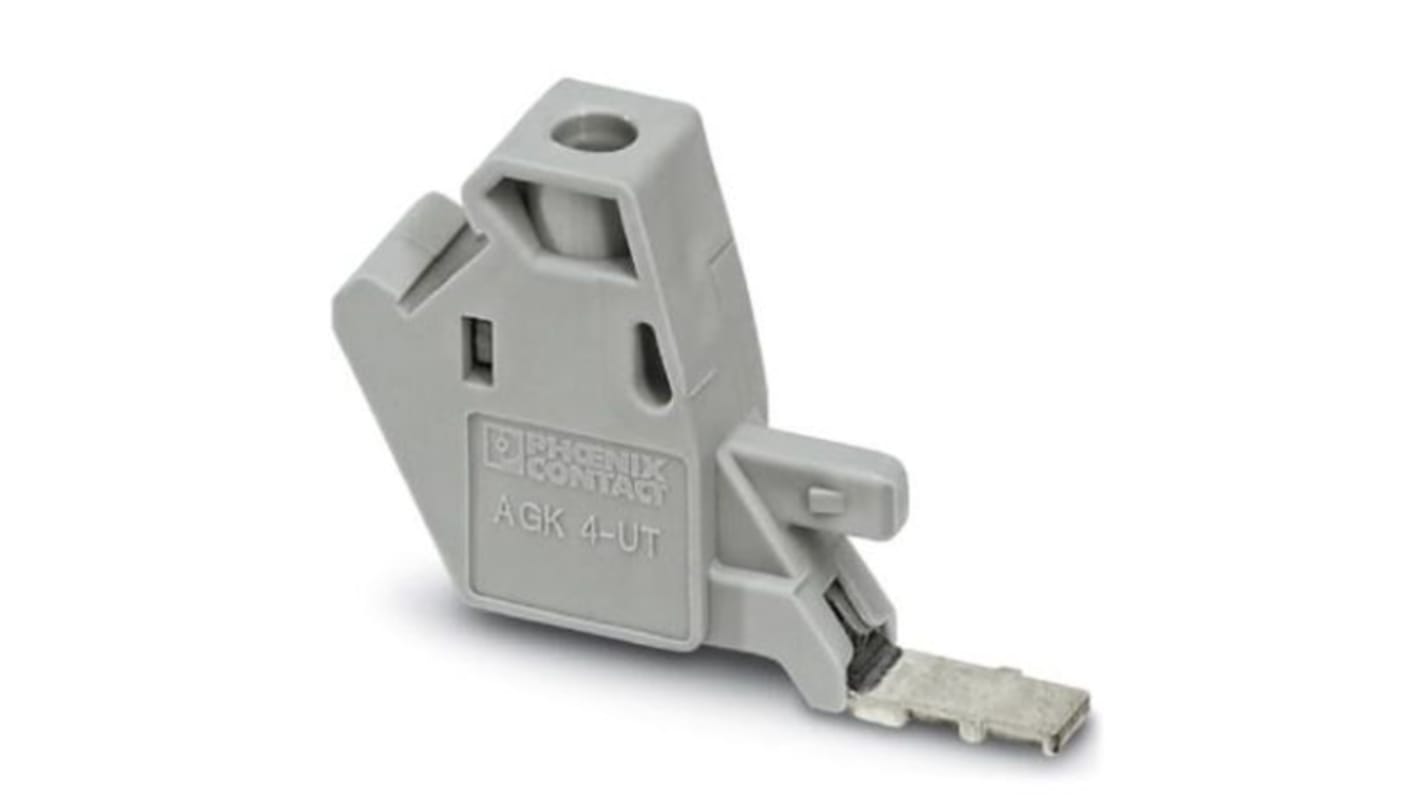

The Phoenix pick off terminal block with 0.14-6 mm² cross section. It has PA as insulating material and grey in colour. The block has screw connection.
Overvoltage category III
Insulating material group I
