RS PRO Non-Fused Terminal Block, 3-Way, 2.5 mm² Wire, 16A Screw

RS Stock No.:: 495-6288
Brand:: RS PRO

RS PRO Non-Fused Terminal Block, 3-Way, 2.5 mm² Wire, 16A Screw

Bulk discount available

Subtotal (1 pack of 5 units)*

$38.41

(exc. GST)

$44.17

(inc. GST)

FREE delivery for orders over $60.00 ex GST

In Stock

Plus 5 unit(s) shipping from 09 March 2026
Plus 50 unit(s) shipping from 21 May 2026
Plus 25 unit(s) shipping from 29 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
5 - 245	$7.682	$38.41
250 - 1245	$7.372	$36.86
1250 +	$6.07	$30.35

*price indicative

RS Stock No.:: 495-6288
Brand:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Non-Fused Terminal Block
	Number of Ways	3
	Current	16A
	Wire Size	2.5 mm²
	Mount Type	Cable
	Fused	No
	Contact Material	Brass
	Material	Nylon
	Voltage	400 V
	Wire Protection	No
	Colour	Brown, Black
	Cable CSA	2.5 mm²
	Termination Type	Screw
	Gender	Male
	Maximum Operating Temperature	125°C
	Enclosed	No
	Hazardous Area Certification	No
	Standards/Approvals	No
	Contact Plating	Tin

	Select all
	Brand RS PRO
	Product Type Non-Fused Terminal Block
	Number of Ways 3
	Current 16A
	Wire Size 2.5 mm²
	Mount Type Cable
	Fused No
	Contact Material Brass
	Material Nylon
	Voltage 400 V
	Wire Protection No
	Colour Brown, Black
	Cable CSA 2.5 mm²
	Termination Type Screw
	Gender Male
	Maximum Operating Temperature 125°C
	Enclosed No
	Hazardous Area Certification No
	Standards/Approvals No
	Contact Plating Tin

COO (Country of Origin):: IT

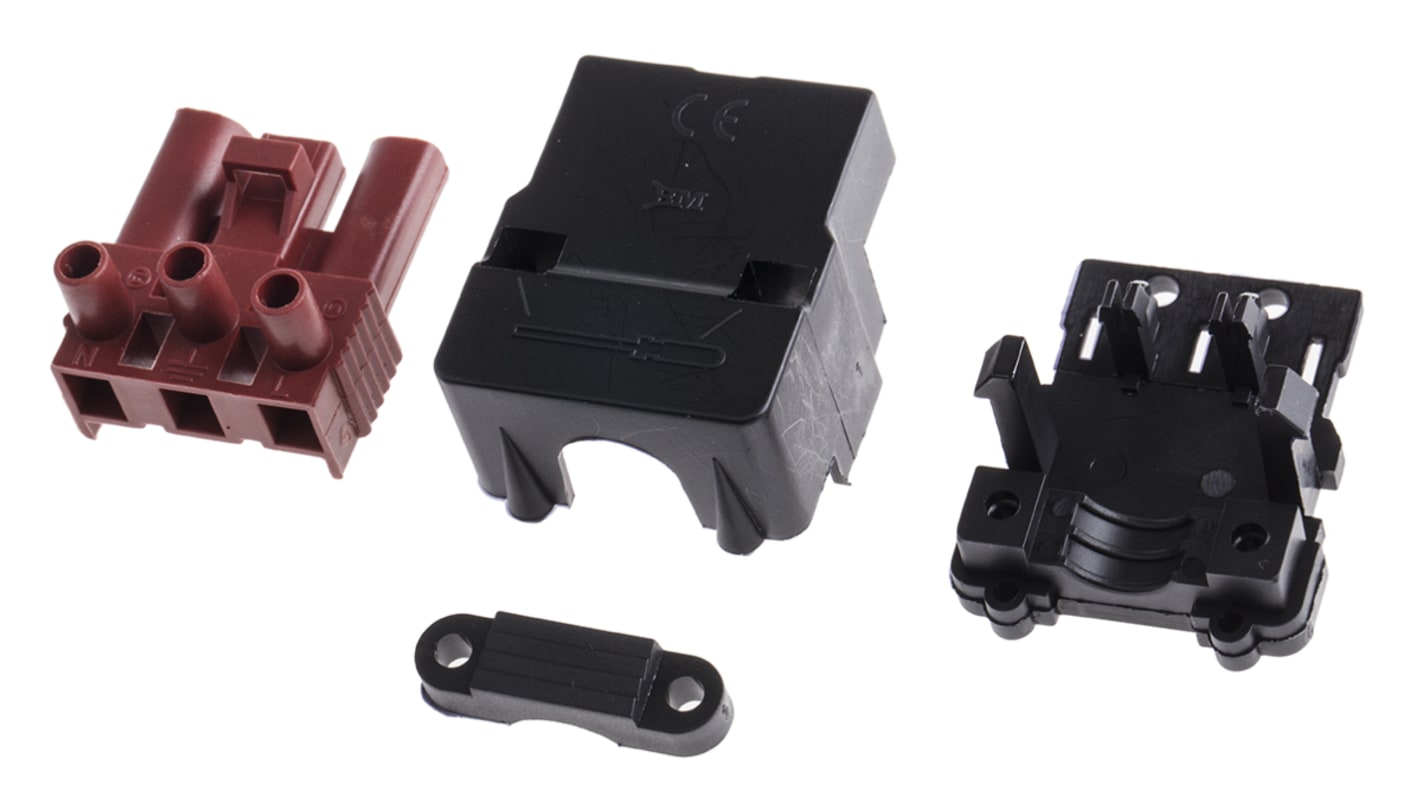

Disconnectable Terminal Block Connector, Plastic

Disconnectable terminal block connector, available in 2 and 3 pole in a choice of either brown or white. Rated at 400V, 16A

They are held securely together with the arm lock mechanism and the polarised housing prevents mismatching of the plugs

Plastic Two Part

Terminal blocks with a plug/socket arrangement which allow the block to be separated into two halves, isolating the plug strip without the need to remove each connection individually.

Note

Both a Socket and Plug terminal block of the same number of ways are required to construct a mated pair.

Approvals

IMQ, DEMKO, SEMKO, NEMKO, FIMKO
