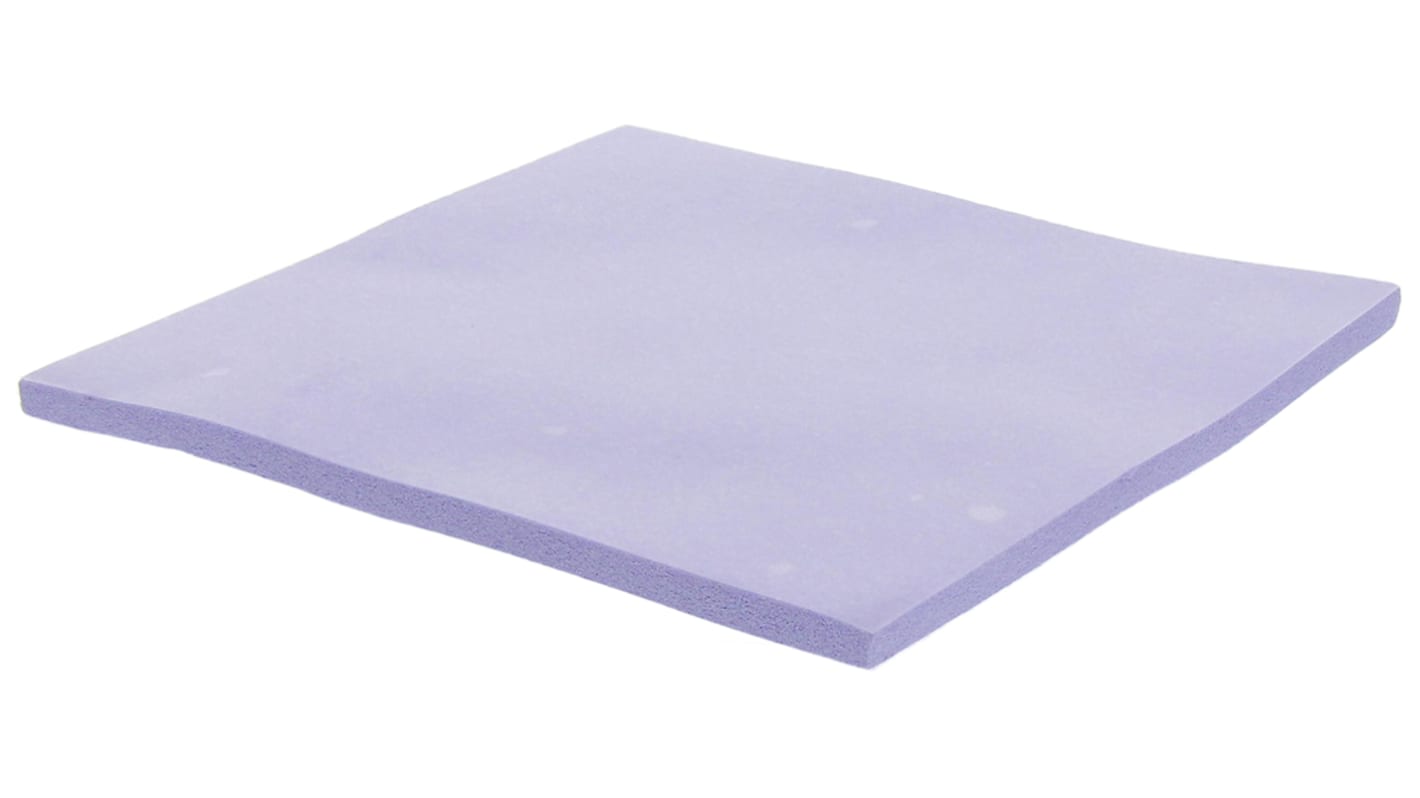

Laird Self-Adhesive Thermal Interface Sheet, 4mm Thick, 3W/m·K, Boron Nitride Filled Silicone Elastomer, 100 x 100mm
- RS Stock No.:
- 446-481
- Mfr. Part No.:
- U021041-24-U1
- Brand:
- Laird
11 in Global stock for delivery within 7 working day (+3 days for regional areas).
23 in Global stock for delivery within 7 working day (+3 days for regional areas).
Added
Price (ex. GST) Each
$116.62
(exc. GST)
$134.11
(inc. GST)
| Units | Per unit |
| 1 - 99 | $116.62 |
| 100 - 249 | $114.67 |
| 250 - 499 | $112.78 |
| 500 + | $110.92 |
- RS Stock No.:
- 446-481
- Mfr. Part No.:
- U021041-24-U1
- Brand:
- Laird
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details
T-flex 600 & 6000
T-flex 600 Series™ is an exceptionally soft, highly compressible, highly conductive gap filling interface pad. Its outstanding properties are the result of a proprietary boron nitride filler in the composition. While extremely soft, T-flex 600 recovers to more than 90% of its original thickness after compression under low pressure. It is naturally tacky and requires no additional adhesive coating that could inhibit thermal performance. It is electrically insulating, stable from -45°C to 200°C and meets UL 94V0 rating.
Very high compressibility for low stress applications
Naturally tacky
Square package outline
Thermal conductivity 3.0 W/mK
Breakdown voltage > 5,000 Vac
Operating temperature -40 → 160°C
Naturally tacky
Square package outline
Thermal conductivity 3.0 W/mK
Breakdown voltage > 5,000 Vac
Operating temperature -40 → 160°C
Approvals
UL
Specifications
Attribute | Value |
|---|---|
| Dimensions | 100 x 100mm |
| Thickness | 4mm |
| Length | 100mm |
| Width | 100mm |
| Thermal Conductivity | 3W/m·K |
| Material | Boron Nitride Filled Silicone Elastomer |
| Self-Adhesive | Yes |
| Minimum Operating Temperature | -45°C |
| Maximum Operating Temperature | +200°C |
| Hardness | Shore OO 25 |
| Operating Temperature Range | -45 → +200 °C |
