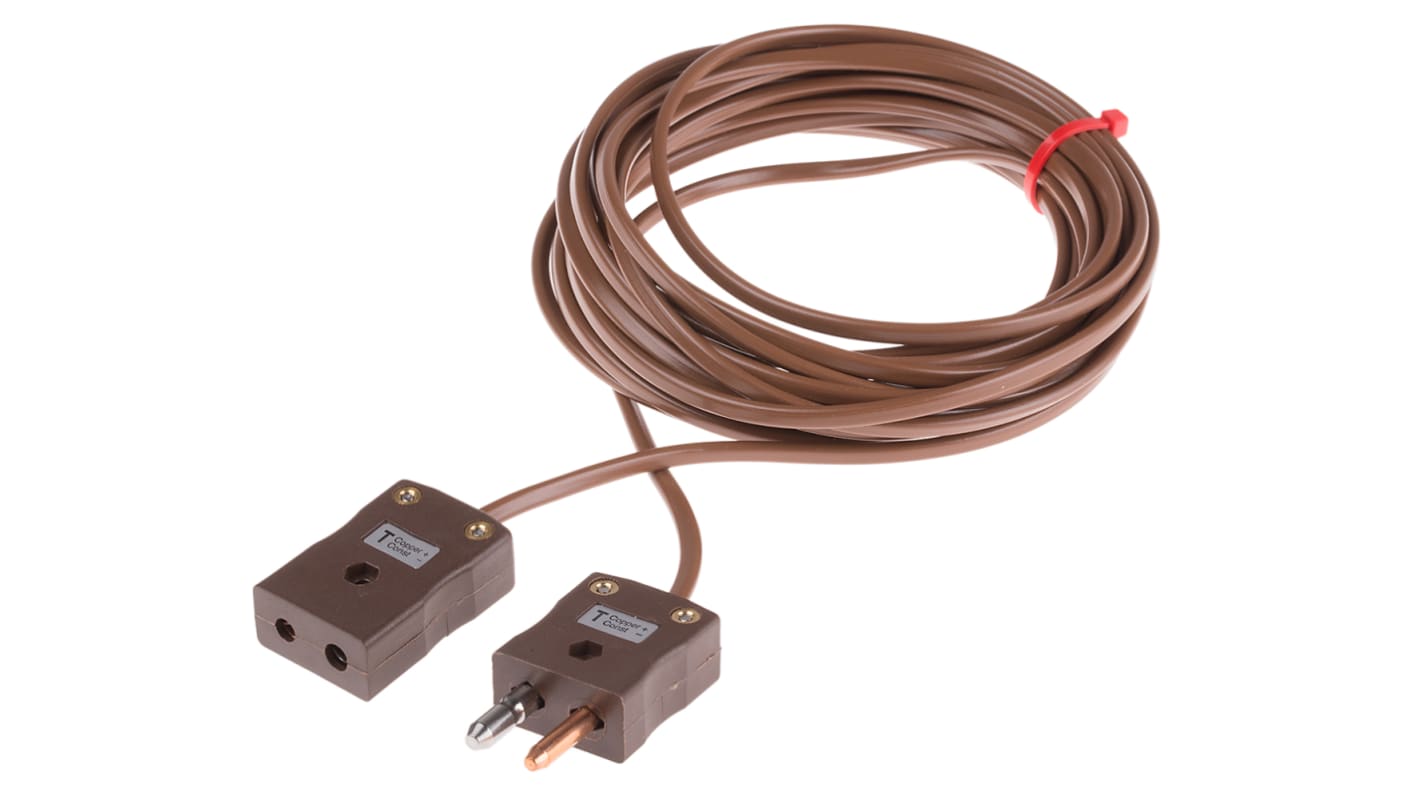

RS PRO Type T Extension Cable, 5m, PVC Insulation, +220°C Max, 7/0.2mm
- RS Stock No.:
- 768-6642
- Brand:
- RS PRO
On back order for despatch 07/05/2024, delivery within 7 working days from despatch date.
Added
Price (ex. GST) Each
$79.31
(exc. GST)
$91.21
(inc. GST)
| Units | Per unit |
| 1 - 14 | $79.31 |
| 15 - 74 | $78.33 |
| 75 + | $64.47 |
- RS Stock No.:
- 768-6642
- Brand:
- RS PRO
Legislation and Compliance
Product Details
Thermocouple Extensions Leads
A range of thermocouple extension leads in types K, J, T and N available with either a miniature or standard IEC connector. The thermocouple extension leads are available in 2 m, 5 m and 10 m lengths.
Cable Construction:
PVC insulated cable
IEC colour coded
Laid flat, side by side & PVC sheathed
Insulation rating -10 → 105 °C
IEC colour coded
Laid flat, side by side & PVC sheathed
Insulation rating -10 → 105 °C
Miniature connector (flat plug pins) or standard connector (solid, round plug pins) versions available
Contacts are polarised to prevent incorrect connection
Contacts are polarised to prevent incorrect connection
Specifications
Attribute | Value |
|---|---|
| Insulation Material | PVC |
| Length | 5m |
| Maximum Operating Temperature | +220°C |
| Thermocouple Type | T |
| Core Strands | 7/0.2mm |
| Cable Shape | Multicore |
| Number of Strands | 2 |
| Standards Met | IEC, RoHS Compliant |
