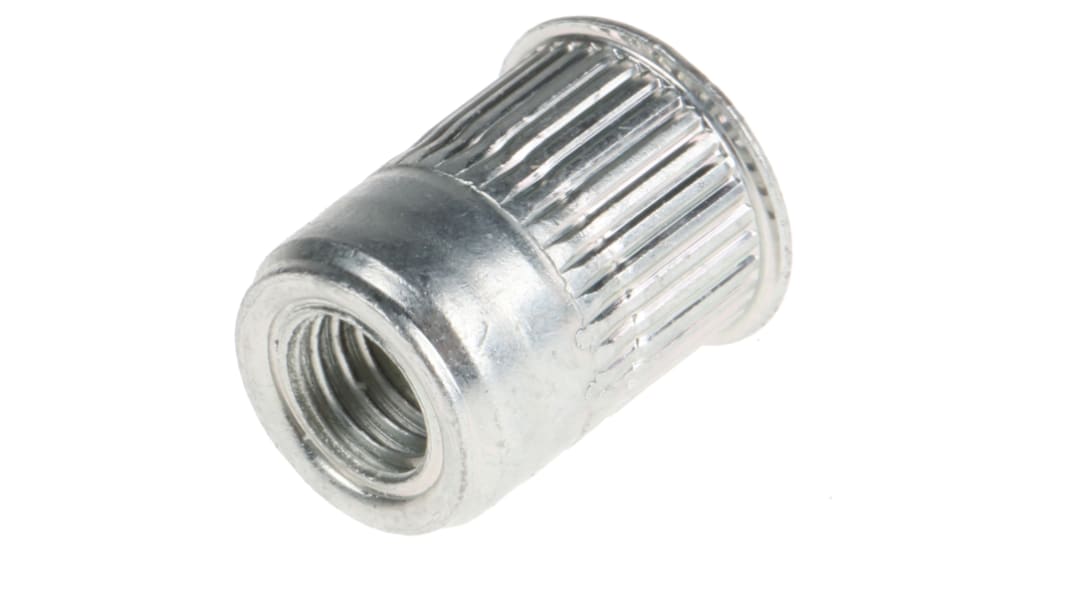

AVK Plain, M8 Threaded Insert, 15.11mm diameter 13.5mm Depth 11.94mm
- RS Stock No.:
- 194-382
- Manufacturer:
- AVK
View all Threaded Inserts
50 In stock for delivery within 7 working day(s)
Price (ex. GST) 1 Bag of 50
Was $41.70
You pay
$33.36
(exc. GST)
$38.36
(inc. GST)
| Bag(s) | Per Bag | Per unit* |
| 1 + | $33.36 | $0.667 |
| *price indicative | ||
- RS Stock No.:
- 194-382
- Manufacturer:
- AVK
- COO (Country of Origin):
- US
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
AVK™ Inserts
Threaded inserts M4, M5, M6 can be fixed using the AVK™ tool contained in kit Stock no. 194-310
Small flanged low-profile-head version ideal for near-flush requirements
Larger flanged version can be used with out-of-round holes
Small flanged low-profile-head version ideal for near-flush requirements
Larger flanged version can be used with out-of-round holes
Clinchnuts & Thread Inserts
Specifications
| Attribute | Value |
| Thread Size | M8 |
| Flange Diameter | 15.11mm |
| Fixing Hole Diameter | 13.5mm |
| Body Outside Diameter | 13.46mm |
| Body Depth | 11.94mm |
| Finish | Plain |
| Thickness of Material Maximum | 3.8mm |
| Thickness of Material Minimum | 0.7mm |
