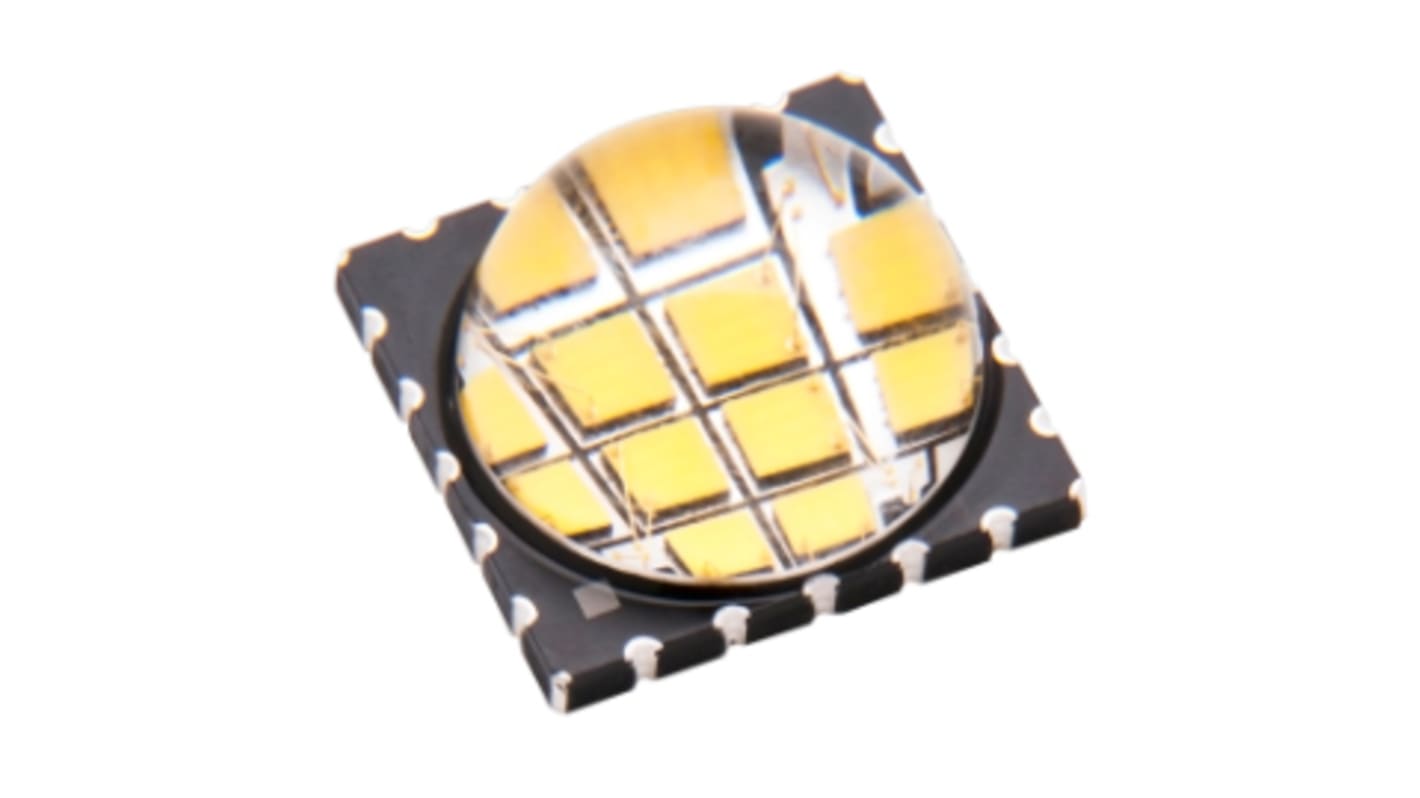

    LZC-70UB00-00U5 LedEngin Inc, LZ Series 12 UV LED, 395nm 12W 115 °, 24-Pin Surface Mount package

    RS Stock No.:
    171-8647
    Mfr. Part No.:
    LZC-70UB00-00U5
    Manufacturer:
    LedEngin Inc
    LedEngin Inc
    View all UV LEDs
    Available for back order.
    Add to Basket
    units

    Added

    Price (ex. GST) Each

    $193.21

    (exc. GST)

    $222.19

    (inc. GST)

    unitsPer unit
    1 - 2$193.21
    3 - 5$187.44
    6 +$183.67
    RS Stock No.:
    171-8647
    Mfr. Part No.:
    LZC-70UB00-00U5
    Manufacturer:
    LedEngin Inc
    COO (Country of Origin):
    MY

    Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    MY

    Product Details

    The LZC-series emitter is rated for 40W power handling in an ultra-compact package. With a small 9.0mm x 9.0mm footprint, this package provides exceptional radiant flux density. The patented design has unparalleled thermal and optical performance. The high quality materials used in the package are chosen to optimize Radiant Flux and minimize stresses which results in monumental reliability and radiant flux maintenance. The robust product design thrives in outdoor applications with high ambient temperatures and high humidity.


    Ultra-high flux output 385-410nm surface mount ceramic VIOLET LED package with integrated glass lens
    5nm wavelength bins
    Small high density foot print – 9.0mm x 9.0mm
    Exceptionally low Thermal Resistance (0.7°C/W)
    Electrically neutral thermal slug
    Lead (Pb) free
    Emitter available on MCPCB (optional)
    Typical Applications
    Curing
    Sterilization
    Medical
    Currency Verification
    Fluorescence Microscopy
    Inspection of dyes, rodent and animal contamination,
    Leak detection
    Forensics



    Specifications

    AttributeValue
    Number of LEDs12
    Peak Wavelength395nm
    Radiant Flux12W
    Viewing Angle115 °
    Lens ShapeDome
    Number of Pins24
    Mounting TypeSurface Mount
    Height5.4mm
    Length9mm
    Width9mm
    Dimensions9 x 9 x 5.4mm
    SeriesLZ
