Variable Resistors

Browse our wide range of variable resistors including potentiometers, rheostats and thermistors from market leading electronics brands including Vishay, Bourns, EPCOS and RS Pro.

What are variable resistors and how do they work?

Variable resistors are electrical components that give you control over the current flow through an electric circuit. Variable resistors can be used in a variety of different types of devices, including the volume and gain control on electric instruments such as guitars and basses. The Variable resistors have a maximum and minimum value which can alter the current. Variable resistors are extremely important, without them you cannot control your circuit.

What does a variable resistor do in a circuit?

A variable resistor's role in a circuit is to allow the amount of resistance to be changed. When resistance decreases the flow of the current increases. There are different types of variable resistors that can be used for different functions and environments.

Types of resistors

The three most common types of variable resistors are:

  • Potentiometers The most common type of variable resistor is the potentiometers. The potentiometer can be used as a voltage regulator by introducing a variable amount of resistance into a circuit or as a means of adjusting the power in a circuit. Potentiometers can also be known as “pot” or, more specifically, slider pot, trimmer pot or thumbwheel pot.
  • Rheostat A rheostat is a variable resistor which is used to control current within an electrical circuit. They can control the resistance without interrupting it. Unlike the Potentiometer the Rheostat only uses 2 leads. A connection is made to one end of the resistive element and the other connection is made to the wiper end of the variable resistor. Rheostats are commonly used in motor control.

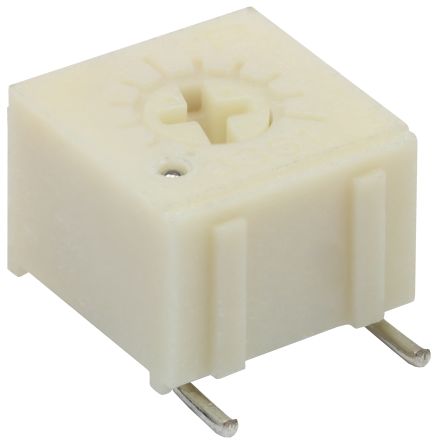

  • Trimmer Resistors Unlike other resistors, a trimmer resistor is a smaller component that is used to be placed within your circuit and not adjusted again. They are also known as trimpots.

Other types of variable resistors include:

  • Ceramic Transient Voltage Suppressors
  • Metal Oxide Varistors
  • Potentiometer Accessories
  • Potentiometer Knob
  • Potentiometer Mounting Nuts
  • Rheostat Dials
  • Thermistors
  • Trimmer Resistor Adjustment Tools
  • Trimmer Resistor Mount Adapters
Related Products
Brought to you by Alps, the RK09K and ...
Description:
Brought to you by Alps, the RK09K and RK09D series of potentiometers features convenient snap in mounting and an insulated shaft. These compact type potentiometers are ideal for designing high density sets, and are available in a vertical or horizontal ...
Mechanically-assembled potentiometers and dial knobs display10 turns with ...
Description:
Mechanically-assembled potentiometers and dial knobs display10 turns with a reading accuracy of 1//500 turns. Flush mounted with solder terminal outputs, these secure and stable potentiometeres adn dial knobs have a service life of 250,000 rotations. • 4 available values.• Rotation ...
The P16S series of panel mounted potentiometers with ...
Description:
The P16S series of panel mounted potentiometers with a switch, consisting of a knob driving and incorporating a cermet potentiometer. This unique design minimise the amount space required behind the panel to accommodate the mounting hardware and terminals. Applications for ...
The P16 is a revolutionary concept in panel ...
Description:
The P16 is a revolutionary concept in panel mounted potentiometers. This unique design consists of a knob driving and incorporating a cermet potentiometer. Only the mounting hardware and terminals are situated on the back side of the panel reducing to ...
