BeldenYE00421 Series 2 Core Line level Low Voltage signal Cable, 0.75 mm² CSA, 5.64mm od, 152m, Chrome

RS Stock No.:: 823-099
Distrelec Article No.:: 300-84-993
Mfr. Part No.:: 8760.01152
Brand:: Belden

BeldenYE00421 Series 2 Core Line level Low Voltage signal Cable, 0.75 mm² CSA, 5.64mm od, 152m, Chrome

Subtotal (1 reel of 152 metres)*

$1,158.39

(exc. GST)

$1,332.15

(inc. GST)

FREE delivery for orders over $60.00 ex GST

In Stock

Plus 6 unit(s) shipping from 05 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	$1,158.39	$7.621

*price indicative

RS Stock No.:: 823-099
Distrelec Article No.:: 300-84-993
Mfr. Part No.:: 8760.01152
Brand:: Belden

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Belden
	Audio Cable Type	Line level Low Voltage signal Cable
	Number of Cores	2
	Cross Sectional Area	0.75 mm²
	Insulation Material	Polyethylene
	Outer Diameter	5.64mm
	Length	152m
	CPR Certification	Eca
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	+60°C
	Sheath Colour	Chrome
	American Wire Gauge	18 AWG
	Series	YE00421
	Shielded/Unshielded	Shielded
	Number of Strands	16
	Sheath Material	PVC
	Conductor Strand Type	Stranded
	Core Strands	16/30
	Current Rating	7.2 A per conductor @ 25°C
	Capacitance Core To Core	27.2pF/ft
	Drain Wire	Yes
	Voltage Rating	300 V
	Conductor Resistance	6.5 DCR @ 20°C (Ω/1000 ft)
	Cable Shape	Twisted Pair
	Standards Met	UL
	Conductor Material	Tinned Copper

	Select all
	Brand Belden
	Audio Cable Type Line level Low Voltage signal Cable
	Number of Cores 2
	Cross Sectional Area 0.75 mm²
	Insulation Material Polyethylene
	Outer Diameter 5.64mm
	Length 152m
	CPR Certification Eca
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature +60°C
	Sheath Colour Chrome
	American Wire Gauge 18 AWG
	Series YE00421
	Shielded/Unshielded Shielded
	Number of Strands 16
	Sheath Material PVC
	Conductor Strand Type Stranded
	Core Strands 16/30
	Current Rating 7.2 A per conductor @ 25°C
	Capacitance Core To Core 27.2pF/ft
	Drain Wire Yes
	Voltage Rating 300 V
	Conductor Resistance 6.5 DCR @ 20°C (Ω/1000 ft)
	Cable Shape Twisted Pair
	Standards Met UL
	Conductor Material Tinned Copper

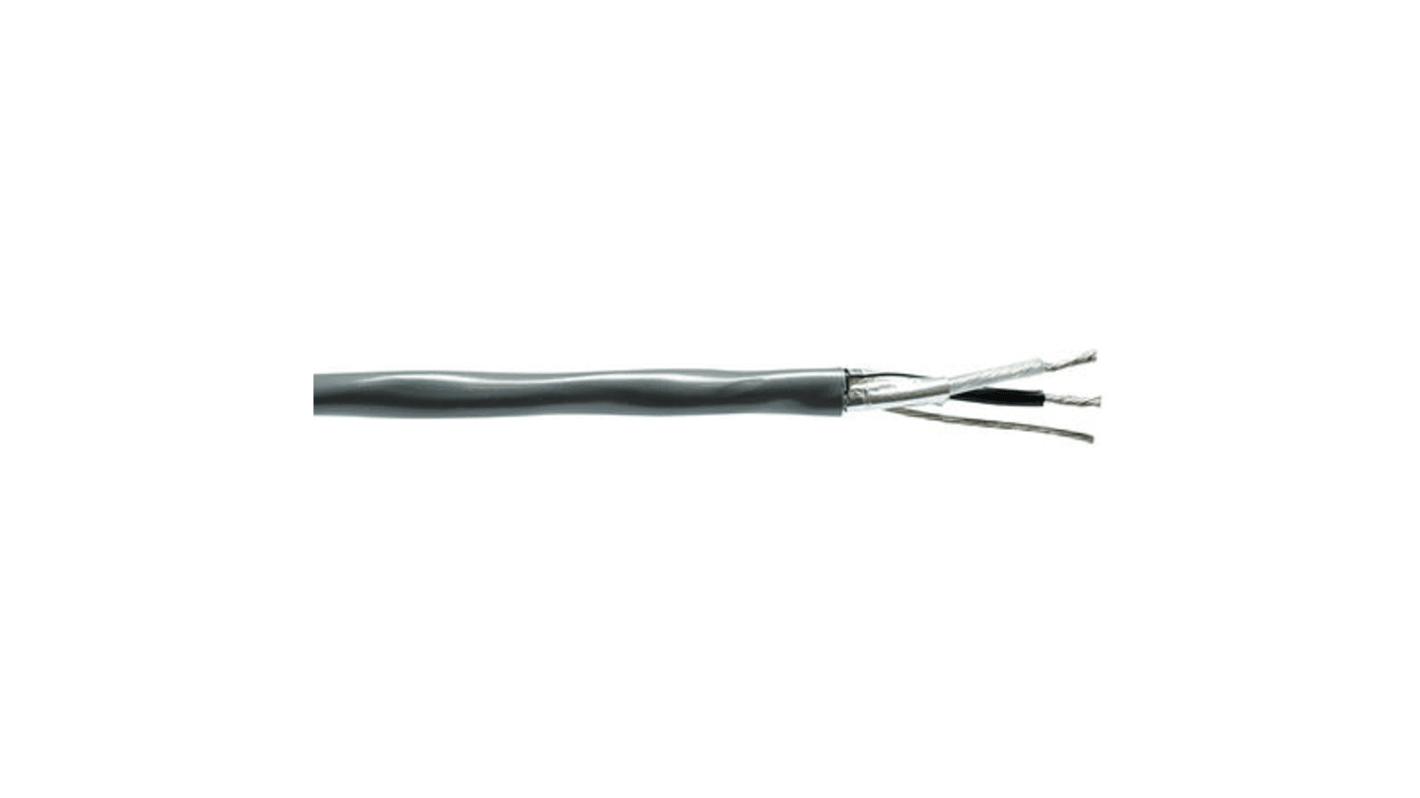

Belden Single Twisted Pair Overall Shielded Cable

If you need a reliable cable for instrumentation, control, and computer applications, try the single twisted pair shielded cables from Belden.

These versatile cables use PE (Polyethylene) insulated stranded conductors, ensuring excellent insulation as PE provides low dielectric loss and high dielectric strength. They are non-plenum and are suitable for indoor use.

These Belden cables also feature the patented overall Beldfoil® shielding technology, a highly effective screen constructed with aluminium/polyester foil. It is lightweight, thin, and flexible whilst remaining strong, for optimal shield coverage.

The twisted pair design helps minimise external interference with data transmission, as the conductors carry signals in opposite directions to negate crosstalk.

Features and Benefits:

• Single pair polyethylene insulated stranded conductors
• Superior coverage and extra insulation due to overall Beldfoil® aluminium-polyester shield
• 120.4101 N max. recommended pulling tension
• UL Flame test: UL 1685 UL loading

Applications:

Instrumentation
Control Systems
Computing

Belden is an industry leader worldwide in designing and manufacturing highly efficient and reliable cabling, networking and connectivity products. Their products are tested to strict quality standards to deliver safe, high-performance signal transmission solutions for every application.

What are the benefits of shielded cabling?

Cables which are screened, or shielded, are better protected again electromagnetic interference (EMI) than unshielded versions. EMI refers to electrical noise which is conducted or radiated, and it can negatively affect the functioning of devices and equipment. Screening reduces crosstalk between cables (signal leakage), ensuring higher signal integrity.

Standards

UL2092
