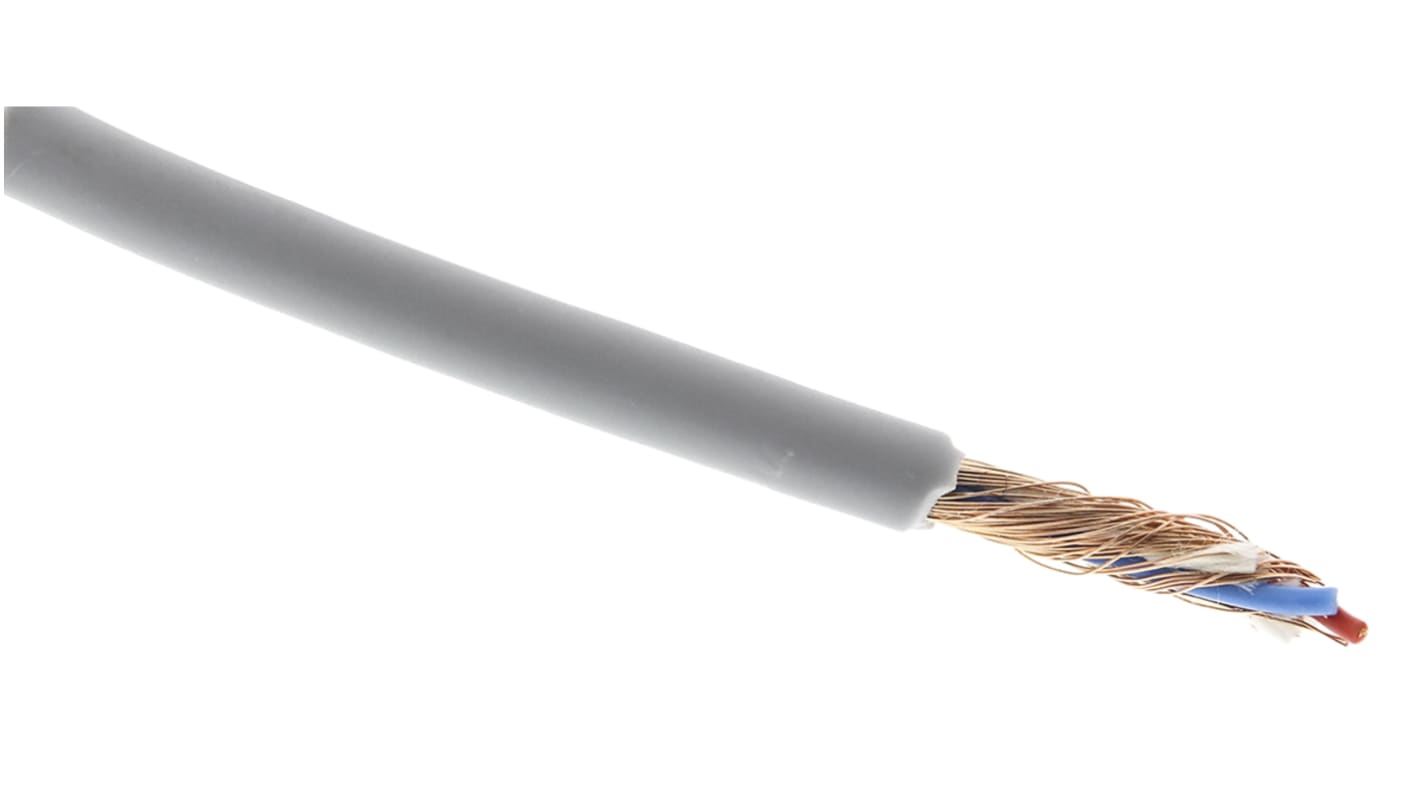

    RS PRO 2 Core Microphone Cable, 0.05 mm² CSA Screened, 3.1mm od, 25m, Grey

    Subtotal (1 reel of 25 metres)**

    $16.19

    (exc. GST)

    $18.62

    (inc. GST)

    Add to Basket
    Select or type quantity
    Available for back order.*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Reel(s)
    Per Reel
    Per Metre**
    1 +$16.19$0.648

    **price indicative

    RS Stock No.:
    749-2541
    Brand:
    RS PRO
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    RS PRO

    Audio Cable Type

    Microphone Cable

    Number of Cores

    2

    Cross Sectional Area

    0.05 mm²

    Screened/Unscreened

    Screened

    Insulation Material

    PVC

    Outer Diameter

    3.1mm

    Length

    25m

    Minimum Operating Temperature

    -20°C

    Maximum Operating Temperature

    +60°C

    Sheath Colour

    Grey

    American Wire Gauge

    30 AWG

    Conductor Resistance

    340 Ω/km

    Size of Strands

    0.3 mm

    Sheath Material

    PVC

    Voltage Rating

    30 V

    Conductor Material

    Bare Copper

    Core Strands

    7/0.3 mm

    Filler Material

    Cotton

    Cable Shape

    Multicore

    Number of Strands

    7

    Screen Type

    Lap

    Conductor Strand Type

    Stranded
