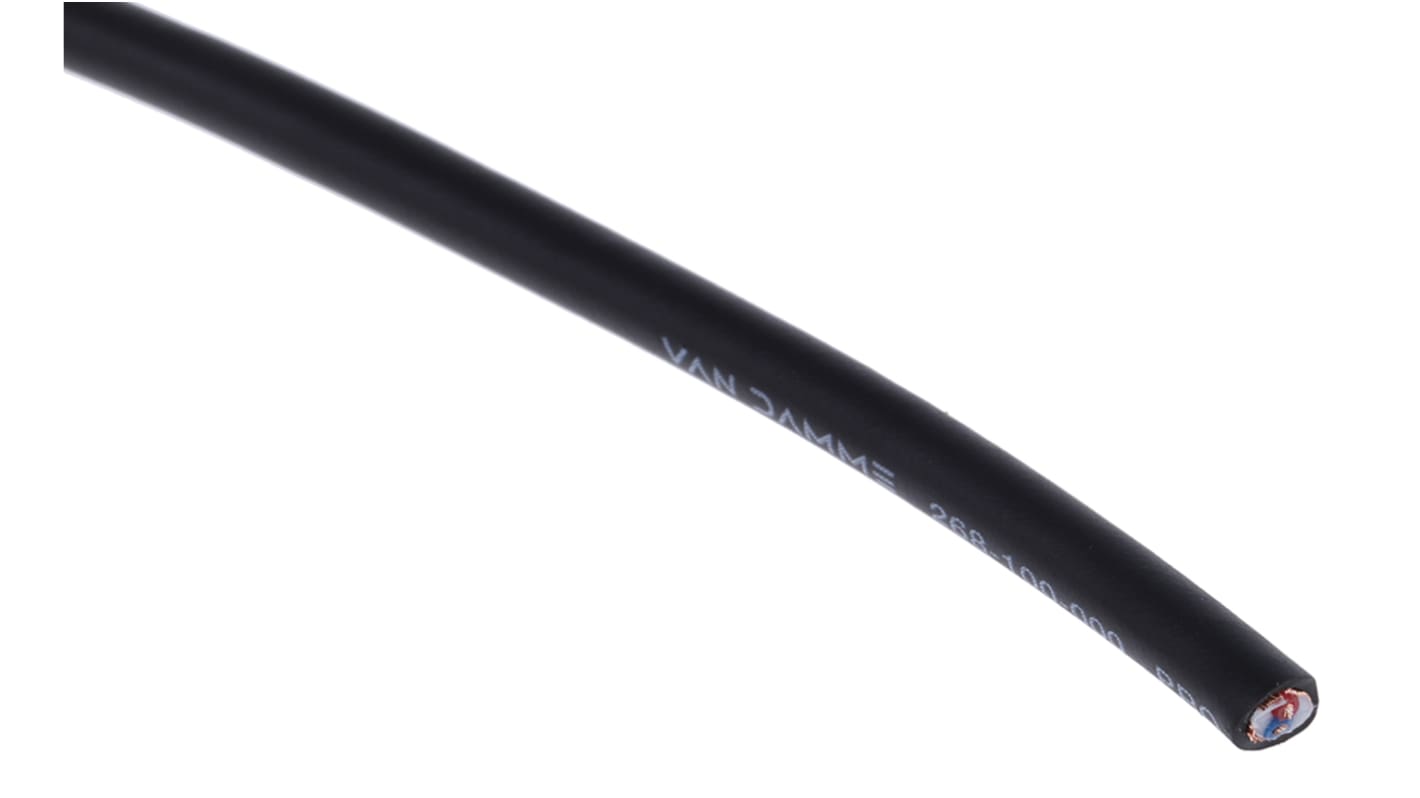

Van Damme 268-100 Series 2 Core Screened, 3.6 mm OD, 100 m, Black
- RS Stock No.:
- 768-2139
- Mfr. Part No.:
- 268-100-000
- Brand:
- Van Damme
Subtotal (1 reel of 100 metres)*
$957.64
(exc. GST)
$1,101.29
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 12 unit(s) ready to ship from another location
- Plus 6 unit(s) shipping from 15 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
- RS Stock No.:
- 768-2139
- Mfr. Part No.:
- 268-100-000
- Brand:
- Van Damme
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Van Damme | |
| Product Type | Audio Cable | |
| Number of Cores | 2 | |
| Screened/Unscreened | Screened | |
| Outside Diameter | 3.6mm | |
| Cable Length | 100m | |
| Conductor Type | Stranded | |
| Maximum Operating Temperature | 120°C | |
| Standards/Approvals | RoHS | |
| Jacket Colour | Black | |
| Jacket Material | Polyvinyl Chloride, Neoprene | |
| Voltage | 1000V | |
| Series | 268-100 | |
| Conductor Material | Copper | |
| Core Strands | 14 | |
| Number of Strands | 19 | |
| Select all | ||
|---|---|---|
Brand Van Damme | ||
Product Type Audio Cable | ||
Number of Cores 2 | ||
Screened/Unscreened Screened | ||
Outside Diameter 3.6mm | ||
Cable Length 100m | ||
Conductor Type Stranded | ||
Maximum Operating Temperature 120°C | ||
Standards/Approvals RoHS | ||
Jacket Colour Black | ||
Jacket Material Polyvinyl Chloride, Neoprene | ||
Voltage 1000V | ||
Series 268-100 | ||
Conductor Material Copper | ||
Core Strands 14 | ||
Number of Strands 19 | ||
- COO (Country of Origin):
- TW
Pro Grade Classic XKE Super Flexible 1 pair install cable
Super Flexible 1 pair is a 3.60mm overall diameter cable sized to suit miniature microphone connectors, it is ideal for mic and line level analogue balanced audio applications.
Its helical spiral shield can withstand multiple flexing operations making it preferable to foil screened 1 pair for certain dynamic applications
