Molex, OBD-II Automotive Connector Female Black Panel Mount 16 Way Solder Termination 51115-1601
- RS Stock No.:
- 178-9365
- Distrelec Article No.:
- 304-57-393
- Mfr. Part No.:
- 51115-1601
- Brand:
- Molex

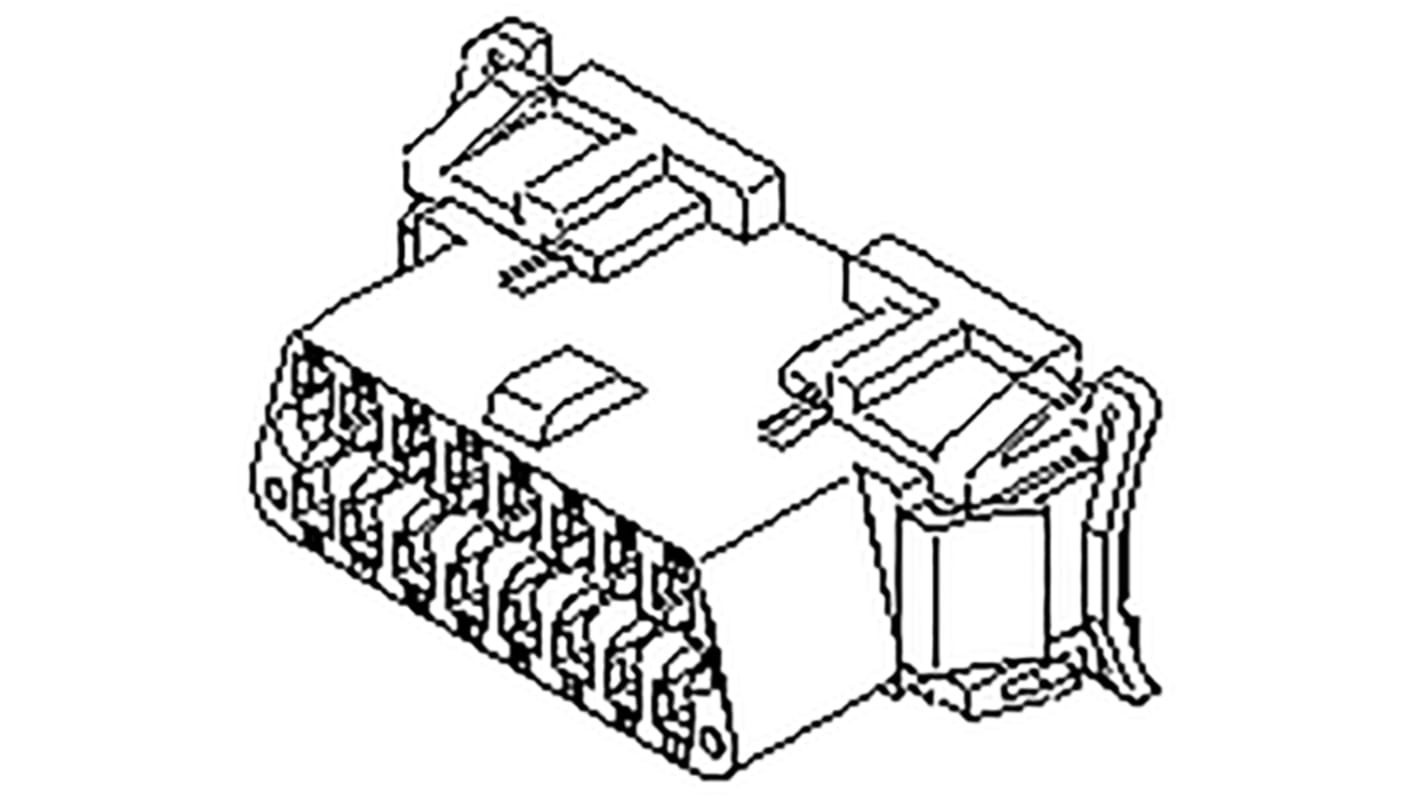

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 box of 360 units)*
$668.52
(exc. GST)
$768.96
(inc. GST)
Spend over $80.00 ex GST for FREE delivery
Temporarily out of stock
- Shipping from 16 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 360 - 360 | $1.857 | $668.52 |
| 720 - 1080 | $1.811 | $651.96 |
| 1440 + | $1.783 | $641.88 |
*price indicative
- RS Stock No.:
- 178-9365
- Distrelec Article No.:
- 304-57-393
- Mfr. Part No.:
- 51115-1601
- Brand:
- Molex
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | Automotive Connector | |
| Sub Type | Receptacle Housing | |
| Termination Type | Solder | |
| Number of Contacts | 16 | |
| Current | 6A | |
| Gender | Female | |
| Number of Rows | 2 | |
| Mount Type | Panel Mount | |
| Series | OBD-II | |
| Colour | Black | |
| Cord Included | No | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | REACH SVHC, EU RoHS | |
| Depth | 26.2mm | |
| Width | 51.4mm | |
| Height | 20.42mm | |
| Housing Material | Polyester | |
| Contact Material | Polyester | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type Automotive Connector | ||
Sub Type Receptacle Housing | ||
Termination Type Solder | ||
Number of Contacts 16 | ||
Current 6A | ||
Gender Female | ||
Number of Rows 2 | ||
Mount Type Panel Mount | ||
Series OBD-II | ||
Colour Black | ||
Cord Included No | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals REACH SVHC, EU RoHS | ||
Depth 26.2mm | ||
Width 51.4mm | ||
Height 20.42mm | ||
Housing Material Polyester | ||
Contact Material Polyester | ||
- COO (Country of Origin):
- KR
Molex OBD-II Automotive Connector Socket, 2 Rows, 16 Contacts - 51115 Series - 51115-1601
Mount this wire-to-wire receptacle housing from Molex directly onto an engine or motor panel for convenient access in your automotive or similar applications. It accommodates 16 contacts set in two equal rows and it's made of a tough but lightweight polyester resin that delivers long-lasting performance. Simply slide the plug into place to make a secure connection safe from debris and vibrations. An integrated locking system ensures a firm hold so transmissions won't suffer from disruption caused by vibration.
• Current rating of 6A (amperes) for standard use
• Wide operating temperatures range of -40°C to +85°C for effective performance in harsh conditions, including hot engine environments
• Compact dimensions of 51.4 (W) x 20.42 (H) x 26.2mm (D) to fit in limited spaces
Applications
• Automotive manufacturing
• Agricultural equipment
• Shipping industry
• Airline industry
What are the advantages of a solder termination?
You can make solder terminations with this automotive connector socket using a simple soldering kit, so there's no need for complex tools. It's a technique that makes reliable joins quickly and affordably.
