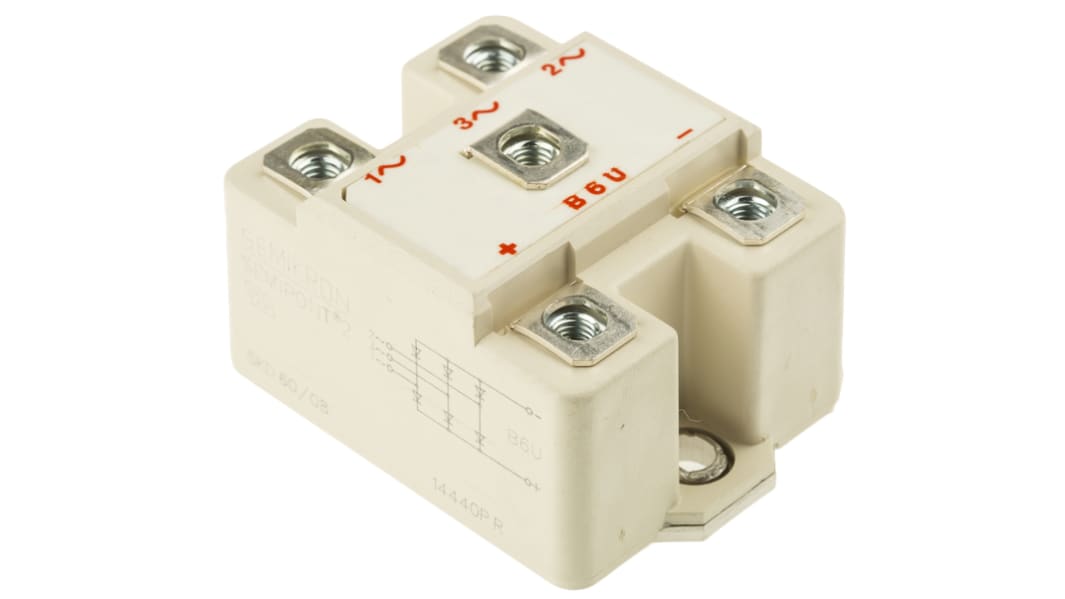

Semikron Danfoss Bridge Rectifier Module, 800 V 1 kA, 4-Pin Single
- RS Stock No.:
- 263-138
- Mfr. Part No.:
- SKD 60/08
- Brand:
- Semikron
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 263-138
- Mfr. Part No.:
- SKD 60/08
- Brand:
- Semikron
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Semikron | |
| Product Type | Bridge Rectifier Module | |
| Peak Reverse Repetitive Voltage Vrrm | 800V | |
| Mount Type | Panel Mount | |
| Package Type | SEMIPONT2 | |
| Pin Count | 4 | |
| Configuration | Single | |
| Maximum Operating Temperature | 125°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1kA | |
| Minimum Operating Temperature | -40°C | |
| Peak Forward Voltage Vf | 1.6V | |
| Height | 34mm | |
| Length | 65mm | |
| Peak Reverse Current Ir | 500μA | |
| Width | 48 mm | |
| Select all | ||
|---|---|---|
Brand Semikron | ||
Product Type Bridge Rectifier Module | ||
Peak Reverse Repetitive Voltage Vrrm 800V | ||
Mount Type Panel Mount | ||
Package Type SEMIPONT2 | ||
Pin Count 4 | ||
Configuration Single | ||
Maximum Operating Temperature 125°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 1kA | ||
Minimum Operating Temperature -40°C | ||
Peak Forward Voltage Vf 1.6V | ||
Height 34mm | ||
Length 65mm | ||
Peak Reverse Current Ir 500μA | ||
Width 48 mm | ||
Three Phase Bridge Rectifiers, SEMIPONT®2/3/4 Series
Three phase rectifiers for power supplies, variable frequency drives, DC motor field supplies
Robust plastic case with screw terminals
Isolated metal base plate
Easy chassis mounting
Bridge Rectifiers - Semikron
A Bridge Rectifier is a diode common application, known for converting an Alternating Current (AC) input into Direct Current a (DC) output. A diode bridge is an arrangement of four diodes in a bridge circuit configuration that provides the same polarity of output for either polarity of input.
Approvals
UL recognized E63532
