onsemi Bridge Rectifier, 1A, 600V, 4-Pin

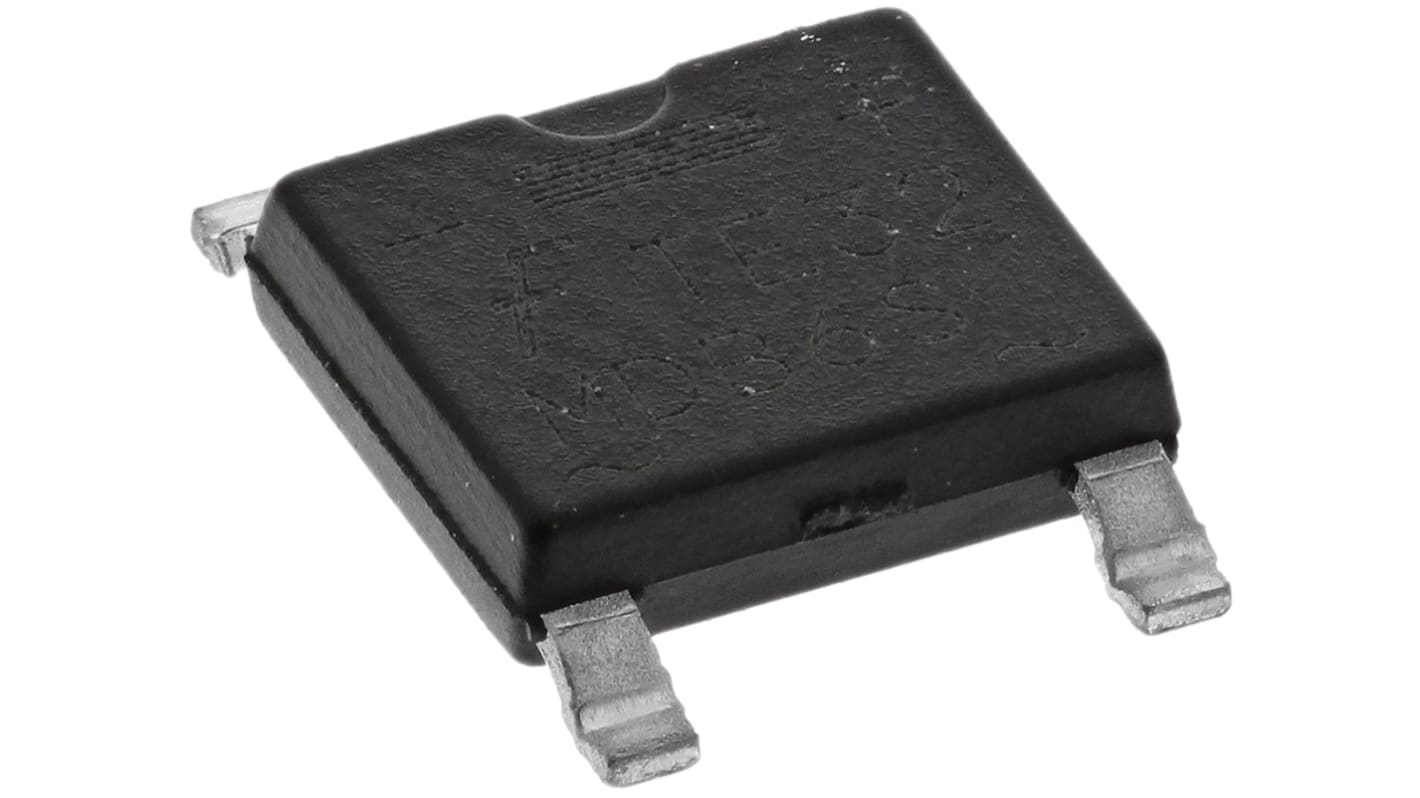

This image is representative of the product range

View all Bridge Rectifiers
Bulk discount available

Subtotal (1 pack of 25 units)*

$20.925

(exc. GST)

$24.075

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 50 unit(s) ready to ship from another location
  • Plus 575 unit(s) shipping from 31 December 2025
  • Plus 5,000 unit(s) shipping from 18 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
25 - 975$0.837$20.93
1000 - 1975$0.822$20.55
2000 +$0.806$20.15

*price indicative

Packaging Options:
RS Stock No.:
772-9339
Mfr. Part No.:
MDB6S
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Peak Average Forward Current

1A

Bridge Type

Single Phase

Peak Reverse Repetitive Voltage

600V

Mounting Type

Surface Mount

Package Type

MicroDIP

Pin Count

4

Configuration

Single

Peak Non-Repetitive Forward Surge Current

30A

Maximum Operating Temperature

+150 °C

Minimum Operating Temperature

-55 °C

Peak Forward Voltage

1.1V

Peak Reverse Current

10µA

Length

4.55mm

Dimensions

5.15 x 4.55 x 1.45mm

Height

1.45mm

Width

5.15mm

Bridge Rectifiers for PCB Surface Mount, MDBxS Series, Fairchild Semiconductor


Low Package Profile: 1.45mm (max.)
Requires Only 35mm² of Board Space
Ideal for Printed Circuit Board (PCB) reflow soldering

Approvals

UL, E352360
