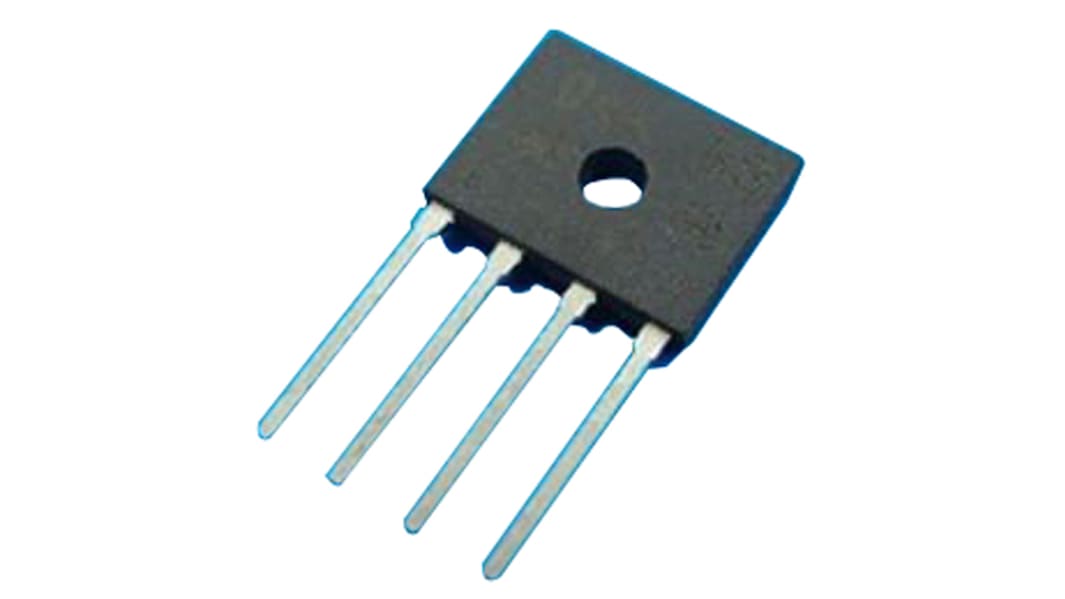

HY Electronic Corp Bridge Rectifier, 1 kV 90 A, 4-Pin Single
- RS Stock No.:
- 923-5343
- Mfr. Part No.:
- D3KB10
- Brand:
- HY Electronic Corp
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 923-5343
- Mfr. Part No.:
- D3KB10
- Brand:
- HY Electronic Corp
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HY Electronic Corp | |
| Product Type | Bridge Rectifier | |
| Peak Reverse Repetitive Voltage (Vrrm) | 1 kV | |
| Peak Non-Repetitive Forward Surge Current (Ifsm) | 90 A | |
| Pin Count | 4 | |
| Configuration | Single | |
| Automotive Standard | No | |
| Forward Current (If) | 3 A | |
| Height | 11.1 mm | |
| Length | 14.1 mm | |
| Maximum Operating Temperature | 150 °C | |
| Minimum Operating Temperature | -55 °C | |
| Mount Type | Through Hole | |
| Number of Phases | 1 | |
| Package Type | D-3K | |
| Peak Forward Voltage (Vf) | 1.05 V | |
| Peak Reverse Current (Ir) | 500 μA | |
| Series | D3K | |
| Standards/Approvals | No | |
| Width | 3.3 mm | |
| Select all | ||
|---|---|---|
Brand HY Electronic Corp | ||
Product Type Bridge Rectifier | ||
Peak Reverse Repetitive Voltage (Vrrm) 1 kV | ||
Peak Non-Repetitive Forward Surge Current (Ifsm) 90 A | ||
Pin Count 4 | ||
Configuration Single | ||
Automotive Standard No | ||
Forward Current (If) 3 A | ||
Height 11.1 mm | ||
Length 14.1 mm | ||
Maximum Operating Temperature 150 °C | ||
Minimum Operating Temperature -55 °C | ||
Mount Type Through Hole | ||
Number of Phases 1 | ||
Package Type D-3K | ||
Peak Forward Voltage (Vf) 1.05 V | ||
Peak Reverse Current (Ir) 500 μA | ||
Series D3K | ||
Standards/Approvals No | ||
Width 3.3 mm | ||
- COO (Country of Origin):
- CN
Bridge Rectifier - D2KB / D3KB / D4KB Series
HY Electronic (Cayman) Limited D2KB / D3KB and D4KB series are surface mount glass passivated bridge rectifiers. They have forward currents of 2 A, 3 A and 4 A with reverse voltage 600 V and 1000 V. Ideal for printed circuit board applications and can be mounted in any position.
Leads: Solderable MIL-STD 202E
High case dielectric strength
High surge current capability
Plastic case: UL-94 Class V-0
Polarity symbol markings on device
Bridge Rectifiers - HY Electronic (Cayman) Limited
