Microchip EVB-USB4715 Evaluation Kit USB4715 Evaluation Kit for EVB EVB-USB4715

View this category
Bulk discount available

Subtotal (1 unit)*

$521.86

(exc. GST)

$600.14

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4$521.86
5 +$504.64

*price indicative

RS Stock No.:
174-4239
Mfr. Part No.:
EVB-USB4715
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Kit Classification

Evaluation Kit

For Use With

EVB

Featured Device

USB4715

Kit Name

EVB-USB4715 Evaluation Kit

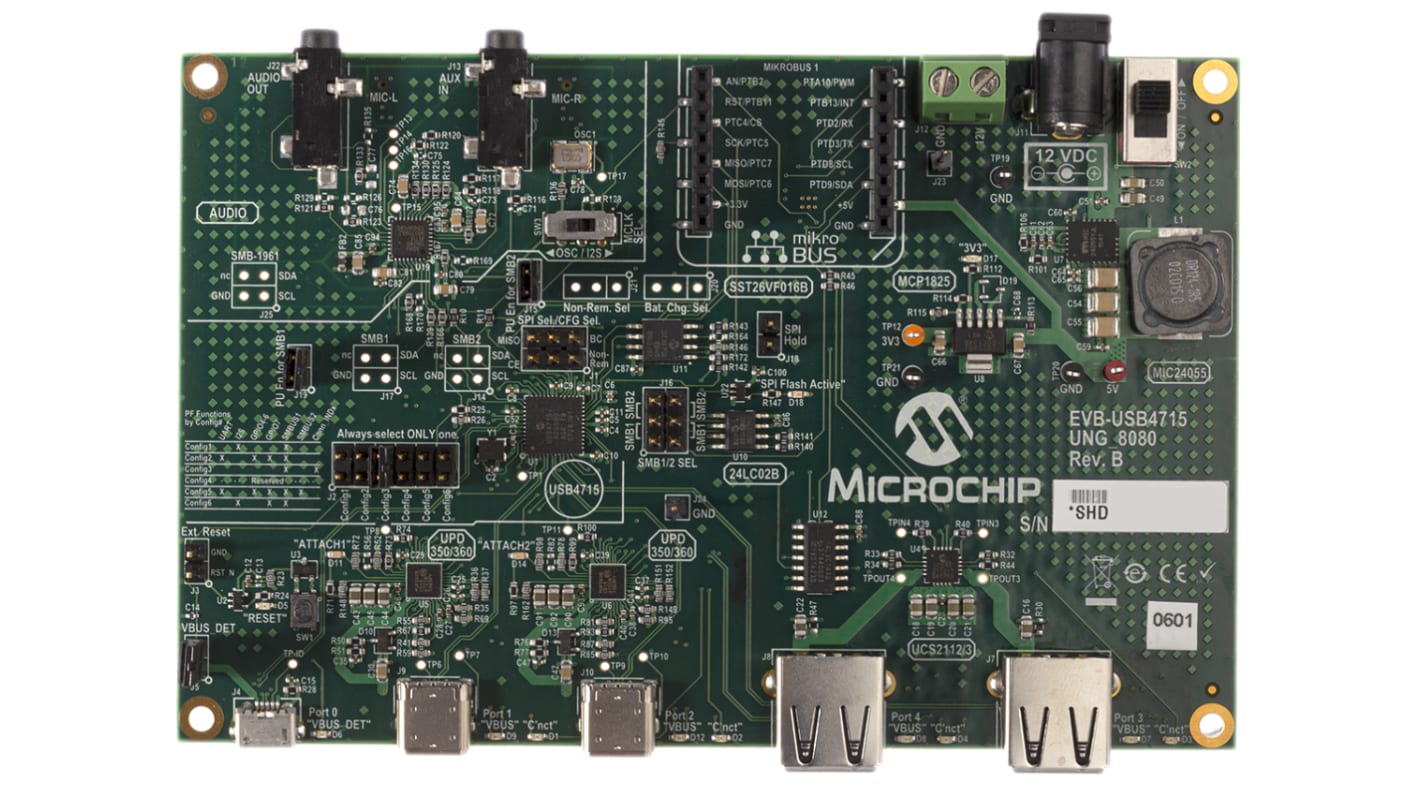

Microchip Technology EVB-USB4715 Evaluation Kit


The Microchip Technology EVB-USB4715 evaluation kit is a demonstration and evaluation platform that provides the requirements and interface options for evaluating the USB4715, a 4-Port HS USB smart hub on a 4-layer Printed Circuit Board (PCB). This allows the user to gain an understanding of the product and accelerate the integration of USB4715 into the user's design. The USB4715 is compliant with USB 2.0 High-Speed (HS), Full-Speed (FS) and Low-Speed (LS) USB signalling. This evaluation board includes 12V power supply and USB cable, A to micro-B.

Features and Benefits


• Four Downstream USB ports
• Microchip's PortSwap, PHYBoost TM and VariSenseTM technologies
• On-board 25MHz crystal or external clock input
• Self-powered operation
• Two Type-A USB 2.0- Only downstream ports
• Two Type-C USB 2.0 downstream ports
• USB 2.0 micro-AB upstream port
• USB pins are 5V tolerant
• USB4715 in a 48-pin QFN package

Certifications


• CNHTS compliant
• ECCN compliant
• MXHTS compliant
• USHTS compliant

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
