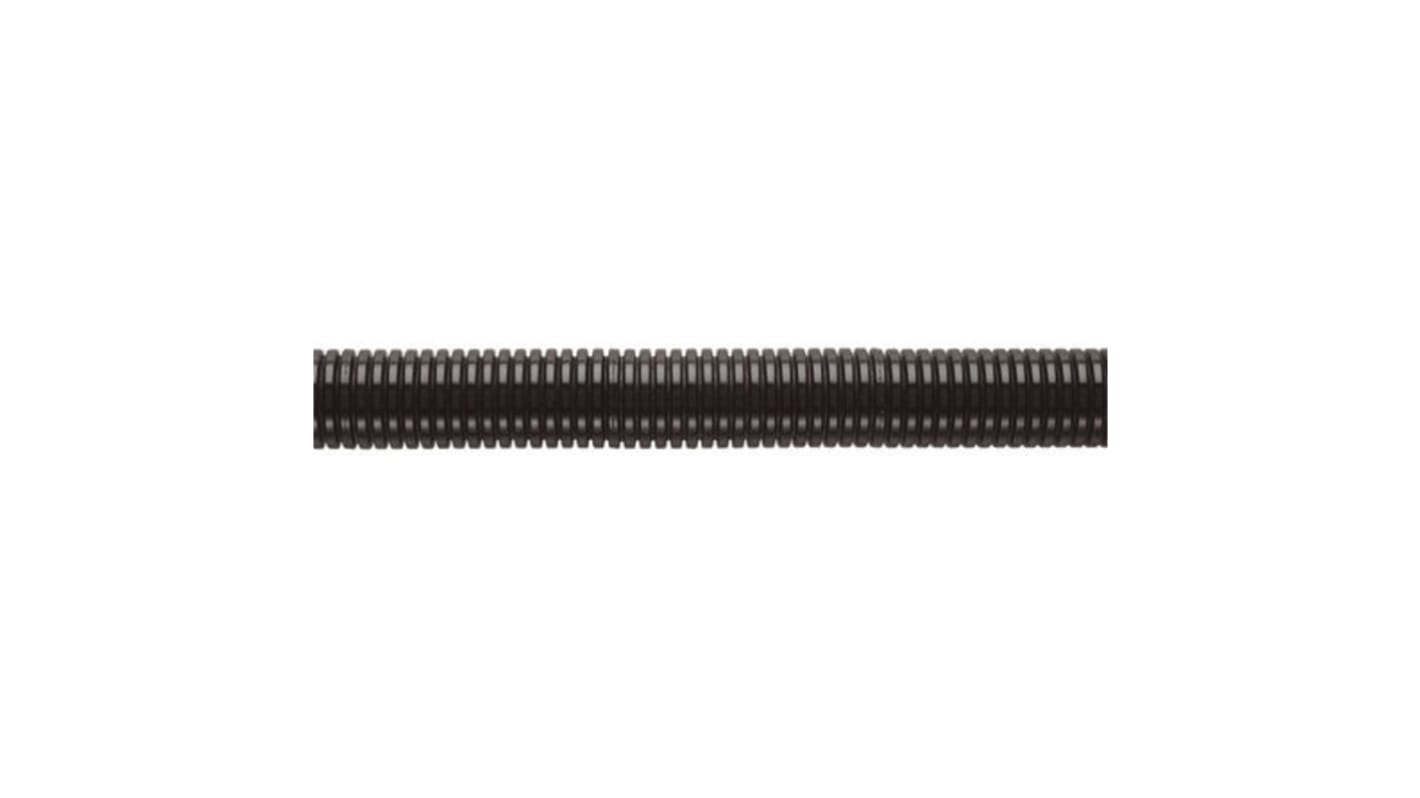

Flexicon Flexible Conduit, 25mm Nominal Diameter, Plastic, Black

RS Stock No.:: 880-8177
Mfr. Part No.:: FPAS25B-50M
Brand:: Flexicon

Flexicon Flexible Conduit, 25mm Nominal Diameter, Plastic, Black

Bulk discount available

Subtotal (1 reel of 50 metres)*

$1,046.10

(exc. GST)

$1,203.02

(inc. GST)

FREE delivery for orders over $60.00 ex GST

In Stock

7 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 - 14	$1,046.10	$20.922
15 +	$1,007.64	$20.153

*price indicative

RS Stock No.:: 880-8177
Mfr. Part No.:: FPAS25B-50M
Brand:: Flexicon

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Flexicon
	Nominal Diameter	25mm
	Material	Plastic
	Conduit Type	Flexible
	Outer Diameter	25mm
	Series	FPAS
	Colour	Black
	Interior Diameter	19.1mm
	Length	50m
	IP Rating	IP66, IP67, IP68, IP69K
	Maximum Operating Temperature	+120°C
	Minimum Operating Temperature	-40°C
	Minimum Bend Radius	50 mm
	Standards Met	CE Compliant, REACH Compliant, RoHS Compliant, UL Listed

	Select all
	Brand Flexicon
	Nominal Diameter 25mm
	Material Plastic
	Conduit Type Flexible
	Outer Diameter 25mm
	Series FPAS
	Colour Black
	Interior Diameter 19.1mm
	Length 50m
	IP Rating IP66, IP67, IP68, IP69K
	Maximum Operating Temperature +120°C
	Minimum Operating Temperature -40°C
	Minimum Bend Radius 50 mm
	Standards Met CE Compliant, REACH Compliant, RoHS Compliant, UL Listed

Standard Weight PA6 conduit 10mm Data Sheet

COO (Country of Origin):: GB

FPAS Standard Weight Non-Metallic Conduit

Non-metallic conduit systems are typically lighter, easier to work with and more cost effective to install. With advances in material technology, non-metallic systems can provide an alternative solution where typically only metal systems had been considered previously.

FPAS non-metallic conduit. Standard weight flame retardant nylon (PA6) corrugated flexible.

Typical applications: all types of machinery and public buildings.

Highly flexible

High impact strength and recovers if crushed

Temperature range: -40°C to +120°C (-20°C to +100°C if moving)

Lloyds Register type approval

UL listed / UL recognised

Low fire hazard (LFH)

UL 94 V2 flame retardancy

Halogen, sulphur and phosphorus free

UV resistant (black)

Abrasion resistant

Highly resistant to solvents and oils
