Infineon NOR 128 MB Quad-SPI Flash Memory 8-Pin SOIC, S25FL128LAGMFV010
- RS Stock No.:
- 181-1589
- Mfr. Part No.:
- S25FL128LAGMFV010
- Brand:
- Infineon

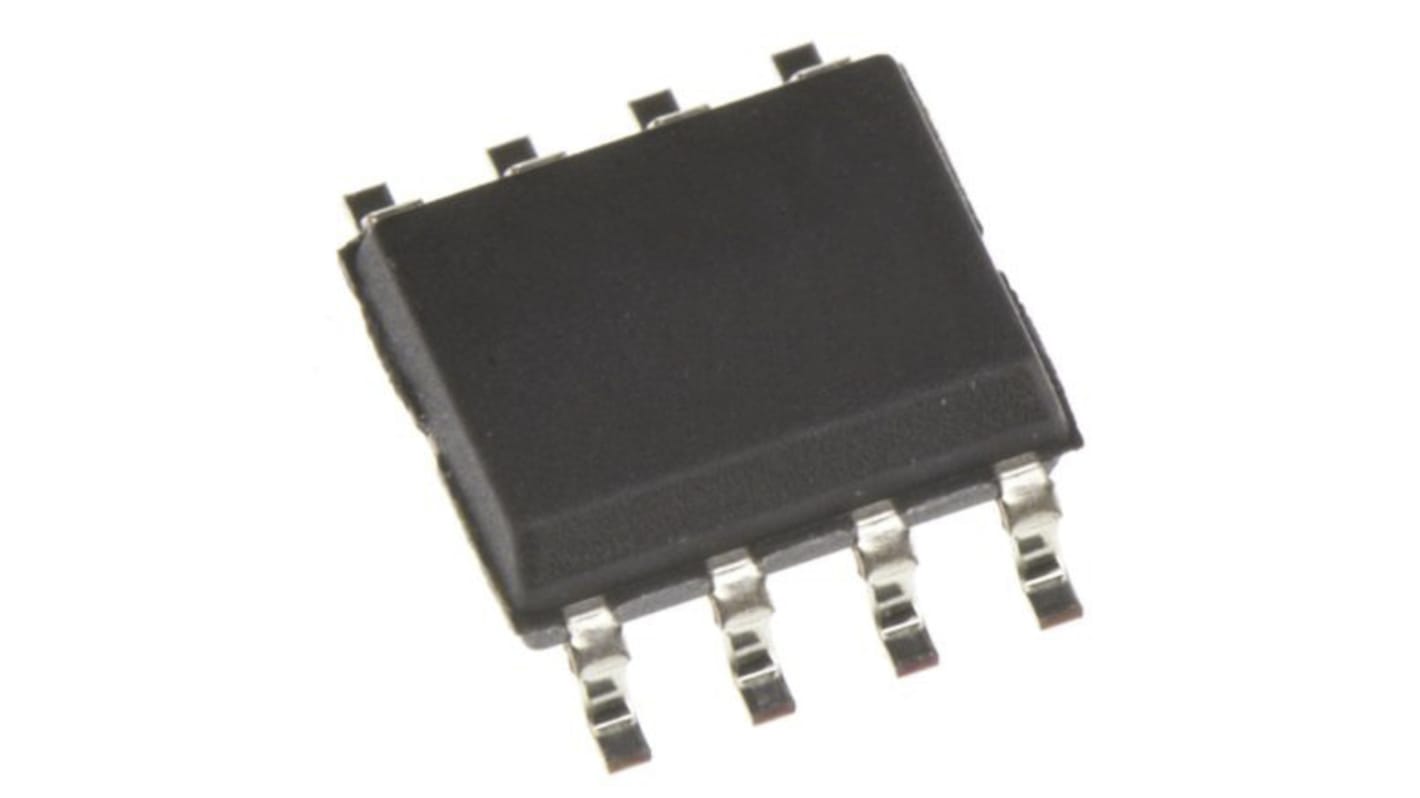

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 3 units)*
$16.44
(exc. GST)
$18.90
(inc. GST)
Spend over $80.00 ex GST for FREE delivery
In Stock
- 171 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 3 - 69 | $5.48 | $16.44 |
| 72 - 138 | $5.34 | $16.02 |
| 141 + | $5.257 | $15.77 |
*price indicative
- RS Stock No.:
- 181-1589
- Mfr. Part No.:
- S25FL128LAGMFV010
- Brand:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Memory Size | 128MB | |
| Product Type | Flash Memory | |
| Interface Type | Quad-SPI | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Organisation | 16M x 8 bit | |
| Mount Type | Surface | |
| Maximum Clock Frequency | 133MHz | |
| Cell Type | NOR | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Height | 1.9mm | |
| Length | 5.28mm | |
| Width | 5.28mm | |
| Standards/Approvals | No | |
| Automotive Standard | AEC-Q100 | |
| Series | S25FL128L | |
| Number of Bits per Word | 8 | |
| Maximum Random Access Time | 8ns | |
| Number of Words | 16M | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Memory Size 128MB | ||
Product Type Flash Memory | ||
Interface Type Quad-SPI | ||
Package Type SOIC | ||
Pin Count 8 | ||
Organisation 16M x 8 bit | ||
Mount Type Surface | ||
Maximum Clock Frequency 133MHz | ||
Cell Type NOR | ||
Minimum Supply Voltage 2.7V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Height 1.9mm | ||
Length 5.28mm | ||
Width 5.28mm | ||
Standards/Approvals No | ||
Automotive Standard AEC-Q100 | ||
Series S25FL128L | ||
Number of Bits per Word 8 | ||
Maximum Random Access Time 8ns | ||
Number of Words 16M | ||
Infineon S25FL128L Series Flash Memory, 128MB Memory Size, 133MHz Maximum Clock Frequency - S25FL128LAGMFV010
This flash memory is a serial NOR device designed for embedded systems requiring non-volatile storage in demanding environments. It provides high-capacity programme and data retention via a parallel organisation tailored for byte-wide access and is intended for use where extended temperature ranges and automotive-grade qualification are important.
Features and Benefits:
• High throughput Quad-SPI interface enabling fast data transfers
• 133MHz maximum clock frequency for accelerated read operations
• 128MB storage supporting large firmware and asset storage needs
• 8ns maximum random access time for improved system responsiveness
• Operates from 2.7V to 3.6V enabling flexible power-supply integration
• AEC-Q100 qualification for suitability in automotive environments
• 133MHz maximum clock frequency for accelerated read operations
• 128MB storage supporting large firmware and asset storage needs
• 8ns maximum random access time for improved system responsiveness
• Operates from 2.7V to 3.6V enabling flexible power-supply integration
• AEC-Q100 qualification for suitability in automotive environments
Applications
• Suitable for vehicle infotainment and control module firmware storage
• Used with microcontrollers requiring high-speed external code memory
• Ideal for automotive data logging and event recording systems
• Can be used for boot code storage in safety-related modules
• Used for industrial controllers operating across wide temperatures
• Used with microcontrollers requiring high-speed external code memory
• Ideal for automotive data logging and event recording systems
• Can be used for boot code storage in safety-related modules
• Used for industrial controllers operating across wide temperatures
What organisation does the memory present to a host controller?
It is organised as 16M words of 8-bit wide data, allowing byte-access operations.
What packaging and mounting method should designers expect?
The device comes in an 8-pin SOIC package intended for surface-mount assembly.
How does it behave across temperature extremes?
It functions over a minimum of -40°C up to a maximum of 105°C, suitable for harsh operating conditions.
Which electrical limits are relevant when integrating into a design?
Supply voltage must remain between 2.7V and 3.6V, and the device supports operation at up to 133MHz clock rates.
