Infineon NOR 64 MB SPI Flash Memory 8-Pin SOIC, S25FL064LABMFI013
- RS Stock No.:
- 215-5782
- Mfr. Part No.:
- S25FL064LABMFI013
- Brand:
- Infineon

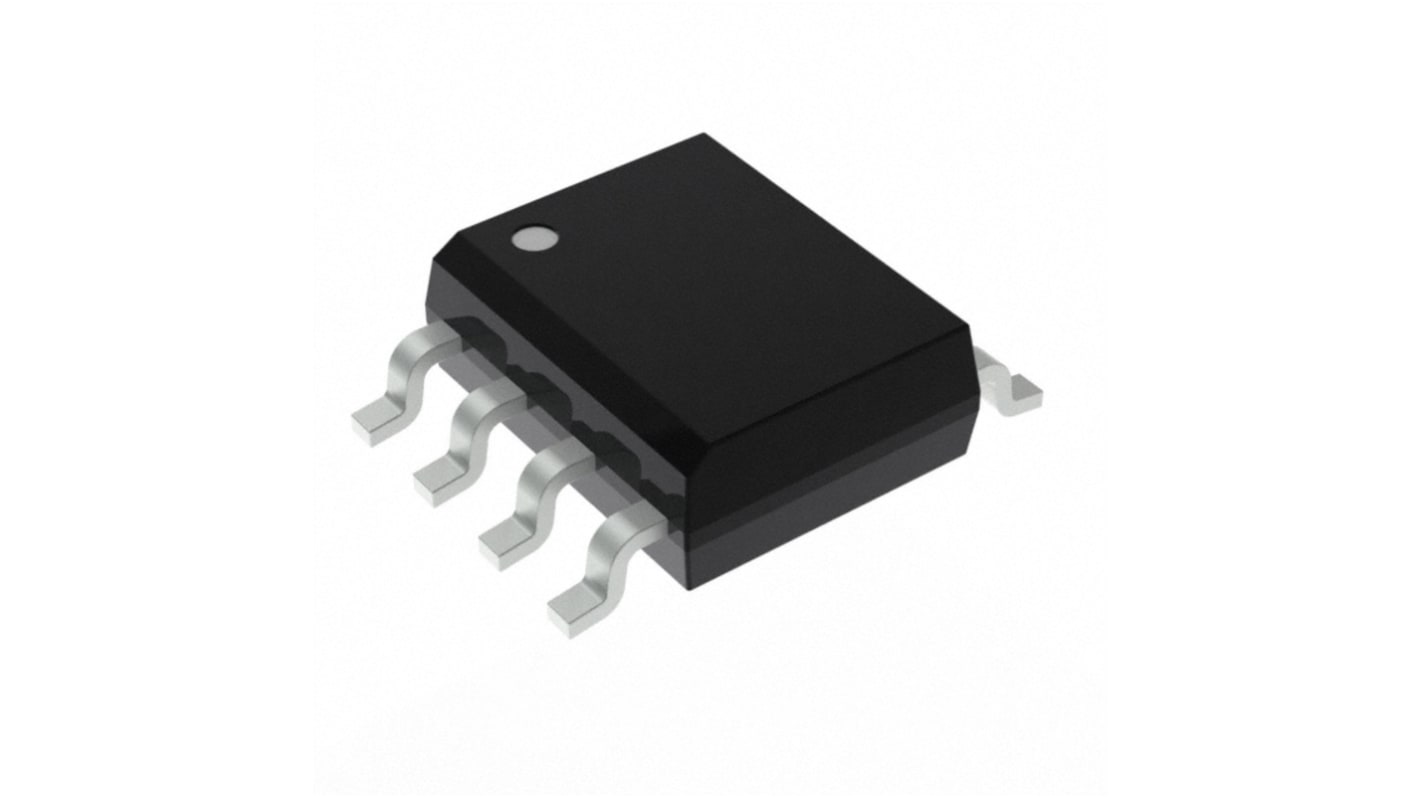

This image is representative of the product range
Get a bulk buy discount
Add 10500 more to save 9%
View bulk pricing optionsSubtotal (1 tube of 2100 units)*
$5,424.30
(exc. GST)
$6,237.00
(inc. GST)
Spend over $80.00 ex GST for FREE delivery
In Stock
- 2,100 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* | Saving |
|---|---|---|---|
| 2100 - 8400 | $2.583 | $5,424.30 | - |
| 10500 + | $2.325 | $4,882.50 | 9% |
*price indicative
- RS Stock No.:
- 215-5782
- Mfr. Part No.:
- S25FL064LABMFI013
- Brand:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Memory Size | 64MB | |
| Product Type | Flash Memory | |
| Interface Type | SPI | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Organisation | 8 M x 8 | |
| Mount Type | Surface | |
| Maximum Clock Frequency | 108MHz | |
| Cell Type | NOR | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 1.9mm | |
| Length | 5.28mm | |
| Standards/Approvals | No | |
| Width | 5.28mm | |
| Number of Words | 8M | |
| Maximum Random Access Time | 8ns | |
| Series | S25FL | |
| Number of Bits per Word | 8 | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Memory Size 64MB | ||
Product Type Flash Memory | ||
Interface Type SPI | ||
Package Type SOIC | ||
Pin Count 8 | ||
Organisation 8 M x 8 | ||
Mount Type Surface | ||
Maximum Clock Frequency 108MHz | ||
Cell Type NOR | ||
Minimum Supply Voltage 2.7V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Height 1.9mm | ||
Length 5.28mm | ||
Standards/Approvals No | ||
Width 5.28mm | ||
Number of Words 8M | ||
Maximum Random Access Time 8ns | ||
Series S25FL | ||
Number of Bits per Word 8 | ||
Automotive Standard AEC-Q100 | ||
Infineon S25FL Series Flash Memory, 64MB Memory Size, 108MHz Maximum Clock Frequency - S25FL064LABMFI013
This flash memory is a 64MB SPI NOR device designed for automotive and industrial electronics, providing non-volatile storage for firmware and data within control modules. It operates across a wide industrial temperature range and mounts to printed circuit boards using an SOIC surface package, supporting serial peripheral interface communication for system integration.
Features and Benefits:
• 108MHz SPI clock enables faster data transfers
• 8ns random access time reduces read latency
• 2.7-3.6V supply range supports low-voltage systems
• 8M words x8 organisation simplifies byte-oriented storage
• AEC-Q100 qualification meets automotive component stress requirements
• 8ns random access time reduces read latency
• 2.7-3.6V supply range supports low-voltage systems
• 8M words x8 organisation simplifies byte-oriented storage
• AEC-Q100 qualification meets automotive component stress requirements
Applications
• Suitable for ECU firmware storage in vehicles
• Used for boot code and file system storage in controllers
• Ideal for automotive sensor data logging modules
• Can be used for in-vehicle infotainment code storage
• Used for boot code and file system storage in controllers
• Ideal for automotive sensor data logging modules
• Can be used for in-vehicle infotainment code storage
What package and pin count should designers expect for PCB layout?
The device is supplied in an SOIC surface-mount package with 8 pins, allowing standard SOIC footprint placement and assembly processes.
How does the memory cell architecture affect reliability in read operations?
The NOR memory cell topology provides direct random read access to individual bytes, supporting predictable read timing and straightforward execute-in-place use cases.
What clocking capability should the host controller support for full performance?
To achieve peak throughput the host SPI interface must support clock rates up to 108MHz.
What supply voltage constraints apply during system design?
Operate the device within a 2.7V to 3.6V range to ensure correct logic levels and stable memory operation.
