Microchip Split Gate 2 MB SPI Flash Memory 8-Pin SOIC, SST25VF020B-80-4I-SAE-T
- RS Stock No.:
- 264-8829
- Mfr. Part No.:
- SST25VF020B-80-4I-SAE-T
- Brand:
- Microchip

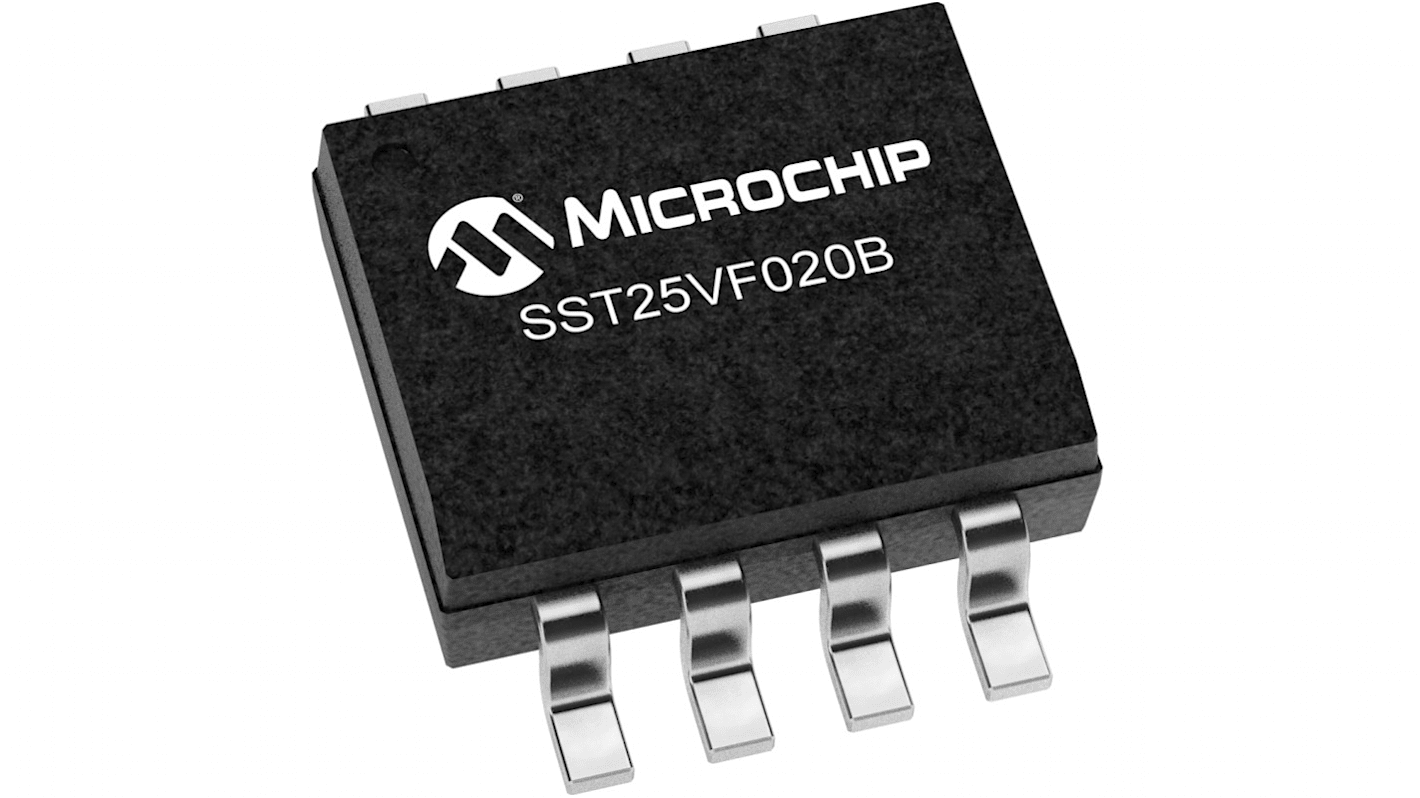

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 10 units)*
$19.66
(exc. GST)
$22.61
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 800 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | $1.966 | $19.66 |
| 50 - 90 | $1.927 | $19.27 |
| 100 - 240 | $1.91 | $19.10 |
| 250 - 990 | $1.871 | $18.71 |
| 1000 + | $1.865 | $18.65 |
*price indicative
- RS Stock No.:
- 264-8829
- Mfr. Part No.:
- SST25VF020B-80-4I-SAE-T
- Brand:
- Microchip
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | Flash Memory | |
| Memory Size | 2MB | |
| Interface Type | SPI | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Organisation | 256K x 8 | |
| Maximum Clock Frequency | 80MHz | |
| Mount Type | Surface | |
| Cell Type | Split Gate | |
| Minimum Supply Voltage | 2.3V | |
| Maximum Supply Voltage | 3.6V | |
| Timing Type | Synchronous | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 6mm | |
| Standards/Approvals | JEDEC, RoHS | |
| Width | 5 mm | |
| Supply Current | 10mA | |
| Automotive Standard | No | |
| Series | SST25VF | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type Flash Memory | ||
Memory Size 2MB | ||
Interface Type SPI | ||
Package Type SOIC | ||
Pin Count 8 | ||
Organisation 256K x 8 | ||
Maximum Clock Frequency 80MHz | ||
Mount Type Surface | ||
Cell Type Split Gate | ||
Minimum Supply Voltage 2.3V | ||
Maximum Supply Voltage 3.6V | ||
Timing Type Synchronous | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Length 6mm | ||
Standards/Approvals JEDEC, RoHS | ||
Width 5 mm | ||
Supply Current 10mA | ||
Automotive Standard No | ||
Series SST25VF | ||
The Microchip Serial flash memory features a four-wire, SPI compatible interface that allows for a low pin-count package which occupies less board space and ultimately lowers total system costs. This memory is enhanced with improved operating frequency and even lower power consumption. This SPI serial flash memory is manufactured with SST proprietary, high performance CMOS Super flash technology. The split-gate cell design and thick-oxide tunnelling injector attain better reliability and manufacturability compared with alternate approaches. The SST25VF020B device significantly improve performance and reliability, while lowering power consumption.
Serial Interface Architecture– SPI Compatible: Mode 0 and Mode 3
Superior Reliability-endurance: 100,000 Cycles (typical)- greater than 100 years data retention
Low power consumption:– active read current: 10 mA (typical)– standby current: 5 μA (typical)
All non-Pb (lead-free) devices are RoHS compliant
-40°C to +85°C industrial temperature range
