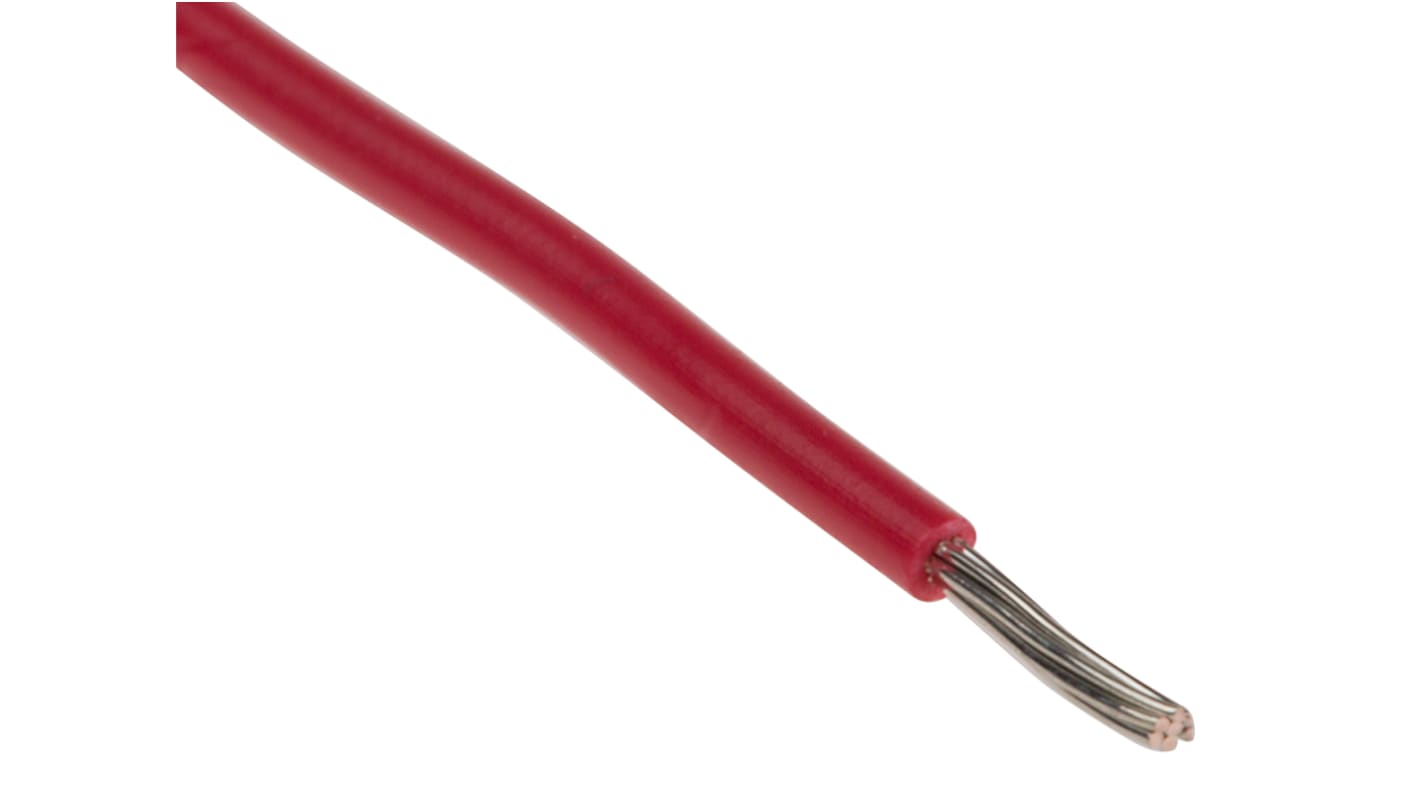

RS PRO Red 0.22mm² Hook Up Wire, 24 AWG, 7/0.2 mm, 250m, PVC Insulation
- RS Stock No.:
- 851-3579
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 reel of 250 metres)*
$77.69
(exc. GST)
$89.34
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 75 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 4 | $77.69 | $0.311 |
| 5 + | $63.94 | $0.256 |
*price indicative
- RS Stock No.:
- 851-3579
- Brand:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 0.22mm² | |
| Sheath Colour | Red | |
| American Wire Gauge | 24 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 7/0.2 mm | |
| Length | 250m | |
| Insulation Material | PVC | |
| Voltage Rating | 250 V | |
| Outer Diameter | 1.2mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
| Conductor Material | Copper | |
| Cable Type | Harsh Environment | |
| Standards Met | NFC 32070/C1, NFC 93521 | |
| Shield Type | Tinned Copper | |
| Number of Strands | 7 | |
| Size of Strands | 0.2mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.22mm² | ||
Sheath Colour Red | ||
American Wire Gauge 24 AWG | ||
Cable Shape Single Core | ||
Core Strands 7/0.2 mm | ||
Length 250m | ||
Insulation Material PVC | ||
Voltage Rating 250 V | ||
Outer Diameter 1.2mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Conductor Material Copper | ||
Cable Type Harsh Environment | ||
Standards Met NFC 32070/C1, NFC 93521 | ||
Shield Type Tinned Copper | ||
Number of Strands 7 | ||
Size of Strands 0.2mm | ||
- COO (Country of Origin):
- CN
RS KY30 Cable
The KY30 Cable is ideal for internal wiring in electronic equipment.
Tin plated copper inner conductor
PVC Insulation
PVC Insulation
Standards
NFC 93521, NFC 32070/C1
