RS PRO Silver Anodised Aluminium Instrument Case, 80 x 108.5 x 30mm

RS Stock No.:: 195-1542
Brand:: RS PRO

RS PRO Silver Anodised Aluminium Instrument Case, 80 x 108.5 x 30mm

Bulk discount available

Subtotal (1 unit)**

$43.23

(exc. GST)

$49.71

(inc. GST)

201 In stock for delivery within 7 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60 ex GST

Real time qty checker

Units	Per unit
1 - 4	$43.23
5 +	$35.57

**price indicative

RS Stock No.:: 195-1542
Brand:: RS PRO

RS PRO Anodised Aluminium Enclosures With Extruded Dovetail Slots, Silver

Introducing anodised aluminium enclosures, a range of lightweight yet durable enclosures ideal for housing and protecting internal electrical components such as wiring and PCB boards. These versatile enclosures are available in a range of sizes to suit a variety of applications.

This range of high standard silver anodised aluminium enclosures are manufactured from aluminium, offering a selection of highly durable protective cases with high corrosion resistance and a wide operating temperature range. The enclosures feature a silver anodised finish to further enhance the corrosion resistance and durability whilst providing an aesthetically pleasing look and feel. The inside of the enclosures also feature integral card slots for easy PCB mounting whilst allowing other components to be installed with ease. The enclosures also feature dovetail slots down the side which accept a mounting bracket for surface mounting if required.

Features and benefits

Available in a range of sizes

Manufactured from aluminium offering a lightweight yet durable enclosure

Silver anodised finish to enhance corrosion resistance

Suitable for a range of applications

Integral card slots for easy PCB mounting

Dovetail slots down the side that accept a mounting bracket for surface mounting

Applications

Aluminium enclosures are a type of protective case ideal for housing electrical parts and components in a variety of applications. They are available in a wide range of sizes and often feature internal slots for easy PCB mounting and installation.

Electrical

Button switching elements

Telecommunication

Network Junction boxes

Mechanical and automation

What is included?

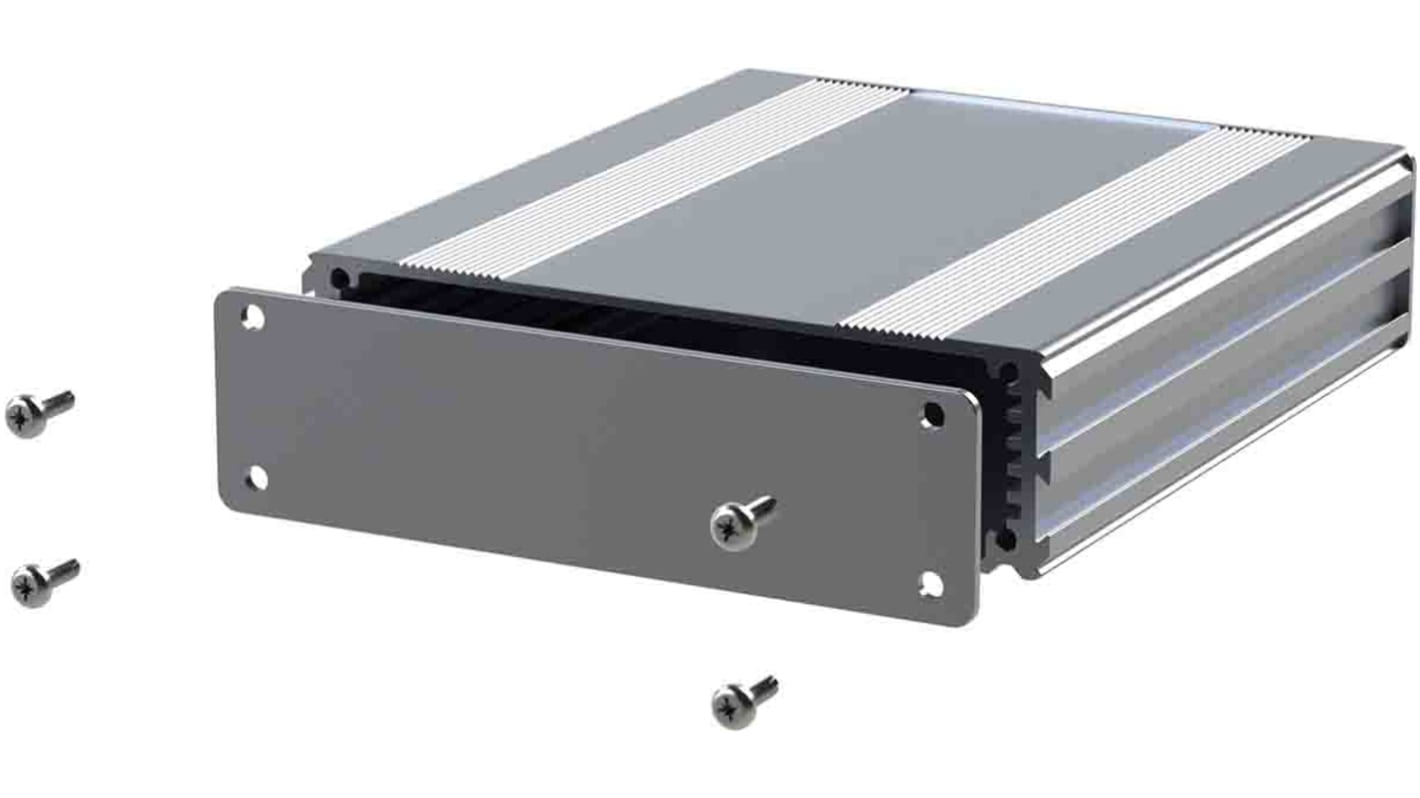

1 x Aluminium Extruded Case

2 x Aluminium End Plates

8 x No4 x 3/8 Plastite screw

Is this waterproof?

This range of aluminium enclosures are not waterproof and should only be used for indoor applications.

Benefits of anodised aluminium

Anodised aluminium is a process used with metal to enhance the corrosion resistance, whilst making it more aesthetically pleasing. Unlike metal paint that can chip, anodised aluminium is fully integrated with the underlying aluminium substrate, producing an appealing texture that is both durable and appealing.

Optional extras

This range of aluminium enclosures have a selection of brackets allowing them to be fixed to a wall or similar surface and a selection of optional accessories:

Clip-on Mounting Bracket – 1951523

Mounting Bracket Lug 80mm - 1951536

Mounting Bracket Lug 40mm - 1951535

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Body Material	Anodised Aluminium
	External Length	80 mm
	External Width	108.5 mm
	External Height	30 mm
	External Dimensions	80 x 108.5 x 30mm
	Colour	Silver

	Select all
	Brand RS PRO
	Body Material Anodised Aluminium
	External Length 80 mm
	External Width 108.5 mm
	External Height 30 mm
	External Dimensions 80 x 108.5 x 30mm
	Colour Silver
