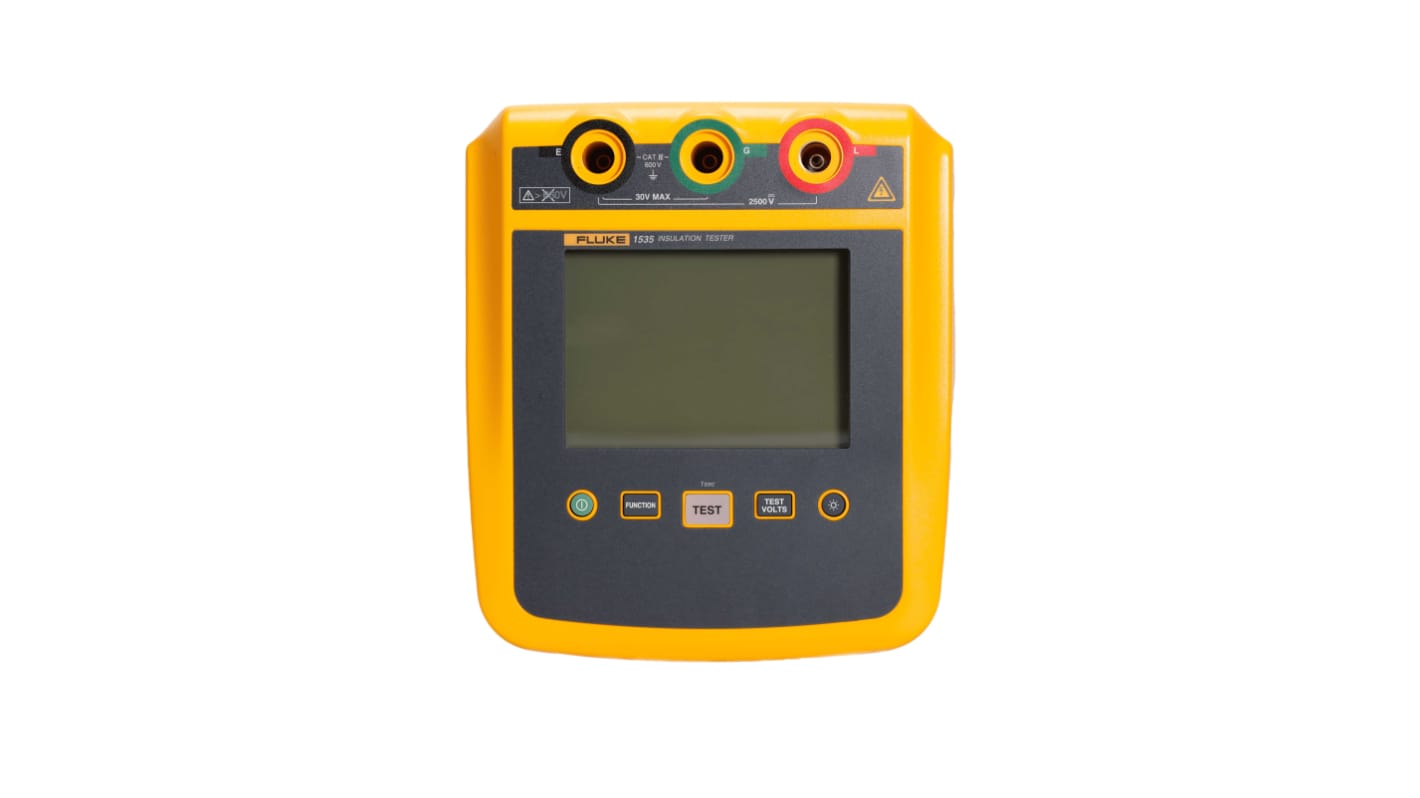

Fluke 1535/APAC Insulation Resistance Tester, 250 V Min, 2500 V Max, 500 GΩ CAT IV

View all Insulation Testers

Subtotal (1 unit)*

$2,379.30

(exc. GST)

$2,736.20

(inc. GST)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +$2,379.30

*price indicative

RS Stock No.:
241-3115
Mfr. Part No.:
FLUKE-1535/APAC
Brand:
Fluke
Find similar products by selecting one or more attributes.
Select all

Brand

Fluke

Product Type

Insulation Tester

Model Number

1535/APAC

Tester Type

Insulation Resistance Tester

Minimum Test Voltage

250V

Maximum Test Voltage

2500V

Display Type

LCD

Power Source

Battery

Battery Type

AA IEC LR06

Minimum Operating Temperature

-10°C

Insulation Testing Resistance

500GΩ

Maximum Operating Temperature

50°C

Safety Category Level

CAT IV

Safety Category Voltage

600V

Height

184mm

Width

211 mm

Standards/Approvals

IEC 6155716, IEC 6132622 CISPR 11: Group 1, Class A, IEC 610101, IEC 613261: Electromagnetic environment for portable equipment, IEC 60529: IP40, IEC 615571, IEC 610102033: CAT IV 600 V, IEC 615572

Length

93mm

Weight

1.3kg

COO (Country of Origin):
CN
The FLUKE-1535/APAC insulation resistance tester is designed for fast-measurement, faster & stable resistance reading with higher efficiency. It has automatic calculation of polarization index and dielectric absorption ratio. Its low power design meets the requirements of high-intensity work up to 1300 times of 2500 V measurement, and up to 6500 times of 250 V measurements. This tester has high-safety design with dangerous voltage alarm function, and complies with CAT IV 600V standard and China power industry specifications DLT845.

Display 73.5 mm x 104 mm

Battery 8 AA alkaline cells, IEC LR6

Operating altitude 2000 m

Storage altitude 12000 m
