Megger Insulation & Continuity Tester, 250 V Min, 1000 V Max CAT III

View all Insulation Testers
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
516-7697
Mfr. Part No.:
MIT310-EN
Brand:
Megger
Find similar products by selecting one or more attributes.
Select all

Brand

Megger

Product Type

Insulation Tester

Tester Type

Insulation & Continuity Tester

Maximum Test Voltage

1000V

Minimum Test Voltage

250V

Display Type

LCD

Test Current

1mA

Battery Type

AA

Power Source

Battery

Minimum Operating Temperature

-10°C

Plug Type

3-Pin (Global), Type F - Schuko, AUS, Type A - North American/Japanese 2-Blade, Type G - British 3-Pin

Safety Category Voltage

600V

Maximum Operating Temperature

60°C

Safety Category Level

CAT III

Width

148 mm

Height

78mm

Standards/Approvals

IEC 61326-1

Length

203mm

Weight

980g

RoHS Status: Exempt

COO (Country of Origin):
GB

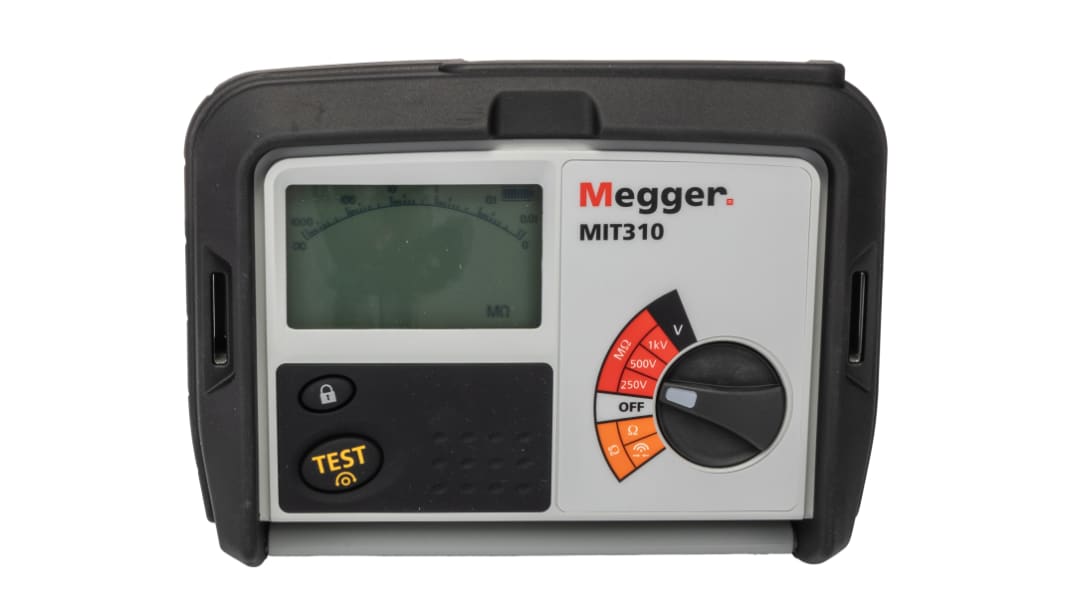

Megger Insulation Tester, 0.01 to 999MΩ Insulation Test Measurement Range, 1mA Test Current Rating - MIT300 Series - MIT310-EN


Make sure your equipment is shipshape with this insulation tester from Megger. It detects current leaks, so you can stay ahead of the game and stop electrical issues in their tracks. Thanks to the device's wide insulation test range between 0.01 to 999MΩ, it's a practical choice for low and high-resistance systems. The unit features digital and analogue displays so you can view results in numeric and graph forms, making it a versatile piece of kit. For improved safety, this instrument automatically discharges after circuit testing.

Features & Benefits


• Microsoft Excel compatibility lets you convert CSV spreadsheets for seamless data collection

• Colour-coded ranges help you make test selections in a jiffy

• Built-in voltmeter for added precision in fault detection

Applications


• Electrical installations

• Cable diagnostics

• Motor and generator tests

Can this insulation tester handle heavy-duty environments?


Yes, the unit's rubber armouring can handle knocks and bumps in demanding settings such as construction sites. Its display also folds away to protect it when not in use.

Is this insulation tester hands-free?


Yes, you can wear this insulation tester around your neck. This frees up your hands for better control over the probes.
