Key Switch, SPDT-NO/NC, 5 A @ 115 V ac 2-Way Random-Key
- RS Stock No.:
- 321-026
- Mfr. Part No.:
- SRL5ED2
- Manufacturer:
- Lorlin
View all Key Switches
1311 In stock for delivery within 7 working day(s)
Price (ex. GST) Each
$24.14
(exc. GST)
$27.76
(inc. GST)
| units | Per unit |
| 1 - 49 | $24.14 |
| 50 - 99 | $23.85 |
| 100 - 249 | $23.31 |
| 250 + | $22.69 |
- RS Stock No.:
- 321-026
- Mfr. Part No.:
- SRL5ED2
- Manufacturer:
- Lorlin
- COO (Country of Origin):
- GB
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

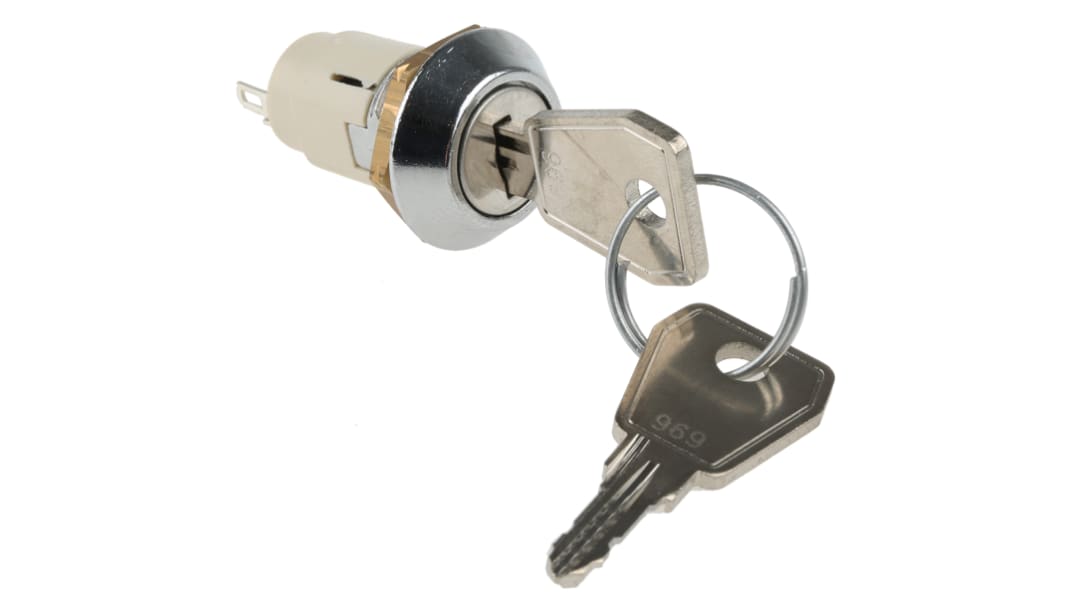

Lorlin Key Switch
The Lorlin key switch is a common, flat, key-operated switch. It has an alloy housing with stainless steel capped bezel. This is a trapped 1 position key removal or non-trapping 2 position key removal radial cylinder with 4 pin tumbler.
Features and Benefits
Contact configuration is SPDT (NO/NC
)
Key trapping
Contact current rating of 5A at 115VAC
Random key type
Solder terminal
Case material zinc alloy
Bezel shape is round
Key index angle is 90°
Contact material is silver-plated brass
Operating temperature ranges between -20°C and 65°C
Mechanical service life is less than 5x104 times
)
Key trapping
Contact current rating of 5A at 115VAC
Random key type
Solder terminal
Case material zinc alloy
Bezel shape is round
Key index angle is 90°
Contact material is silver-plated brass
Operating temperature ranges between -20°C and 65°C
Mechanical service life is less than 5x104 times
Applications
Control panels
Alarms
Lighting controls
Alarms
Lighting controls
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
Specifications
| Attribute | Value |
| Number of Positions | 2 |
| Contact Configuration | SPDT-NO/NC |
| Key Trapping | Yes |
| Contact Current Rating | 5 A @ 115 V ac |
| Key Type | Random |
| Terminal Type | Solder |
| Case Material | Zinc Alloy |
| Bezel Shape | Round |
| Key Index Angle | 90° |
| Contact Material | Silver Plated Brass |
| Standards Met | RoHS |
| Maximum Operating Temperature | +65°C |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +65°C |
| Mechanical Life | 10000 |
