RS PRO IP40 Key Switch, SPDT, 5 A 2-Way Flat-Key

RS Stock No.:: 282-1233
Brand:: RS PRO

RS PRO IP40 Key Switch, SPDT, 5 A 2-Way Flat-Key

Subtotal (1 unit)*

$45.17

(exc. GST)

$51.95

(inc. GST)

FREE delivery for orders over $60.00 ex GST

In Stock

Plus 155 unit(s) shipping from 09 March 2026
Plus 188 unit(s) shipping from 16 June 2026
Plus 100 unit(s) shipping from 11 August 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	$45.17

*price indicative

RS Stock No.:: 282-1233
Brand:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Key Switch
	Number of Positions	2
	Switch Operation	On-On
	Contact Configuration	SPDT
	Housing Material	Stainless Steel
	Switch Contact Current	5 A
	IP Rating	IP40
	Key Type	Flat
	Terminal Type	Solder
	Bezel Shape	Round
	Contact AC Voltage	250V ac
	Switch Configuration	DPDT, SPDT
	Key Index Angle	90°
	Standards/Approvals	CE
	Contact Material	Silver Plated
	Minimum Operating Temperature	-25°C
	Mechanical Life	200000Cycles
	Maximum Operating Temperature	55°C

	Select all
	Brand RS PRO
	Product Type Key Switch
	Number of Positions 2
	Switch Operation On-On
	Contact Configuration SPDT
	Housing Material Stainless Steel
	Switch Contact Current 5 A
	IP Rating IP40
	Key Type Flat
	Terminal Type Solder
	Bezel Shape Round
	Contact AC Voltage 250V ac
	Switch Configuration DPDT, SPDT
	Key Index Angle 90°
	Standards/Approvals CE
	Contact Material Silver Plated
	Minimum Operating Temperature -25°C
	Mechanical Life 200000Cycles
	Maximum Operating Temperature 55°C

COO (Country of Origin):: TW

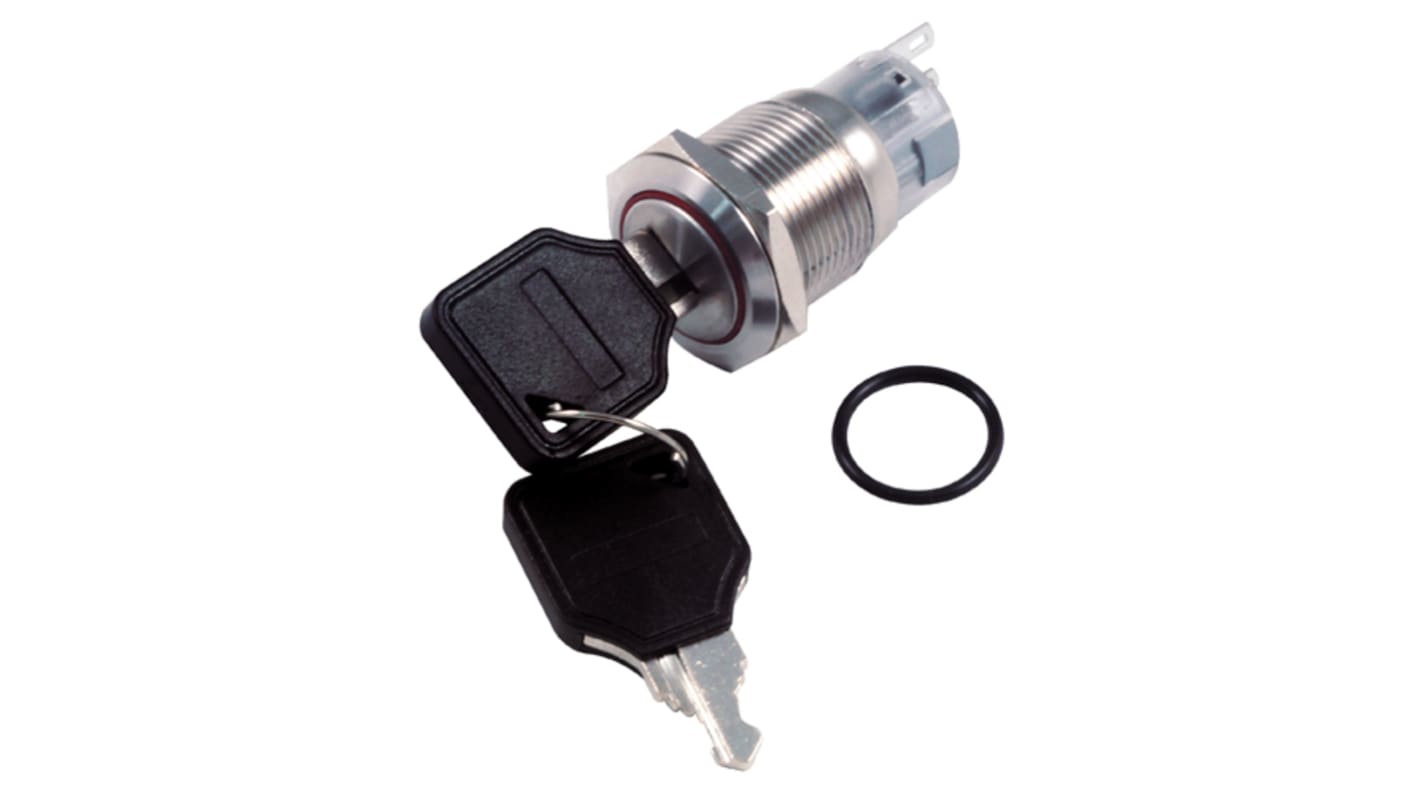

RS PRO Key Switch - SPDT ON-ON, 2 Way

The RS PRO key switch provides a straightforward yet highly efficient way to secure and control your equipment. Ideal for limiting access to critical systems like industrial machinery, electrical grids, and construction equipment, this key switch ensures only authorised personnel can power your devices on or off.

It is engineered for toughness and boasts a robust stainless steel front panel that resists vandalism. With two included keys, you can grant access to multiple users or keep a spare. The solderable contacts offer a firm, lasting connection, while the corrosion-resistant, rust-proof stainless steel design guarantees minimal upkeep and extended durability.

Features and Benefits

Anti-Vandal Key Switch SPDT ON-ON

Front panel protection to IP40

Compact size with M19 mounting size

Two switching positions

Stainless steel shell and actuator

Copper alloy, silver plated

Contains

1 x Anti-vandal key switch

2 x keys

Hex nut

Seal ring

Applications

Suitable for industrial control
