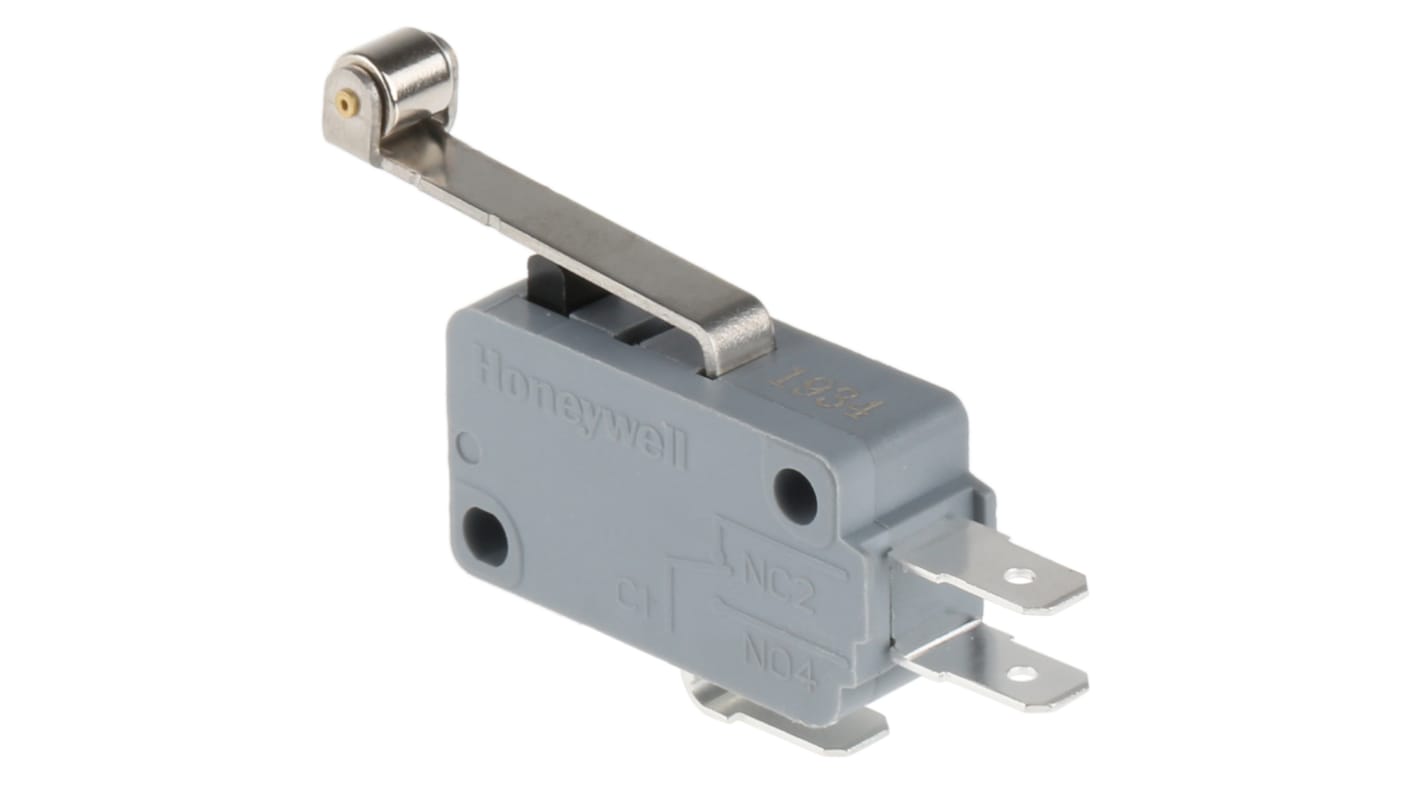

Honeywell Technologies Roller Lever Micro Switch, Tab Terminal, 16A, 250 V ac, SPDT
- RS Stock No.:
- 515-690
- Distrelec Article No.:
- 301-38-871
- Mfr. Part No.:
- V15T16-EZ100A06
- Brand:
- Honeywell
Get a bulk buy discount
Add 50 more to save 5%
View bulk pricing optionsSubtotal (1 unit)*
$18.24
(exc. GST)
$20.98
(inc. GST)
Spend over $80.00 ex GST for FREE delivery
In Stock
- 267 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 1 - 49 | $18.24 | - |
| 50 - 149 | $17.28 | 5% |
| 150 - 249 | $16.42 | 9% |
| 250 - 1249 | $15.59 | 14% |
| 1250 + | $14.83 | 18% |
*price indicative
- RS Stock No.:
- 515-690
- Distrelec Article No.:
- 301-38-871
- Mfr. Part No.:
- V15T16-EZ100A06
- Brand:
- Honeywell
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Product Type | Micro Switch | |
| Actuator Type | Roller Lever | |
| Terminal Type | Tab | |
| Switch Contact Current | 16A | |
| Housing Material | PBT | |
| Contact Configuration | SPDT | |
| Operating Force | 0.98N | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 125°C | |
| Microswitch Type | Standard | |
| Contact AC Voltage | 250V ac | |
| Mechanical Life | 5000000Operations | |
| Length | 27.8mm | |
| Hazardous Area Certification | No | |
| Depth | 10.3mm | |
| Standards/Approvals | ENEC, UL, CQC, cUL | |
| Width | 10.3mm | |
| Series | V15 | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Product Type Micro Switch | ||
Actuator Type Roller Lever | ||
Terminal Type Tab | ||
Switch Contact Current 16A | ||
Housing Material PBT | ||
Contact Configuration SPDT | ||
Operating Force 0.98N | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 125°C | ||
Microswitch Type Standard | ||
Contact AC Voltage 250V ac | ||
Mechanical Life 5000000Operations | ||
Length 27.8mm | ||
Hazardous Area Certification No | ||
Depth 10.3mm | ||
Standards/Approvals ENEC, UL, CQC, cUL | ||
Width 10.3mm | ||
Series V15 | ||
- COO (Country of Origin):
- CN
Honeywell V15 Series Micro Switch, 16A Switch Contact Current, P inches Plunger Actuator Type - V15T16-EZ100A06
This micro switch is a Compact electromechanical control component designed for signal switching in industrial and electronic systems. It employs a pin plunger actuator to deliver precise momentary switching and is suited to environments where Compact, repeatable switching is required.
Features and Benefits:
• SPDT contact arrangement supports changeover switching functionality
• 16A contact current handles moderate load circuits
• Rated for 250V AC compatibility with AC supply systems
• PBT thermoplastic polyester housing resists thermal stress
• 0.96N actuation force enables sensitive, low-force operation
• Mechanical life of 5,000,000 operations ensures long maintenance intervals
• 16A contact current handles moderate load circuits
• Rated for 250V AC compatibility with AC supply systems
• PBT thermoplastic polyester housing resists thermal stress
• 0.96N actuation force enables sensitive, low-force operation
• Mechanical life of 5,000,000 operations ensures long maintenance intervals
Applications
• Suitable for limit-switching in automated machinery
• Ideal for position detection in electrical actuators
• Used with control panels requiring Compact switching elements
• Can be used for safety interlocks in mechanical assemblies
• Ideal for position detection in electrical actuators
• Used with control panels requiring Compact switching elements
• Can be used for safety interlocks in mechanical assemblies
What Terminal type is provided for connection?
The device uses quick-connect terminals to enable fast, tool-free wiring and straightforward replacement in panel or field installations.
What temperature range can the switch tolerate during operation?
It operates across temperatures from −25 °C up to a maximum of 125 °C, allowing use in both chilled and high-temperature equipment spaces.
How small is the switch for space-constrained applications?
The enclosure measures 27.8mm in length and 10.3mm in width and depth, making it suitable for tight mounting locations.
Which approvals indicate recognised safety or performance standards?
It carries ENEC, UL, cUL and CQC approvals indicating compliance with relevant international standards for electrical components.
Approvals
ENEC, UL, CQC
