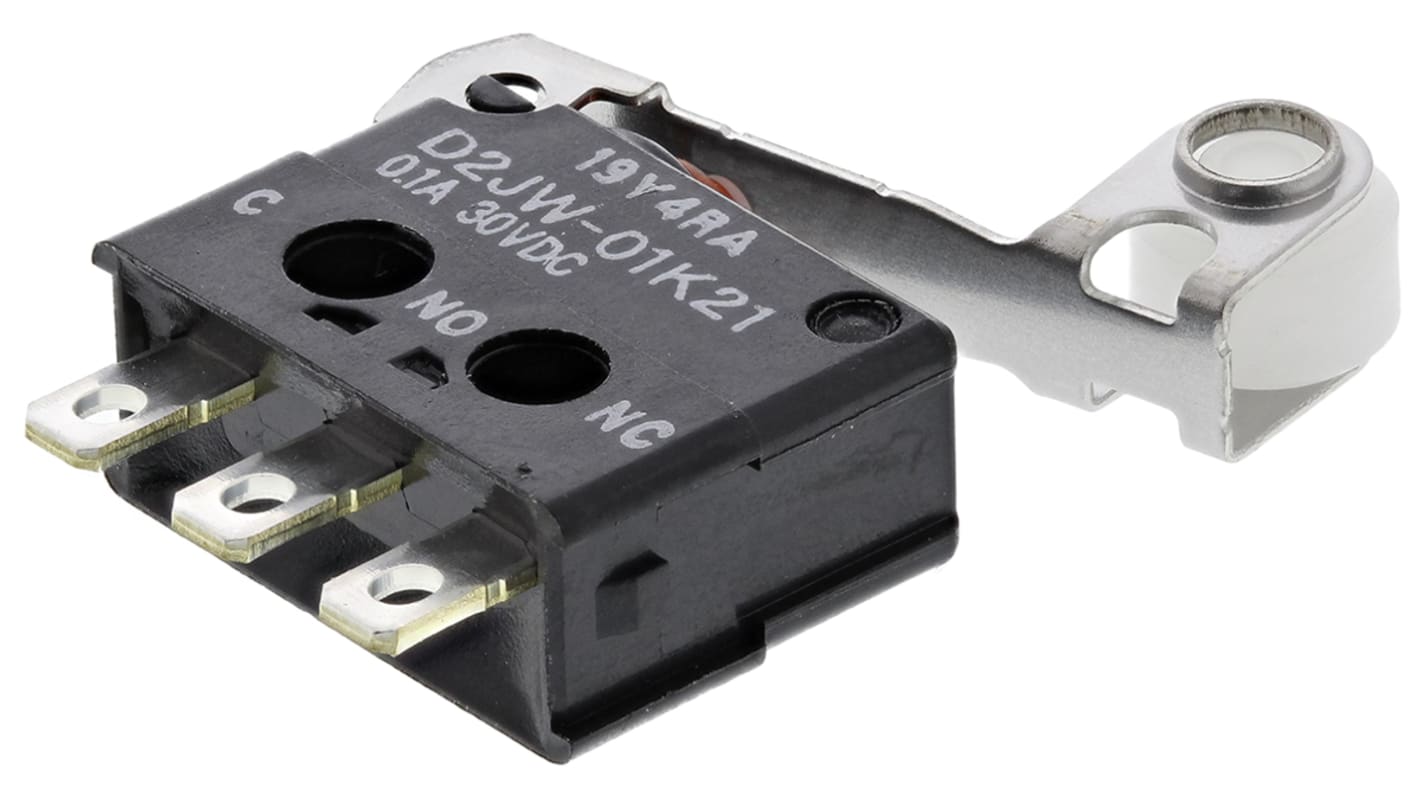

Omron Roller Lever Micro Switch, Solder Terminal, 100 mA @ 30 V dc, SPDT, IP67
- RS Stock No.:
- 616-0439
- Mfr. Part No.:
- D2JW-01K21
- Brand:
- Omron
86 In stock for delivery within 7 working day(s)
Added
Price (ex. GST) Each
$18.51
(exc. GST)
$21.29
(inc. GST)
| Units | Per unit |
| 1 - 49 | $18.51 |
| 50 - 149 | $18.34 |
| 150 - 249 | $18.00 |
| 250 - 499 | $17.56 |
| 500 + | $17.09 |
- RS Stock No.:
- 616-0439
- Mfr. Part No.:
- D2JW-01K21
- Brand:
- Omron
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Ultra-miniature Highly Sealed Microswitch
Ultra small and highly sealed coil spring operated microswitch
IEC IP50 rated (solder terminal type)
IEC IP67 rated (pre-wired type)
Contact configuration: SPDT
Contact rating: 0.1A @ 30Vdc
Gold crossbar contacts for high reliability
Operation temperature range of –40 to 85° C.
RoHS compliant
IEC IP67 rated (pre-wired type)
Contact configuration: SPDT
Contact rating: 0.1A @ 30Vdc
Gold crossbar contacts for high reliability
Operation temperature range of –40 to 85° C.
RoHS compliant
Approvals
UL, CSA, VDE, TUV
Specifications
Attribute | Value |
|---|---|
| Actuator Type | Roller Lever |
| Terminal Type | Solder |
| Contact Current Rating | 100 mA @ 30 V dc |
| Contact Configuration | SPDT-NO/NC |
| IP Rating | IP67 |
| Operating Force | 0.98 N |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Gold Alloy |
| Mechanical Life | 1000000Operations |
| Release Force | 0.2N |
| Operating Temperature Range | -40 → +85°C |
