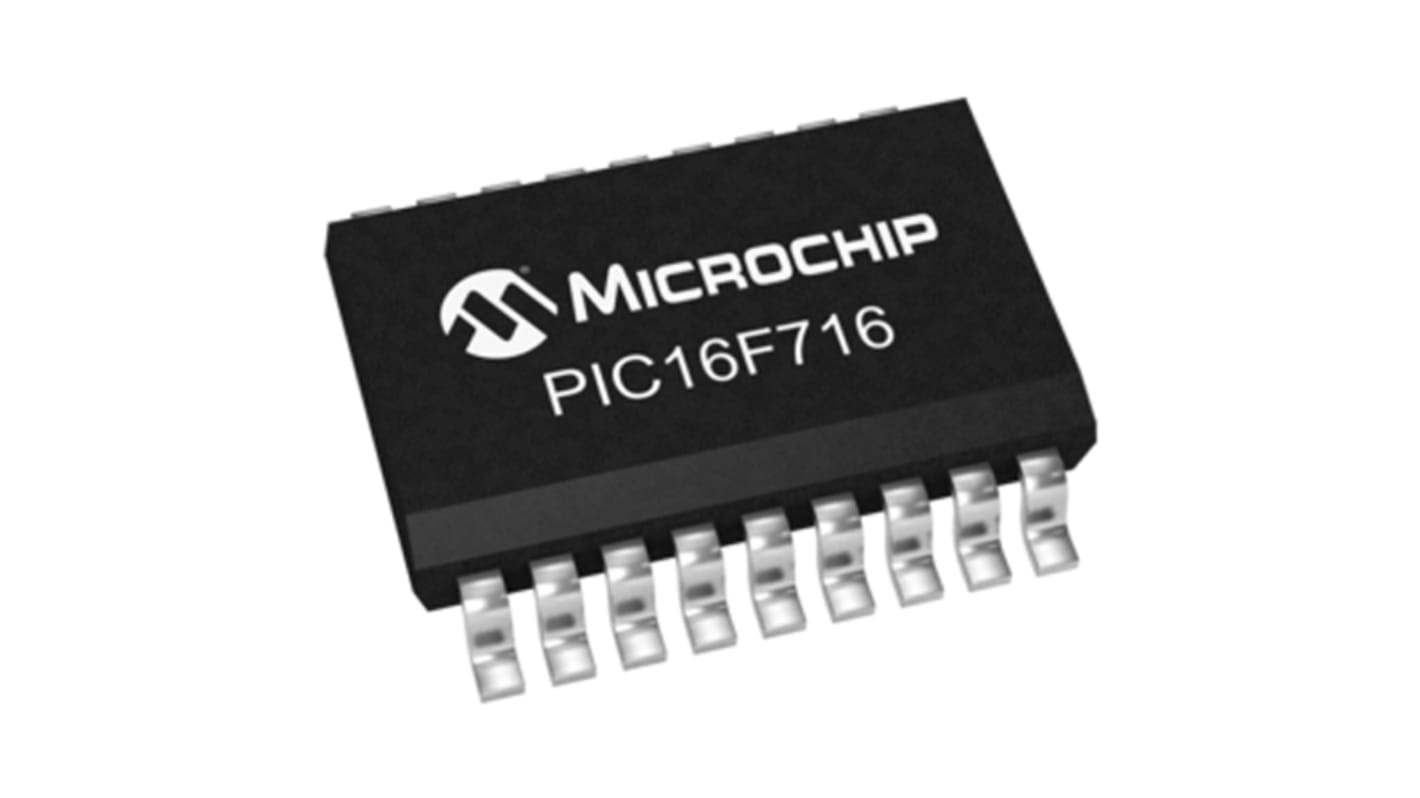

Microchip PIC16F716-I/SO, 8bit PIC Microcontroller, PIC16F, 20MHz, 3.5 kB Flash, 18-Pin SOIC

RS Stock No.:: 400-299
Mfr. Part No.:: PIC16F716-I/SO
Brand:: Microchip

Microchip PIC16F716-I/SO, 8bit PIC Microcontroller, PIC16F, 20MHz, 3.5 kB Flash, 18-Pin SOIC

Bulk discount available

Subtotal (1 pack of 5 units)**

$14.53

(exc. GST)

$16.71

(inc. GST)

On back order for despatch 26/05/2025, delivery within 7 working days from despatch date.*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60 ex GST

Units	Per unit	Per Pack**
5 - 5	$2.906	$14.53
10 - 15	$2.882	$14.41
20 +	$2.832	$14.16

**price indicative

RS Stock No.:: 400-299
Mfr. Part No.:: PIC16F716-I/SO
Brand:: Microchip

Datasheet

Attribute	Value
Family Name	PIC16F
Package Type	SOIC
Mounting Type	Surface Mount
Pin Count	18
Device Core	PIC
Data Bus Width	8bit
Program Memory Size	3.5 kB
Maximum Frequency	20MHz
RAM Size	128 B
USB Channels	0
Number of PWM Units	1 x 10 bit
Number of SPI Channels	0
Number of USART Channels	0
Number of UART Channels	0
Number of CAN Channels	0
Number of I2C Channels	0
Typical Operating Supply Voltage	2 → 5.5 V
Number of LIN Channels	0
Dimensions	11.55 x 7.5 x 2.35mm
Program Memory Type	Flash
Height	2.35mm
Minimum Operating Temperature	-40 °C
Maximum Number of Ethernet Channels	0
Number of ADC Units	1
Instruction Set Architecture	RISC
Number of Ethernet Channels	0
Number of PCI Channels	0
Maximum Operating Temperature	+85 °C
ADCs	1 (4 x 8 bit)
Width	7.5mm
Pulse Width Modulation	1(ECCP)
Length	11.55mm

Microchip PIC16F716-I/SO, 8bit PIC Microcontroller, PIC16F, 20MHz, 3.5 kB Flash, 18-Pin SOIC

FREE delivery for orders over $60 ex GST

PIC16F716 8-Bit Flash Microcontrollers

Microcontroller Features

Peripherals
