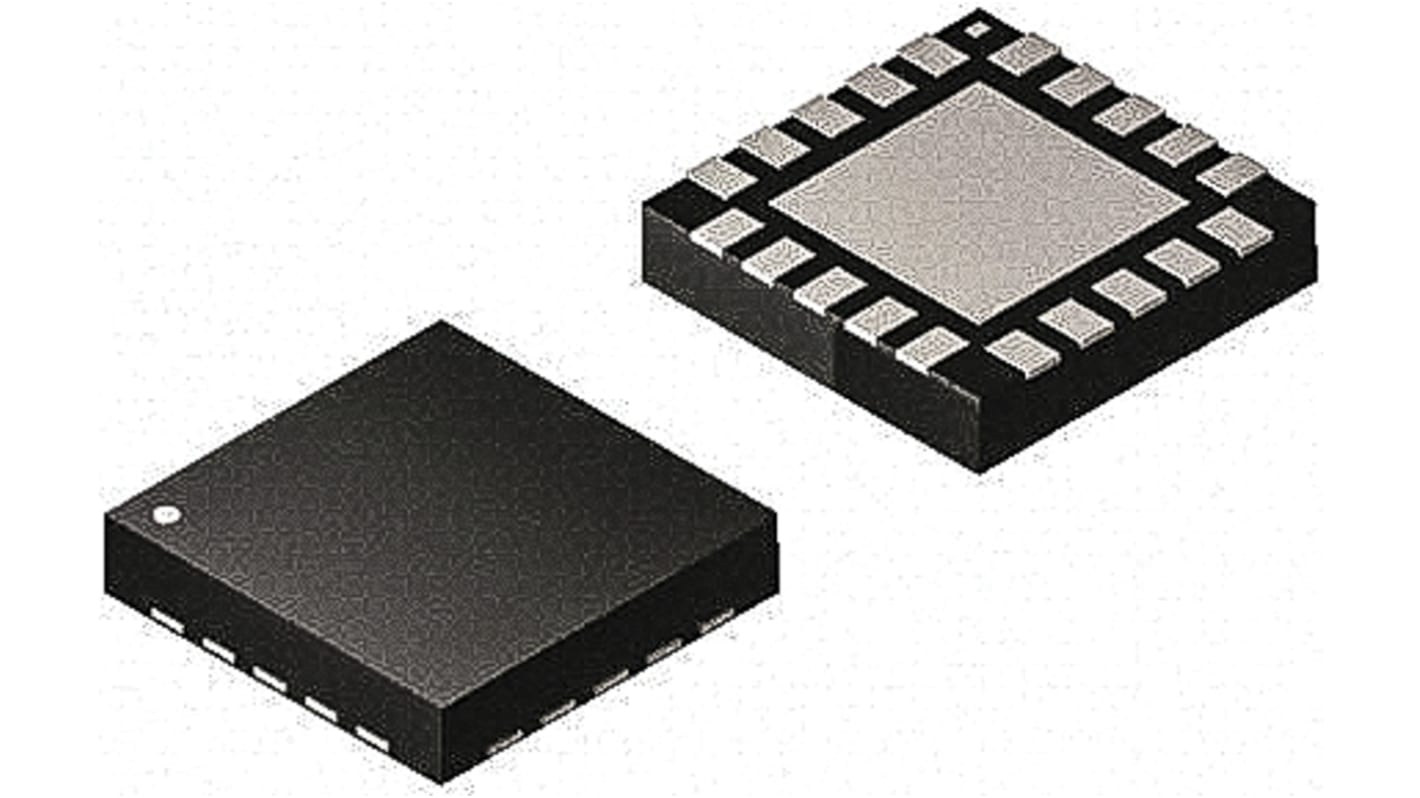

Microchip, 8bit AVR, ATtiny406 Microcontroller, 20MHz, 4 kB Flash, 20-Pin QFN
- RS Stock No.:
- 168-2794
- Mfr. Part No.:
- ATTINY406-MFR
- Brand:
- Microchip
Subtotal (1 pack of 10 units)*
$12.62
(exc. GST)
$14.51
(inc. GST)
FREE delivery for orders over $60.00 ex GST
- 16,810 unit(s) ready to ship from another location
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 1490 | $1.262 | $12.62 |
| 1500 + | $1.232 | $12.32 |
*price indicative
- RS Stock No.:
- 168-2794
- Mfr. Part No.:
- ATTINY406-MFR
- Brand:
- Microchip
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Family Name | ATtiny406 | |
| Package Type | QFN | |
| Mounting Type | Surface Mount | |
| Pin Count | 20 | |
| Device Core | AVR | |
| Data Bus Width | 8bit | |
| Program Memory Size | 4 kB | |
| Maximum Frequency | 20MHz | |
| RAM Size | 512 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 0 | |
| Number of SPI Channels | 1 | |
| Number of USART Channels | 0 | |
| Typical Operating Supply Voltage | 5.5 V | |
| Number of I2C Channels | 1 | |
| Number of CAN Channels | 0 | |
| Number of UART Channels | 1 | |
| Length | 3mm | |
| ADCs | 12 x 10 bit | |
| Program Memory Type | Flash | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Number of Ethernet Channels | 0 | |
| Instruction Set Architecture | RISC | |
| Number of ADC Units | 1 | |
| Width | 3mm | |
| Dimensions | 3 x 3 x 0.85mm | |
| Pulse Width Modulation | 0 | |
| Number of PCI Channels | 0 | |
| Number of Ethernet Channels | 0 | |
| Height | 0.85mm | |
| Number of LIN Channels | 0 | |
| Maximum Operating Temperature | +125 °C | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Family Name ATtiny406 | ||
Package Type QFN | ||
Mounting Type Surface Mount | ||
Pin Count 20 | ||
Device Core AVR | ||
Data Bus Width 8bit | ||
Program Memory Size 4 kB | ||
Maximum Frequency 20MHz | ||
RAM Size 512 kB | ||
USB Channels 0 | ||
Number of PWM Units 0 | ||
Number of SPI Channels 1 | ||
Number of USART Channels 0 | ||
Typical Operating Supply Voltage 5.5 V | ||
Number of I2C Channels 1 | ||
Number of CAN Channels 0 | ||
Number of UART Channels 1 | ||
Length 3mm | ||
ADCs 12 x 10 bit | ||
Program Memory Type Flash | ||
Minimum Operating Temperature -40 °C | ||
Maximum Number of Ethernet Channels 0 | ||
Instruction Set Architecture RISC | ||
Number of ADC Units 1 | ||
Width 3mm | ||
Dimensions 3 x 3 x 0.85mm | ||
Pulse Width Modulation 0 | ||
Number of PCI Channels 0 | ||
Number of Ethernet Channels 0 | ||
Height 0.85mm | ||
Number of LIN Channels 0 | ||
Maximum Operating Temperature +125 °C | ||
135 instructions
Hardware multiplier
Ultra Low Power (ULP)
Three sleep modes:
Idle
Standby
Power Down
6 Channels Event System
Configurable Custom Logic (CCL)
12 Channel 10-bit ADC with Voltage Reference
Comparators
2x 16-bit Timer (TCA / TCB)
Cyclical Redundancy Check (CRC/SCAN)
Watchdog Timer (WDT)
Power-On Reset (POR)
Brown-Out Detection (BOD)
Single pin programming and debugging interface (UPDI)
Operation Voltage: 1.8V – 5.5V
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
