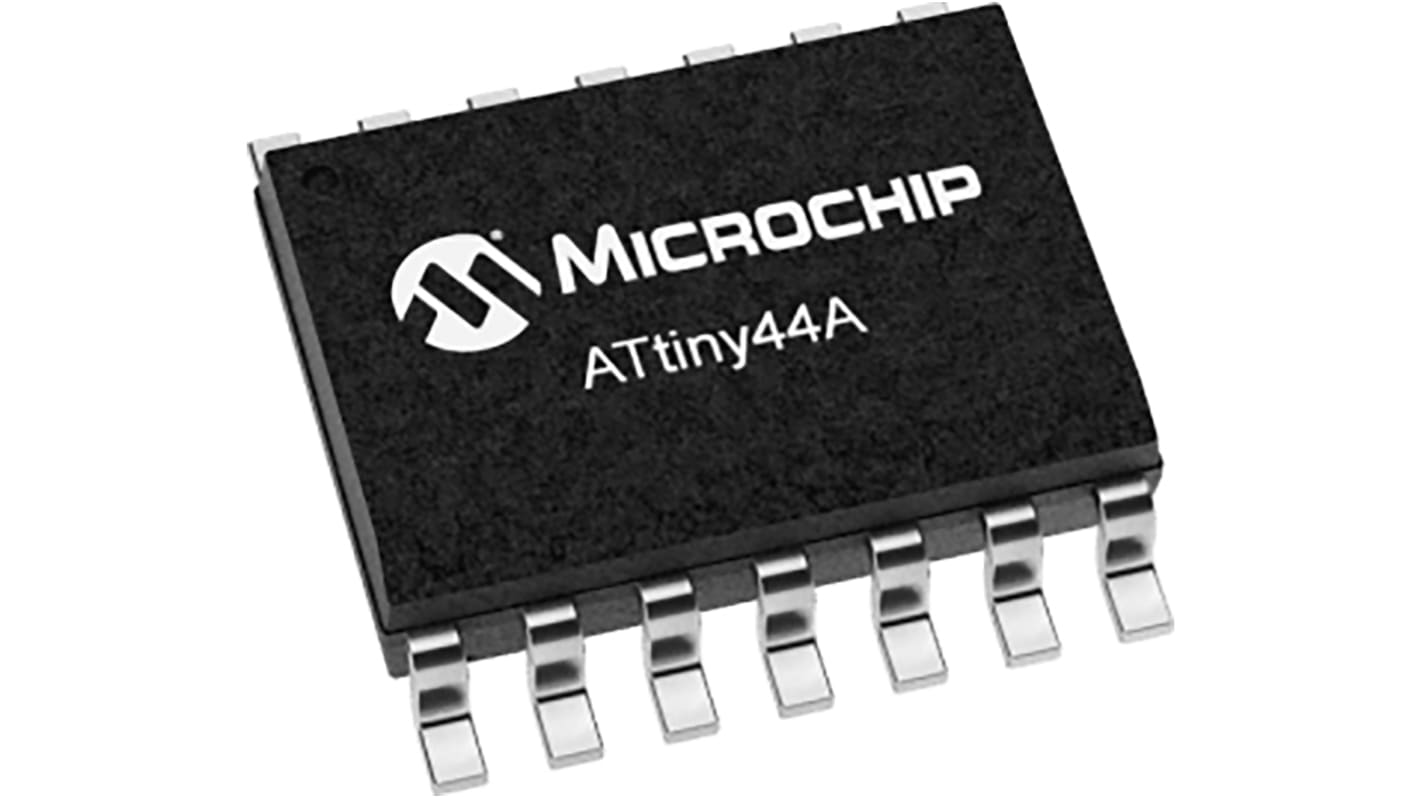

Microchip ATTINY44A-SSUR, 8bit AVR Microcontroller, ATtiny44A, 20MHz, 4 kB Flash, 14-Pin SOIC
- RS Stock No.:
- 177-2797
- Mfr. Part No.:
- ATTINY44A-SSUR
- Brand:
- Microchip
5910 In stock for delivery within 7 working day(s)
Price (ex. GST) Each (On a Reel of 3000)
$1.679
(exc. GST)
$1.931
(inc. GST)
Units | Per unit | Per Reel* |
---|---|---|
3000 - 12000 | $1.679 | $5,037.00 |
15000 + | $1.511 | $4,533.00 |
*price indicative
- RS Stock No.:
- 177-2797
- Mfr. Part No.:
- ATTINY44A-SSUR
- Brand:
- Microchip
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
The high-performance Microchip picoPower 8-bit AVR RISC-based microcontroller combines 4KB ISP flash memory, 256-Byte EEPROM, 256B SRAM, 12 general purpose I/O lines, 32 general purpose working registers, an 8-bit timer/counter with two PWM channels, a 16-bit timer/counter with two PWM channels, internal and external interrupts, an 8-channel 10-bit A/D converter, programmable gain stage (1x, 20x) for 12 differential ADC channel pairs, programmable watchdog timer with internal oscillator, internal calibrated oscillator, and four software selectable power saving modes. The device operates between 1.8-5.5 volts. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Family Name | ATtiny44A |
Package Type | SOIC |
Mounting Type | Surface Mount |
Pin Count | 14 |
Device Core | AVR |
Data Bus Width | 8bit |
Program Memory Size | 4 kB |
Maximum Frequency | 20MHz |
RAM Size | 256 B |
USB Channels | 0 |
Number of PWM Units | 1 x 8 bit |
Number of SPI Channels | 1 |
Typical Operating Supply Voltage | 5.5 (Maximum) V |
Number of I2C Channels | 1 |
Number of USART Channels | 0 |
Number of UART Channels | 0 |
Number of CAN Channels | 0 |
Maximum Operating Temperature | +85 °C |
Number of ADC Units | 1 |
Length | 8.74mm |
Minimum Operating Temperature | -40 °C |
Maximum Number of Ethernet Channels | 0 |
Height | 1.5mm |
ADCs | 8 x 10 bit |
Instruction Set Architecture | RISC |
Number of PCI Channels | 0 |
Number of Ethernet Channels | 0 |
Program Memory Type | Flash |
Pulse Width Modulation | 1 (2 x 8 bit) |
Dimensions | 8.74 x 3.99 x 1.5mm |
Number of LIN Channels | 0 |
Width | 3.99mm |
