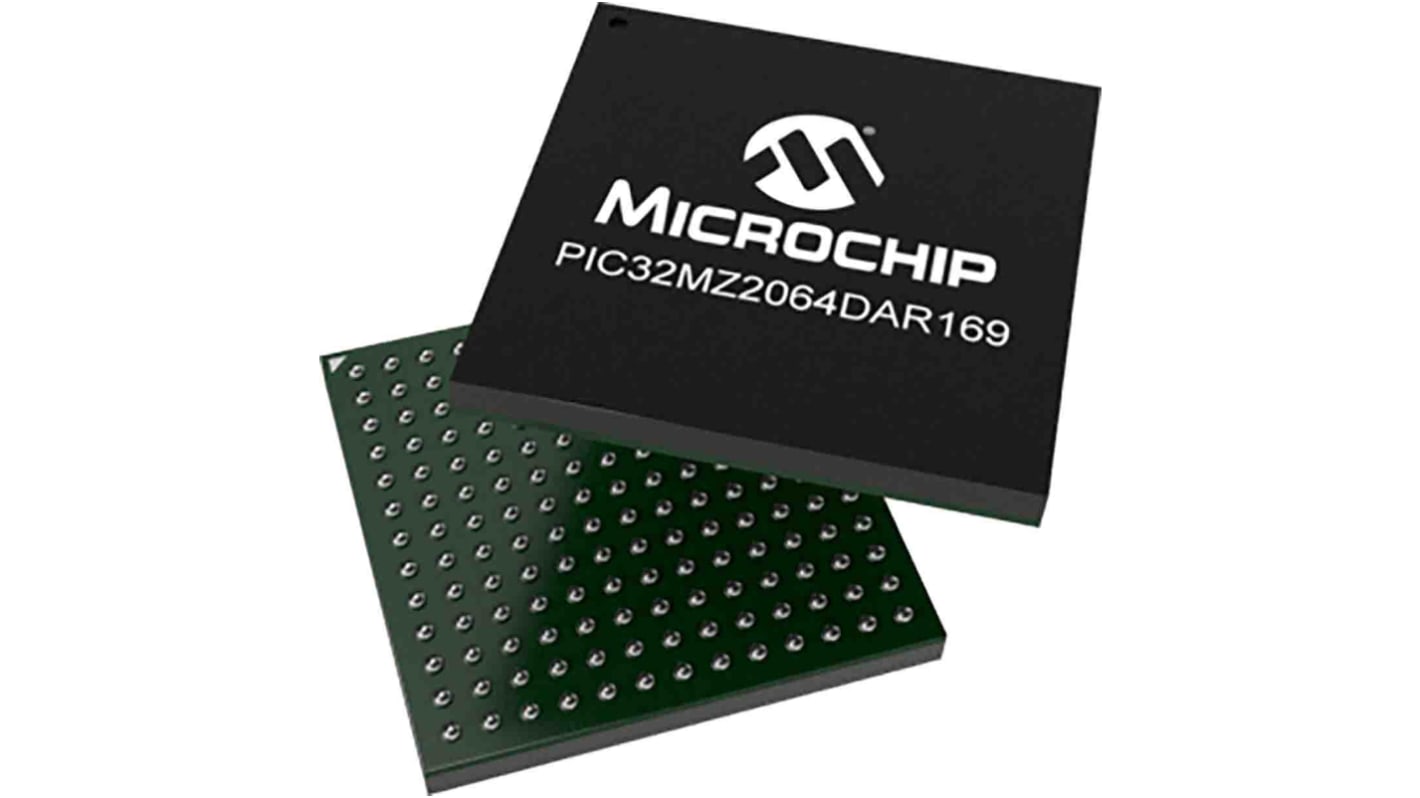

Microchip, 32bit MIPS32® MicroAptiv™, PIC32MZ Microcontroller, 200MHz, 2048 kB Flash, 169-Pin LFBGA

View all Microcontrollers
Bulk discount available

Subtotal (1 unit)*

$39.57

(exc. GST)

$45.51

(inc. GST)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 43$39.57
44 - 87$39.16
88 +$37.99

*price indicative

Packaging Options:
RS Stock No.:
188-0221
Mfr. Part No.:
PIC32MZ2064DAR169-I/6J
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Family Name

PIC32MZ

Package Type

LFBGA

Mounting Type

Surface Mount

Pin Count

169

Device Core

MIPS32® MicroAptiv™

Data Bus Width

32bit

Program Memory Size

2048 kB

Maximum Frequency

200MHz

RAM Size

640 kB

USB Channels

1

Number of PWM Units

1

Number of SPI Channels

6

Number of UART Channels

6

Number of I2C Channels

5

Number of USART Channels

0

Typical Operating Supply Voltage

2.2 → 3.6 V

Number of CAN Channels

2

Instruction Set Architecture

MIPS32

Automotive Standard

AEC-Q100

Number of ADC Units

1

Width

11mm

Length

11mm

ADCs

45 x 12 bit

Data Rate

100Mbit/s

Maximum Number of Ethernet Channels

1

Maximum Operating Temperature

+85 °C

Minimum Operating Temperature

-40 °C

Pulse Width Modulation

1 (9 Channel)

Dimensions

11 x 11 x 1.06mm

Height

1.06mm

Number of PCI Channels

0

Number of Ethernet Channels

1

Number of LIN Channels

0

Program Memory Type

Flash

PIC32MZ DA series offers MPU like performance with ease of design of an MCU for GUI designs with it’s 2MB Flash and 640KB of SRAM, available on-chip 32MB or 128MB externally addressable DDR2 DRAM, integrated Graphics Controller, Graphics Processor, 200 MHz speed, 12-bit 18 MSPS ADC module with up to 45 analog inputs, CAN and HS USB.

200 MHz/330 DMIPS, MIPS32 microAptiv core
Dual Panel Flash for live update support
12-bit, 18 MSPS, 45-channel ADC module
Memory Management Unit for optimum embedded OS execution
microMIPS mode for up to 35% code compression
CAN, UART, I2C, PMP, EBI, SQI & Analogue Comparators

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
