Microchip, 8 bit PIC, PIC12F Microcontroller, 20 MHz, 1.75kB FLASH, 8-Pin DIP
- RS Stock No.:
- 236-8886
- Mfr. Part No.:
- PIC12F629-E/P
- Brand:
- Microchip

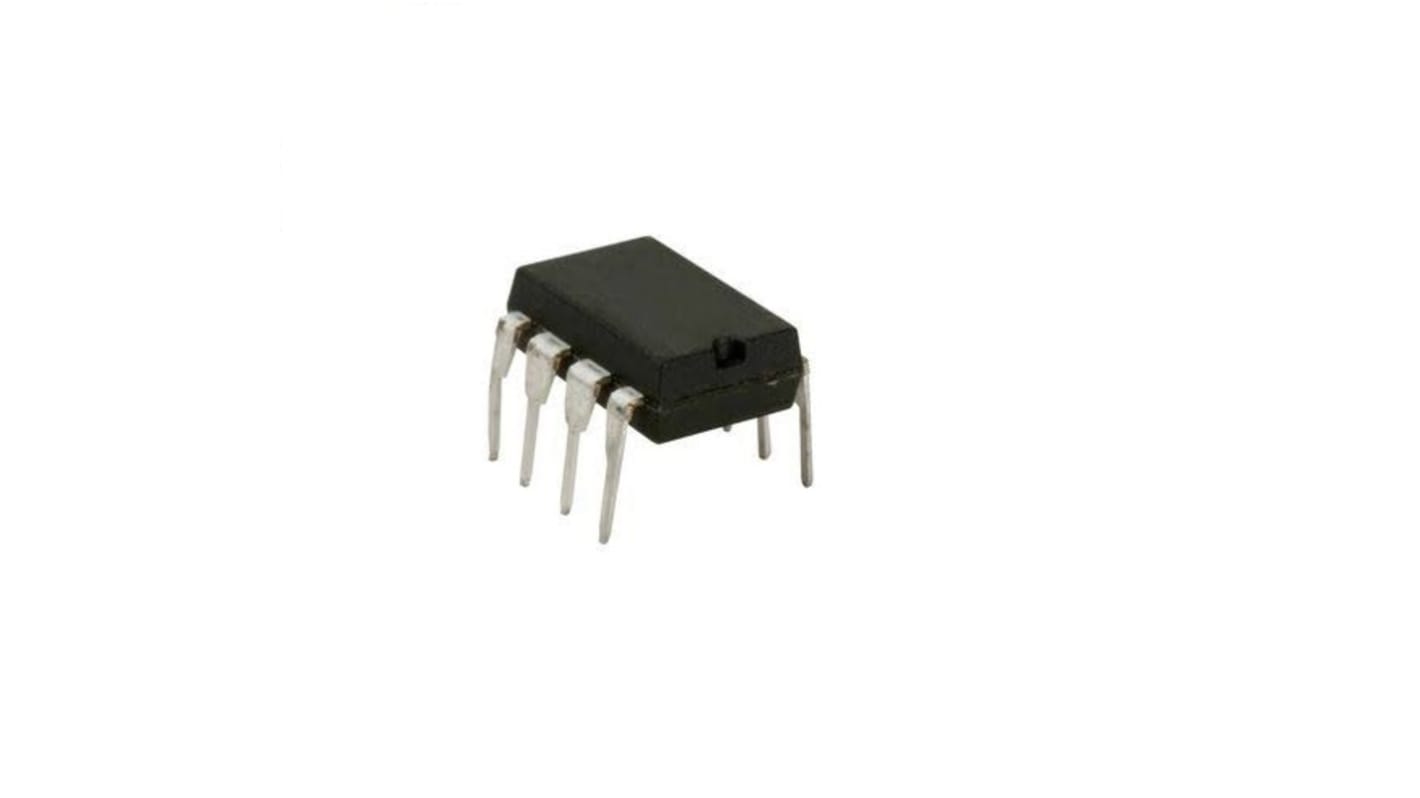

This image is representative of the product range
Bulk discount available
Subtotal (1 tube of 60 units)*
$189.12
(exc. GST)
$217.50
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 720 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 60 - 240 | $3.152 | $189.12 |
| 300 + | $2.837 | $170.22 |
*price indicative
- RS Stock No.:
- 236-8886
- Mfr. Part No.:
- PIC12F629-E/P
- Brand:
- Microchip
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | Microcontroller | |
| Series | PIC12F | |
| Package Type | DIP | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Device Core | PIC | |
| Data Bus Width | 8bit | |
| Interface Type | GPIO | |
| Program Memory Size | 1.75kB | |
| Maximum Clock Frequency | 20MHz | |
| RAM Size | 64bit | |
| Maximum Supply Voltage | 5.5V | |
| Analogue Comparators | 1 | |
| Minimum Operating Temperature | -40°C | |
| Number of Programmable I/Os | 6 | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS Compliant | |
| Width | 6.35 mm | |
| Length | 5.33mm | |
| Height | 1.98mm | |
| Minimum Supply Voltage | 2.5V | |
| Number of Timers | 1 | |
| Program Memory Type | FLASH | |
| ADCs | 10 bit | |
| Automotive Standard | No | |
| Instruction Set Architecture | RISC | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type Microcontroller | ||
Series PIC12F | ||
Package Type DIP | ||
Mount Type Surface | ||
Pin Count 8 | ||
Device Core PIC | ||
Data Bus Width 8bit | ||
Interface Type GPIO | ||
Program Memory Size 1.75kB | ||
Maximum Clock Frequency 20MHz | ||
RAM Size 64bit | ||
Maximum Supply Voltage 5.5V | ||
Analogue Comparators 1 | ||
Minimum Operating Temperature -40°C | ||
Number of Programmable I/Os 6 | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS Compliant | ||
Width 6.35 mm | ||
Length 5.33mm | ||
Height 1.98mm | ||
Minimum Supply Voltage 2.5V | ||
Number of Timers 1 | ||
Program Memory Type FLASH | ||
ADCs 10 bit | ||
Automotive Standard No | ||
Instruction Set Architecture RISC | ||
The Microchip 8-Pin flash based 8 bit CMOS microcontroller has only 35 instructions to learn all single-cycle instructions except branches. It has wide operating voltage range from 2.0 V to 5.5 V. It has 8-Level deep hardware stack and direct, indirect, and relative addressing modes. The 6 I/O pins are with Individual direction control and high current sink/source for direct LED drive.
Power saving sleep mode
Wide operating voltage range 2.0 V to 5.5 V
Industrial and extended temperature range
low power on reset (POR)
Power up timer (PWRT) and Oscillator start up timer (OST)
Brown-out Detect (BOD)
Watchdog timer (WDT) with independent
Oscillator for reliable operation
Multiplexed MCLR/input pin
Interrupt-on-pin change
Individual programmable weak pull-ups
Programmable code protection
