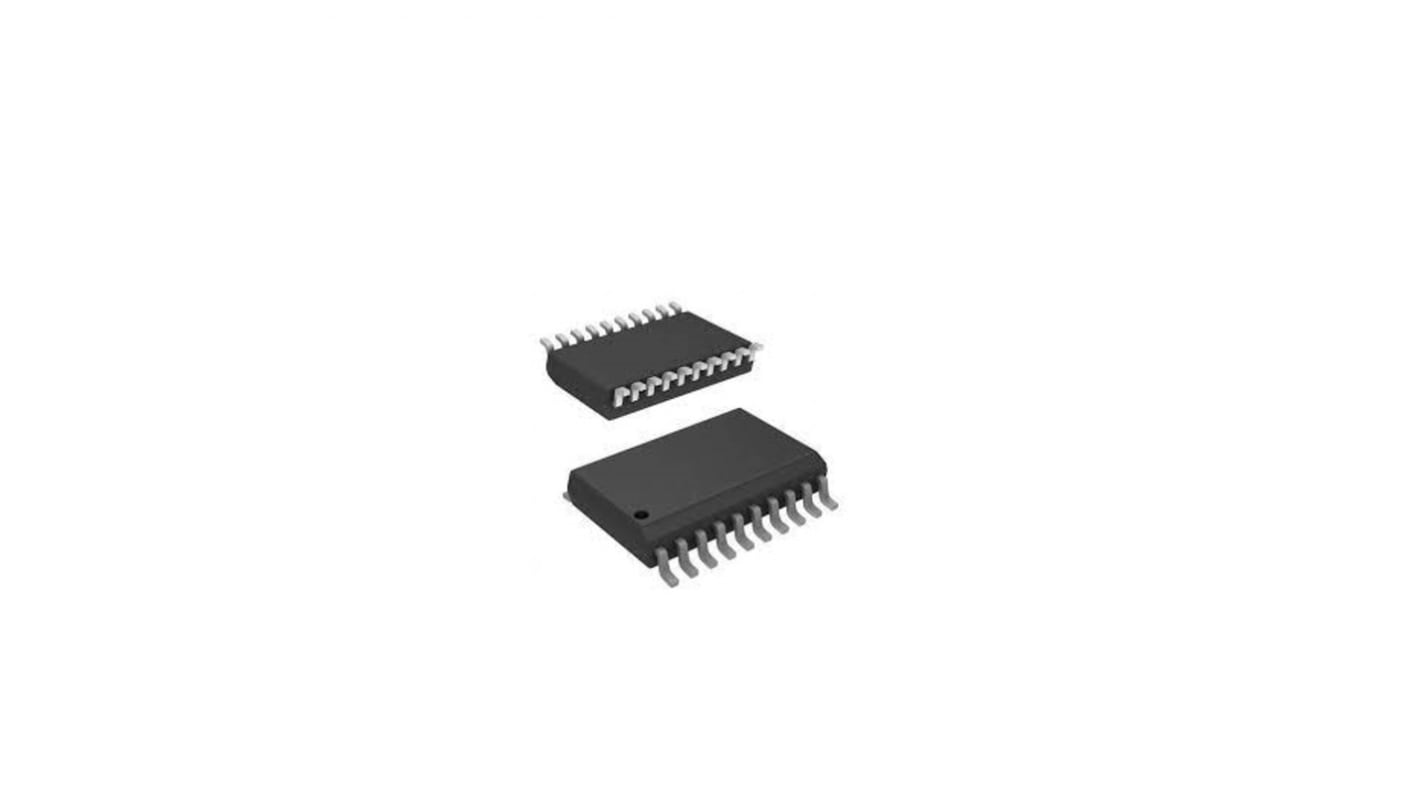

Microchip, 8 bit PIC, PIC XLP 16F Microcontroller, 32 MHz, 7kB FLASH, 20-Pin SOIC

View all Microcontrollers
Bulk discount available

Subtotal (1 tube of 38 units)*

$77.026

(exc. GST)

$88.578

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 456 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
38 - 76$2.027$77.03
114 - 532$2.009$76.34
570 +$1.808$68.70

*price indicative

RS Stock No.:
236-8892
Mfr. Part No.:
PIC16F15344-I/SO
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Product Type

Microcontroller

Series

PIC XLP 16F

Package Type

SOIC

Mount Type

Surface

Pin Count

20

Device Core

PIC

Data Bus Width

8bit

Program Memory Size

7kB

Maximum Clock Frequency

32MHz

Maximum Supply Voltage

5.5V

Analogue Comparators

2

Minimum Operating Temperature

-40°C

DACs

1 x 5 Bit

Number of Programmable I/Os

18

Maximum Operating Temperature

85°C

Standards/Approvals

REACH, RoHS3

Width

7.5 mm

Minimum Supply Voltage

2.3V

ADCs

17 x 10 Bit

Automotive Standard

No

Instruction Set Architecture

RISC

Number of Timers

2

Program Memory Type

FLASH

The Microchip microcontroller features analog, core independent peripherals and communication peripherals, combined with eXtreme low power (XLP) technology for a wide range of general purpose and low power applications. The devices feature multiple PWMs, multiple communication, temperature sensor, and memory features like Memory Access Partition (MAP) to support customers in data protection and bootloader applications, and Device Information Area (DIA) which stores factory calibration values to help improve temperature sensor accuracy.

C Compiler optimized RISC architecture

DC 32 MHz clock input

125 ns minimum instruction cycle

Interrupt capability

16-Level deep hardware stack

8 bit Timer2 with hardware limit timer (HLT)

16-bit Timer0/1

Low current power on reset (POR)

Configurable Power up timer (PWRTE)

Brown out reset (BOR)

low power BOR (LPBOR) Option
