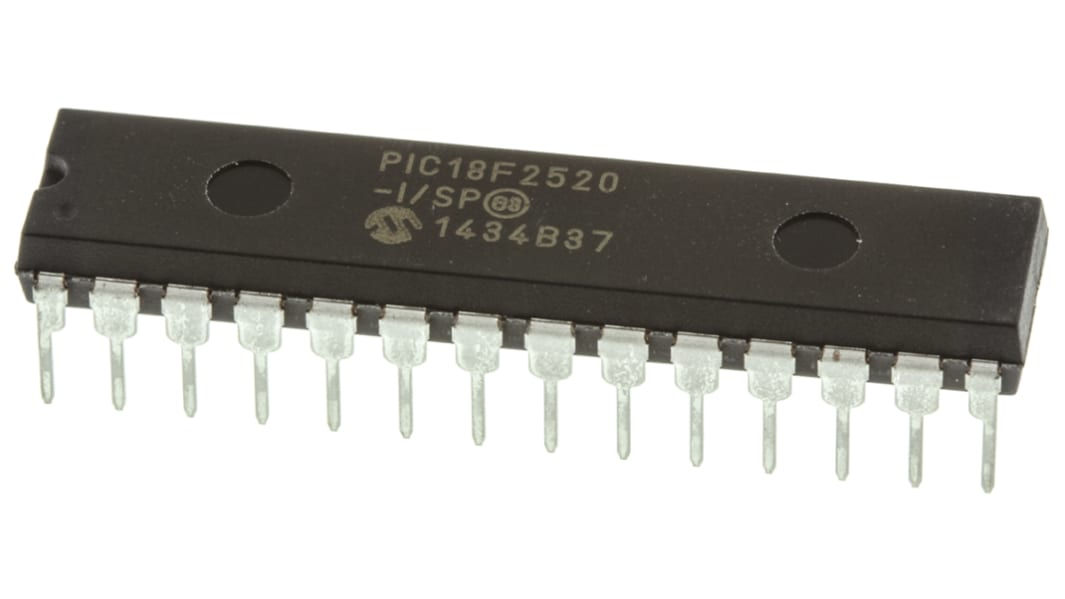

    Microchip PIC18F2520-I/SP, 8bit PIC Microcontroller, PIC18F, 40MHz, 32 kB, 256 B Flash, 28-Pin SPDIP

    Bulk discount available

    Subtotal (1 unit)**

    $14.59

    (exc. GST)

    $16.78

    (inc. GST)

    Add to Basket
    Select or type quantity
    37 In stock for delivery within 7 working day(s)*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Real time qty checker
    Units
    Per unit
    1 - 3$14.59
    4 - 7$14.48
    8 +$14.33

    **price indicative

    Packaging Options:
    RS Stock No.:
    623-0667
    Mfr. Part No.:
    PIC18F2520-I/SP
    Brand:
    Microchip
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Microchip

    Family Name

    PIC18F

    Package Type

    SPDIP

    Mounting Type

    Through Hole

    Pin Count

    28

    Device Core

    PIC

    Data Bus Width

    8bit

    Program Memory Size

    32 kB, 256 B

    Maximum Frequency

    40MHz

    RAM Size

    1.536 kB

    USB Channels

    0

    Number of PWM Units

    2

    Number of SPI Channels

    1

    Number of UART Channels

    0

    Number of I2C Channels

    1

    Number of CAN Channels

    0

    Typical Operating Supply Voltage

    4.2 to 5.5 V

    Number of USART Channels

    1

    Number of Ethernet Channels

    0

    Number of ADC Units

    1

    Width

    0.295in

    Pulse Width Modulation

    2(CCP)

    Instruction Set Architecture

    RISC

    Number of PCI Channels

    0

    Dimensions

    1.4 x 0.295 x 0.15in

    ADCs

    10 x 10 bit

    Length

    35.56mm

    Program Memory Type

    Flash

    Maximum Operating Temperature

    +85 °C

    Number of LIN Channels

    0

    Height

    3.81mm

    Minimum Operating Temperature

    -40 °C
