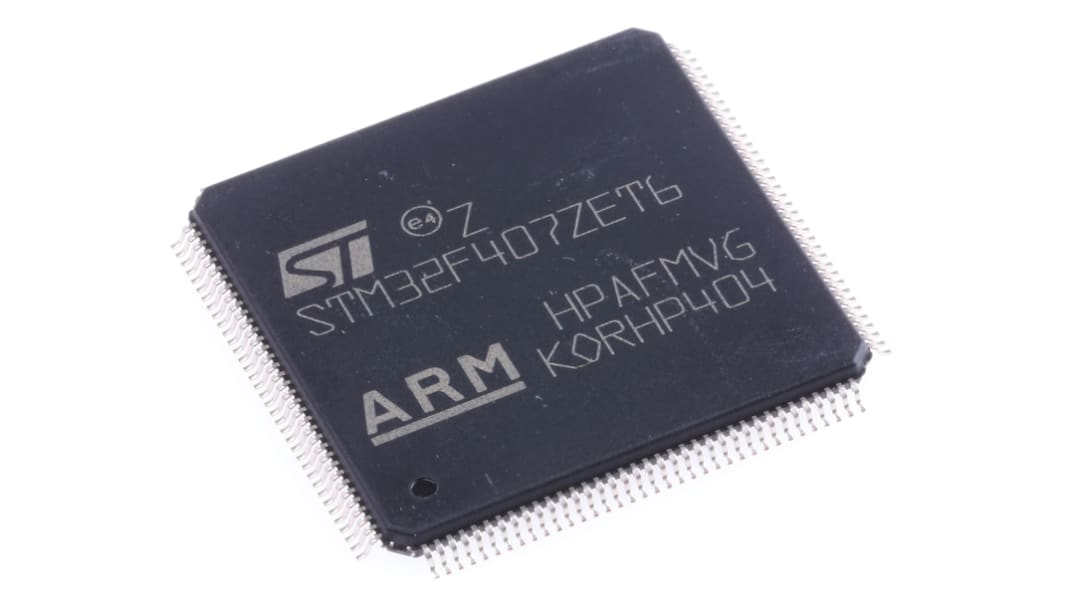

STMicroelectronics STM32F407ZET6, 32bit ARM Cortex M4 Microcontroller, STM32F4, 168MHz, 512 kB Flash, 144-Pin LQFP

RS Stock No.:: 795-7079
Mfr. Part No.:: STM32F407ZET6
Brand:: STMicroelectronics

STMicroelectronics STM32F407ZET6, 32bit ARM Cortex M4 Microcontroller, STM32F4, 168MHz, 512 kB Flash, 144-Pin LQFP

1 / 1

Subtotal (1 unit)**

$21.02

(exc. GST)

$24.17

(inc. GST)

3 In stock for delivery within 7 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60 ex GST

Real time qty checker

Units	Per unit
1 +	$21.02

**price indicative

RS Stock No.:: 795-7079
Mfr. Part No.:: STM32F407ZET6
Brand:: STMicroelectronics

STM32F407/417 Microcontrollers, STMicroelectronics

The STM32 F407/417 high performance ARM^®Cortex™ M4 based microcontrollers integrate innovative peripherals with 168 MHz operating frequency, in addition to this it has an Ethernet MAC and camera interface for CMOS sensors. The STM32 F407/417 32-bit Flash MCUs feature a Floating point unit (FPU) with digital signal processing (DSP) instructions and a memory protection unit (MPU) which improves application security. ST’s STM32F417 microcontroller incorporates a crypto/hash processor providing hardware acceleration for AES 128, 192, 256, Triple DES, and hash (MD5, SHA-1)

STMicroelectronics STM32 F407/417 high performance and industry standard core architecture is supplied with enhanced peripherals and I/Os that are connected. They include ADCs, DACs, a RTC, 16-bit timers including two PWM timers for motor control, 32-bit timers. As well as a true number random generator (RNG). In addition a set of power saving modes allowing low-power application designs. They will cover a wide range of applications which include motor drive and application control, Industrial applications: Inverters, PLC, scanners, HVAC, video intercom, Home audio appliances and Medical equipment.

168MHz CPU/210DMIPS
ART Accelerator (dynamic power scaling)
12-bit DACs, 12-bit ADCs
Timers: 16-bit and 32-bit
Temperature range: –40 to +85 °C and –40 to +105 °C
Power supply 1.8 to 3.6 V
Standard and advanced communication;
I²Cs, SPIs, I²Ss full duplex (dedicated internal audio PLL)
USARTs; UARTs
USB OTG FS; USB OTG HS, CANs
SDIO/MMC interface
True random number generator
Flash Memory: up to 1 MB, SRAM: up to 192 KB, Back up RAM: up to 4 KB
Crypto/hash processor (STM32F417 only)

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

STM32F4 Series 32-Bit ARM Cortex-M4 Microcontrollers, STMicroelectronics

The ARM Cortex-M4 based STM32 F4 series of high-performance MCUs with DSP and FPU instructions is an extension of the industry-leading STM32 portfolio towards even higher performance. Up to 180 MHz operating frequency.

Up to 2x USB 2.0 OTG FS/HS
SDIO (Secure Digital Input Output)
USART, SPI, I²C
I²S (Inter-IC Sound) + Audio PLL
16 and 32 Bit Timers
Up to 3x 12-Bit ADC
Low Voltage 1.7 V to 3.6 V

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	STMicroelectronics
	Family Name	STM32F4
	Package Type	LQFP
	Mounting Type	Surface Mount
	Pin Count	144
	Device Core	ARM Cortex M4
	Data Bus Width	32bit
	Program Memory Size	512 kB
	Maximum Frequency	168MHz
	RAM Size	192 + 4 kB
	USB Channels	2
	Number of PWM Units	1 x 32 bit
	Number of SPI Channels	3
	Number of UART Channels	2
	Number of CAN Channels	2
	Number of USART Channels	4
	Typical Operating Supply Voltage	3.6 V
	Number of I2C Channels	3
	Pulse Width Modulation	1 x 32 bit
	Number of PCI Channels	0
	ADCs	3(24 x 12 bit)
	Length	20.2mm
	Number of ADC Units	3
	Maximum Operating Temperature	+85 °C
	Program Memory Type	Flash
	Minimum Operating Temperature	-40 °C
	Instruction Set Architecture	DSP
	Maximum Number of Ethernet Channels	1
	Width	20.2mm
	Height	1.45mm
	Number of LIN Channels	0
	Number of Ethernet Channels	1
	Dimensions	20.2 x 20.2 x 1.45mm

	Select all
	Brand STMicroelectronics
	Family Name STM32F4
	Package Type LQFP
	Mounting Type Surface Mount
	Pin Count 144
	Device Core ARM Cortex M4
	Data Bus Width 32bit
	Program Memory Size 512 kB
	Maximum Frequency 168MHz
	RAM Size 192 + 4 kB
	USB Channels 2
	Number of PWM Units 1 x 32 bit
	Number of SPI Channels 3
	Number of UART Channels 2
	Number of CAN Channels 2
	Number of USART Channels 4
	Typical Operating Supply Voltage 3.6 V
	Number of I2C Channels 3
	Pulse Width Modulation 1 x 32 bit
	Number of PCI Channels 0
	ADCs 3(24 x 12 bit)
	Length 20.2mm
	Number of ADC Units 3
	Maximum Operating Temperature +85 °C
	Program Memory Type Flash
	Minimum Operating Temperature -40 °C
	Instruction Set Architecture DSP
	Maximum Number of Ethernet Channels 1
	Width 20.2mm
	Height 1.45mm
	Number of LIN Channels 0
	Number of Ethernet Channels 1
	Dimensions 20.2 x 20.2 x 1.45mm
