InnoDisk EMP2-X403-W1 Networking Module PCIe
- RS Stock No.:
- 202-9213
- Mfr. Part No.:
- EMP2-X403-W1
- Brand:
- InnoDisk
Supply shortage
Due to a global supply shortage, we don't know when this will be back in stock.
- RS Stock No.:
- 202-9213
- Mfr. Part No.:
- EMP2-X403-W1
- Brand:
- InnoDisk
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | InnoDisk | |
| Product Type | Networking Module | |
| Sub Type | Device Server | |
| Interface Type | PCIe | |
| Maximum Operating Temperature | 85°C | |
| Minimum Supply Voltage | 3.3V | |
| Maximum Supply Voltage | 3.3V | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | No | |
| Series | EMP2-X403 | |
| Height | 6mm | |
| Length | 50.95mm | |
| Select all | ||
|---|---|---|
Brand InnoDisk | ||
Product Type Networking Module | ||
Sub Type Device Server | ||
Interface Type PCIe | ||
Maximum Operating Temperature 85°C | ||
Minimum Supply Voltage 3.3V | ||
Maximum Supply Voltage 3.3V | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals No | ||
Series EMP2-X403 | ||
Height 6mm | ||
Length 50.95mm | ||
- COO (Country of Origin):
- TW

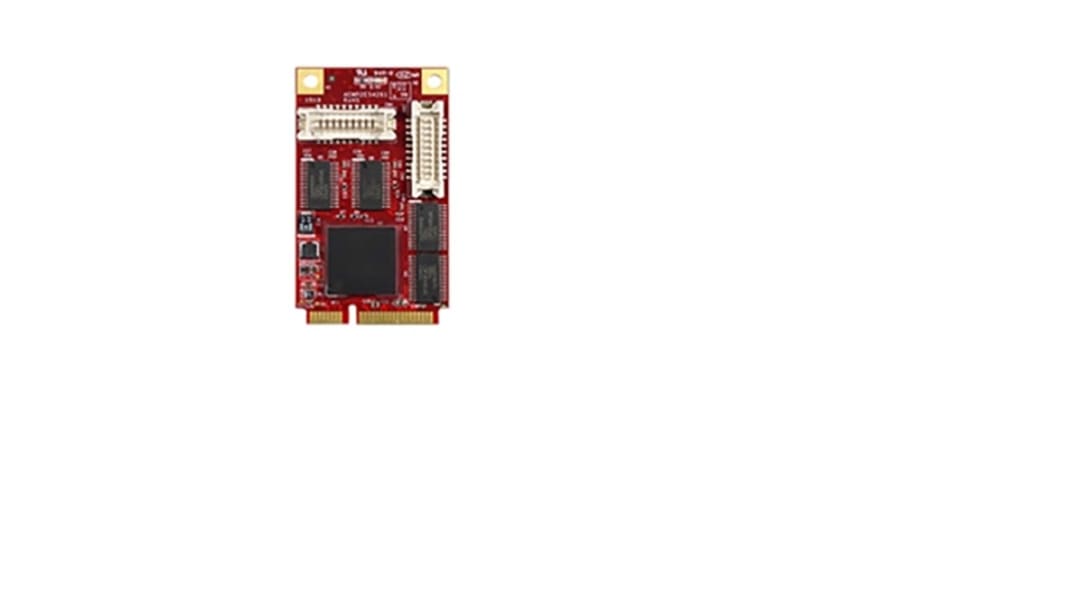

The Innodisk Serial board is mPCIe to four RS232 module. It has PCI Express 2.0 x 1 input and RS-232 at output. The product has 0.45W power consumption. The operating temperature ranges between -40°C to 85°C. The DB-9 x 4 is used at output side.
4800 to 921.6Kbps serial data rate. 16550 compatible. 256-byte FIFOs
Industrial temperature(-40 ºC to 85 ºC) operation
Flexible design with DB-9 connectors and cable
ESD up to 15KV(Electrostatic Discharge) protection circuit to prevent system damage
Supports CTS/RTS hardware flow control
30μ ” golden finger, 3 years warranty
