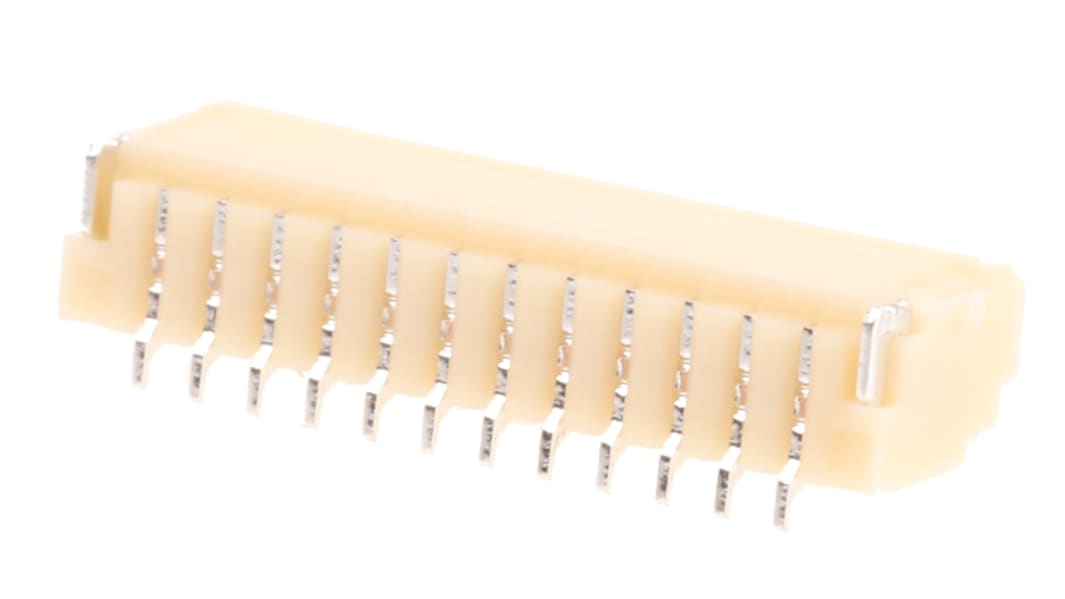

JST SH Series Straight Surface PCB Header, 12 Contact(s), 1 mm Pitch, 1 Row, Shrouded

RS Stock No.:: 502-2623
Mfr. Part No.:: BM12B-SRSS-TB-(LF)(SN)
Brand:: JST

JST SH Series Straight Surface PCB Header, 12 Contact(s), 1 mm Pitch, 1 Row, Shrouded

Bulk discount available

Subtotal (1 pack of 5 units)*

$12.55

(exc. GST)

$14.45

(inc. GST)

FREE delivery for orders over $60.00 ex GST

Temporarily out of stock

Shipping from 10 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
5 - 120	$2.51	$12.55
125 - 495	$2.482	$12.41
500 - 2495	$2.39	$11.95
2500 +	$2.294	$11.47

*price indicative

RS Stock No.:: 502-2623
Mfr. Part No.:: BM12B-SRSS-TB-(LF)(SN)
Brand:: JST

Specifications

Technical data sheets

Legislation and Compliance

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	JST
	Series	SH
	Product Type	PCB Header
	Pitch	1mm
	Current	1A
	Number of Contacts	12
	Number of Rows	1
	Orientation	Straight
	Shrouded/Unshrouded	Shrouded
	Mount Type	Surface
	Connector System	Wire-to-Board
	Contact Material	Copper Alloy
	Contact Plating	Tin
	Minimum Operating Temperature	0°C
	Termination Type	Solder
	Maximum Operating Temperature	85°C
	Standards/Approvals	No

	Select all
	Brand JST
	Series SH
	Product Type PCB Header
	Pitch 1mm
	Current 1A
	Number of Contacts 12
	Number of Rows 1
	Orientation Straight
	Shrouded/Unshrouded Shrouded
	Mount Type Surface
	Connector System Wire-to-Board
	Contact Material Copper Alloy
	Contact Plating Tin
	Minimum Operating Temperature 0°C
	Termination Type Solder
	Maximum Operating Temperature 85°C
	Standards/Approvals No

COO (Country of Origin):: JP
