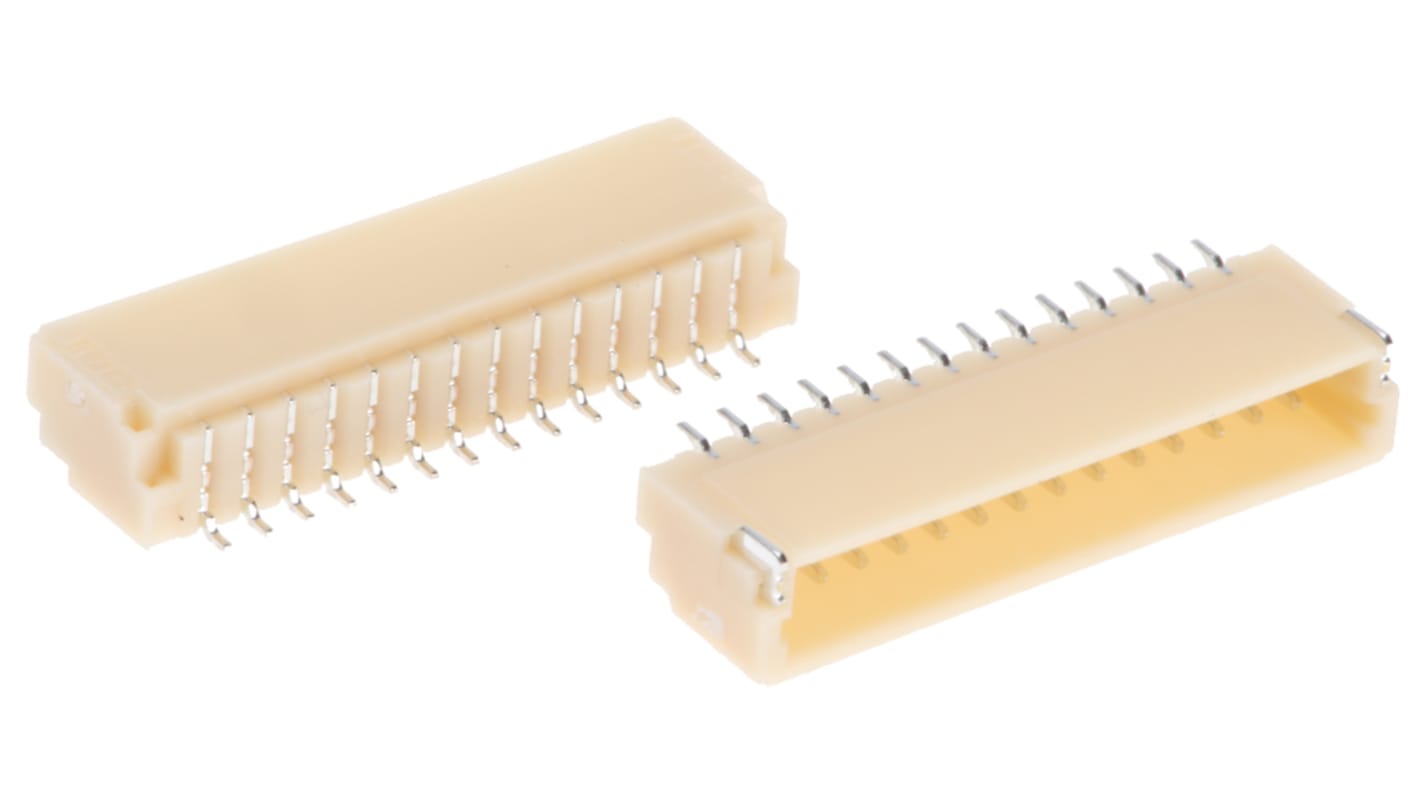

JST SH Series Right Angle Surface PCB Header, 14 Contact(s), 1 mm Pitch, 1 Row, Shrouded

RS Stock No.:: 502-2702
Mfr. Part No.:: SM14B-SRSS-TB-(LF)(SN)
Brand:: JST

JST SH Series Right Angle Surface PCB Header, 14 Contact(s), 1 mm Pitch, 1 Row, Shrouded

Currently unavailable

Sorry, we don't know when this will be back in stock.

RS Stock No.:: 502-2702
Mfr. Part No.:: SM14B-SRSS-TB-(LF)(SN)
Brand:: JST

Specifications

Technical data sheets

Legislation and Compliance

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	JST
	Product Type	PCB Header
	Series	SH
	Current	1A
	Pitch	1mm
	Number of Contacts	14
	Number of Rows	1
	Orientation	Right Angle
	Shrouded/Unshrouded	Shrouded
	Mount Type	Surface
	Connector System	Wire-to-Board
	Contact Material	Copper Alloy
	Contact Plating	Tin
	Termination Type	Solder
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	85°C
	Standards/Approvals	No

	Select all
	Brand JST
	Product Type PCB Header
	Series SH
	Current 1A
	Pitch 1mm
	Number of Contacts 14
	Number of Rows 1
	Orientation Right Angle
	Shrouded/Unshrouded Shrouded
	Mount Type Surface
	Connector System Wire-to-Board
	Contact Material Copper Alloy
	Contact Plating Tin
	Termination Type Solder
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 85°C
	Standards/Approvals No

SH Series

COO (Country of Origin):: JP

JST SH Series Right Angle Surface PCB Header, 14 Contact(s), 1 mm Pitch, 1 Row, Shrouded
