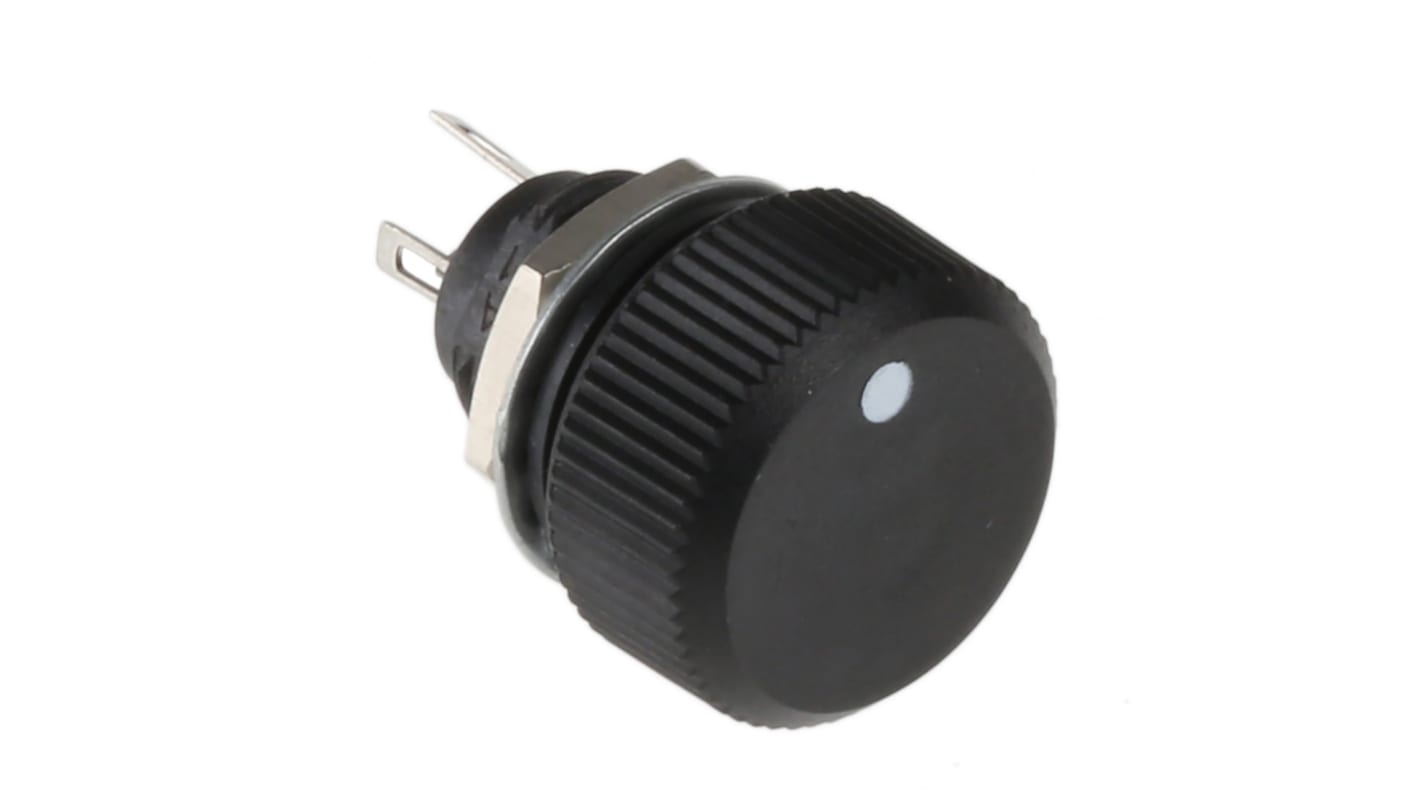

Vishay 1kΩ Rotary Potentiometer 1-Gang Panel Mount, P16NP102MAB15
- RS Stock No.:
- 790-4410P
- Mfr. Part No.:
- P16NP102MAB15
- Brand:
- Vishay
290 In stock for delivery within 7 working day(s)
Added
Price (ex. GST) Each (Supplied in a Box)
$32.88
(exc. GST)
$37.81
(inc. GST)
| Units | Per unit |
| 5 - 24 | $32.88 |
| 25 + | $27.05 |
- RS Stock No.:
- 790-4410P
- Mfr. Part No.:
- P16NP102MAB15
- Brand:
- Vishay
Technical data sheets
- P16, PA16 Knob Potentiometer Datasheet
- P16 Series Capabilities and Custom Options
- Infographic - Compact Panel Potentiometer
- Did you know? P16 Potentiometers
- Value Added Potentiometers
- Tradeshow Brochure - Variable Resistors
- Selector Guide - Panel Potentiometers
- Potentiometers and Trimmers
- Quick Reference Guide - Panel Potentiometers
Legislation and Compliance
Product Details
16mm P16 Series
The P16 is a revolutionary concept in panel mounted potentiometers. This unique design consists of a knob driving and incorporating a cermet potentiometer. Only the mounting hardware and terminals are situated on the back side of the panel reducing to a minimum the required clearance.
Unique design with integrated plastic (NP) or metal (NM) knob
Mounts directly onto panel
Minimum clearance required behind panel
Hermetically sealed and panel sealed
Tolerance ±20%
Power rating 1W
Mounts directly onto panel
Minimum clearance required behind panel
Hermetically sealed and panel sealed
Tolerance ±20%
Power rating 1W
Supplied with
Nut, lock washer and sealing ring.
Specifications
Attribute | Value |
|---|---|
| Potentiometer Type | Rotary |
| Maximum Resistance | 1kΩ |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power Rating | 1W |
| Electrical Taper | Linear |
| Element Material | Cermet |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Shaft Length | 8.8mm |
| Shaft Diameter | 16 mm |
| Tolerance | ±20% |
| Actuator Type | Knurled Shaft |
| Series | P16 |
