Infineon BTS711L1XUMA1 High Side 4, High Speed Power Switch IC 20-Pin, DSO
- RS Stock No.:
- 445-2326
- Mfr. Part No.:
- BTS711L1XUMA1
- Brand:
- Infineon

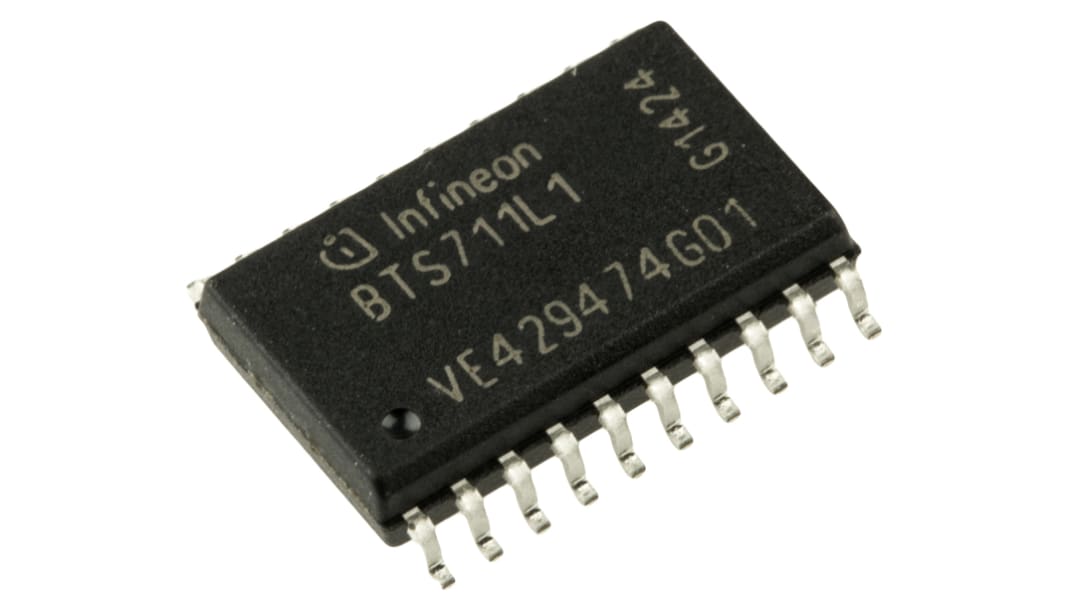

This image is representative of the product range
Bulk discount available
View bulk pricing optionSubtotal (1 unit)*
$11.79
(exc. GST)
$13.56
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Last RS stock
- 978 left, ready to ship from another location
- Final 862 unit(s) shipping from 04 May 2026
Units | Per unit |
|---|---|
| 1 - 249 | $11.79 |
| 250 - 499 | $11.50 |
| 500 + | $11.33 |
*price indicative
- RS Stock No.:
- 445-2326
- Mfr. Part No.:
- BTS711L1XUMA1
- Brand:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Power Switch Topology | High Side | |
| Product Type | Power Switch IC | |
| Power Switch Type | High Speed | |
| Switch On Resistance RdsOn | 0.17Ω | |
| Number of Inputs | 4 | |
| Mount Type | Surface | |
| Package Type | DSO | |
| Minimum Supply Voltage | 5V | |
| Pin Count | 20 | |
| Maximum Supply Voltage | 16V | |
| Operating Current | 7.5A | |
| Maximum Operating Temperature | 150°C | |
| Minimum Operating Temperature | -40°C | |
| Length | 12.8mm | |
| Height | 2.45mm | |
| Standards/Approvals | No | |
| Series | BTS711L1 | |
| Automotive Standard | AEC | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Power Switch Topology High Side | ||
Product Type Power Switch IC | ||
Power Switch Type High Speed | ||
Switch On Resistance RdsOn 0.17Ω | ||
Number of Inputs 4 | ||
Mount Type Surface | ||
Package Type DSO | ||
Minimum Supply Voltage 5V | ||
Pin Count 20 | ||
Maximum Supply Voltage 16V | ||
Operating Current 7.5A | ||
Maximum Operating Temperature 150°C | ||
Minimum Operating Temperature -40°C | ||
Length 12.8mm | ||
Height 2.45mm | ||
Standards/Approvals No | ||
Series BTS711L1 | ||
Automotive Standard AEC | ||
PROFET Smart High-Side Power Switch, Multi-Channel, Infineon
Overload protection
Current limitation
Short-circuit protection
Thermal shutdown
Overvoltage protection
Electrostatic discharge (ESD) protection
