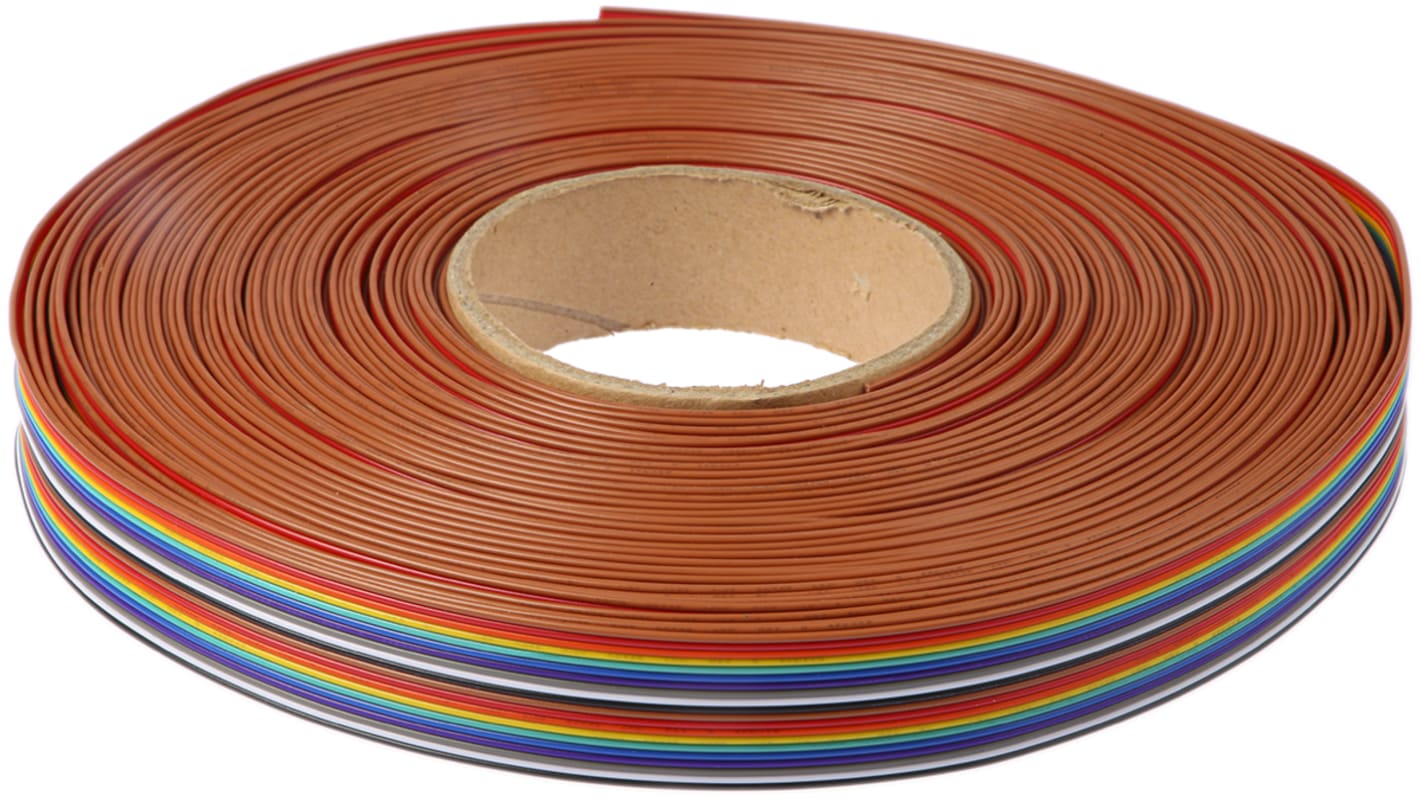

RS PRO Flat Ribbon Cable, 20-Way, 1.27mm Pitch, 25m Length

Need a flat ribbon cable to connect data transmission devices? This 20-way cable from the RS PRO range provides a neat solution to mass termination and is commonly used with computers and audio and digital equipment.

The 25.4-mm wide unscreened cable has a pitch of 1.27 mm and is available in a length of 25 metres. The cable's seven core strands measure 0.15 mm² each (AWG 26). It will operate down to -20˚C without cracking the colour-coded PVC insulation and up to +105˚C without melting. The capacitance of 50 pF/m and characteristic impedance of 100 Ω make it suitable for transmitting data signals.
Conforming to the UL 1007 standard, this cable is suitable for general-purpose internal wiring of electronic and electrical equipment. Meeting the standards of ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, it won't damage equipment through electrostatic discharge and is RoHS compliant on hazardous substances.

• 20-way flat ribbon cable
• Length of 25 m
• Used for mass termination in computer, audio and digital equipment
• Unscreened
• Width of 25.4 mm
• Pitch of 1.27 mm
• Voltage rating of 300 V
• Seven-stranded conductors have a cross-sectional area of 0.15 mm² (AWG26)
• Characteristic impedance of 100 Ω is suitable for data transmission
• Capacitance of 50 pF/m
• Minimum operating temperature of -20°C without cracking
• Maximum operating temperature of +105°C without melting
• Multicoloured sheath
• Conforms to standards UL 1007 (general purpose internal wiring), ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 (electrostatic discharge) and RoHS (hazardous substances)
