Vishay 1 kV 2 A Diode Switching 2-Pin SOD-57 BYW56-TAP
- RS Stock No.:
- 700-3974
- Distrelec Article No.:
- 304-44-031
- Mfr. Part No.:
- BYW56-TAP
- Brand:
- Vishay

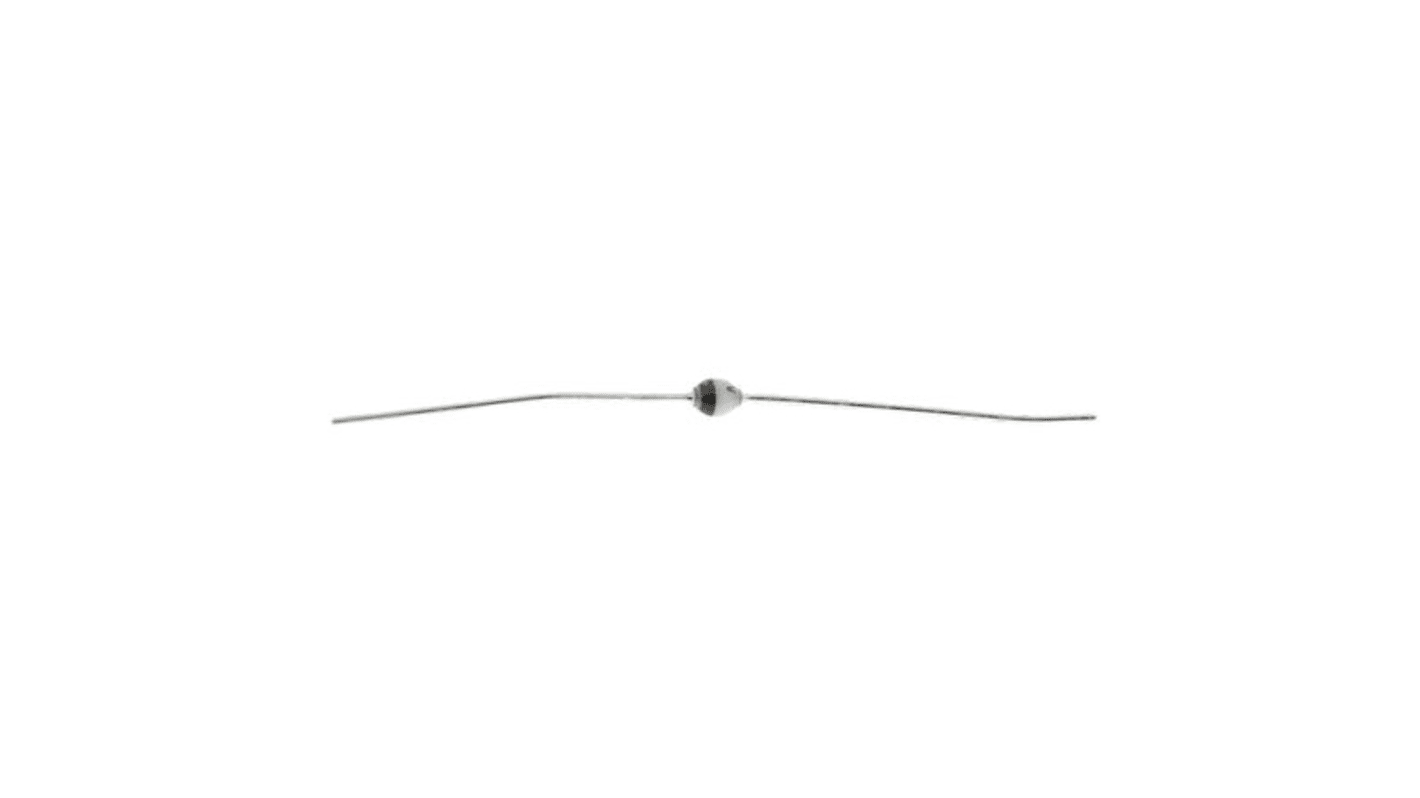

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 10 units)*
$8.71
(exc. GST)
$10.02
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- Plus 2,910 unit(s) shipping from 27 April 2026
- Plus 10,090 unit(s) shipping from 04 May 2026
- Plus 22,000 unit(s) shipping from 03 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 1240 | $0.871 | $8.71 |
| 1250 - 2490 | $0.854 | $8.54 |
| 2500 + | $0.837 | $8.37 |
*price indicative
- RS Stock No.:
- 700-3974
- Distrelec Article No.:
- 304-44-031
- Mfr. Part No.:
- BYW56-TAP
- Brand:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Mount Type | Through Hole | |
| Product Type | Diode | |
| Package Type | SOD-57 | |
| Maximum Continuous Forward Current If | 2A | |
| Peak Reverse Repetitive Voltage Vrrm | 1kV | |
| Diode Configuration | Single | |
| Series | BYW56 | |
| Rectifier Type | Switching | |
| Pin Count | 2 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A | |
| Minimum Operating Temperature | -55°C | |
| Peak Reverse Current Ir | 1μA | |
| Maximum Forward Voltage Vf | 1V | |
| Maximum Operating Temperature | 175°C | |
| Peak Reverse Recovery Time trr | 4μs | |
| Height | 3.6mm | |
| Standards/Approvals | No | |
| Length | 4mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Mount Type Through Hole | ||
Product Type Diode | ||
Package Type SOD-57 | ||
Maximum Continuous Forward Current If 2A | ||
Peak Reverse Repetitive Voltage Vrrm 1kV | ||
Diode Configuration Single | ||
Series BYW56 | ||
Rectifier Type Switching | ||
Pin Count 2 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 50A | ||
Minimum Operating Temperature -55°C | ||
Peak Reverse Current Ir 1μA | ||
Maximum Forward Voltage Vf 1V | ||
Maximum Operating Temperature 175°C | ||
Peak Reverse Recovery Time trr 4μs | ||
Height 3.6mm | ||
Standards/Approvals No | ||
Length 4mm | ||
Automotive Standard AEC-Q101 | ||
Standard Recovery Rectifiers, 2A to 10A
Versatile and high-efficiency Standard Recovery Power Diodes in industry-standard package styles.
Diodes and Rectifiers, Vishay Semiconductor
