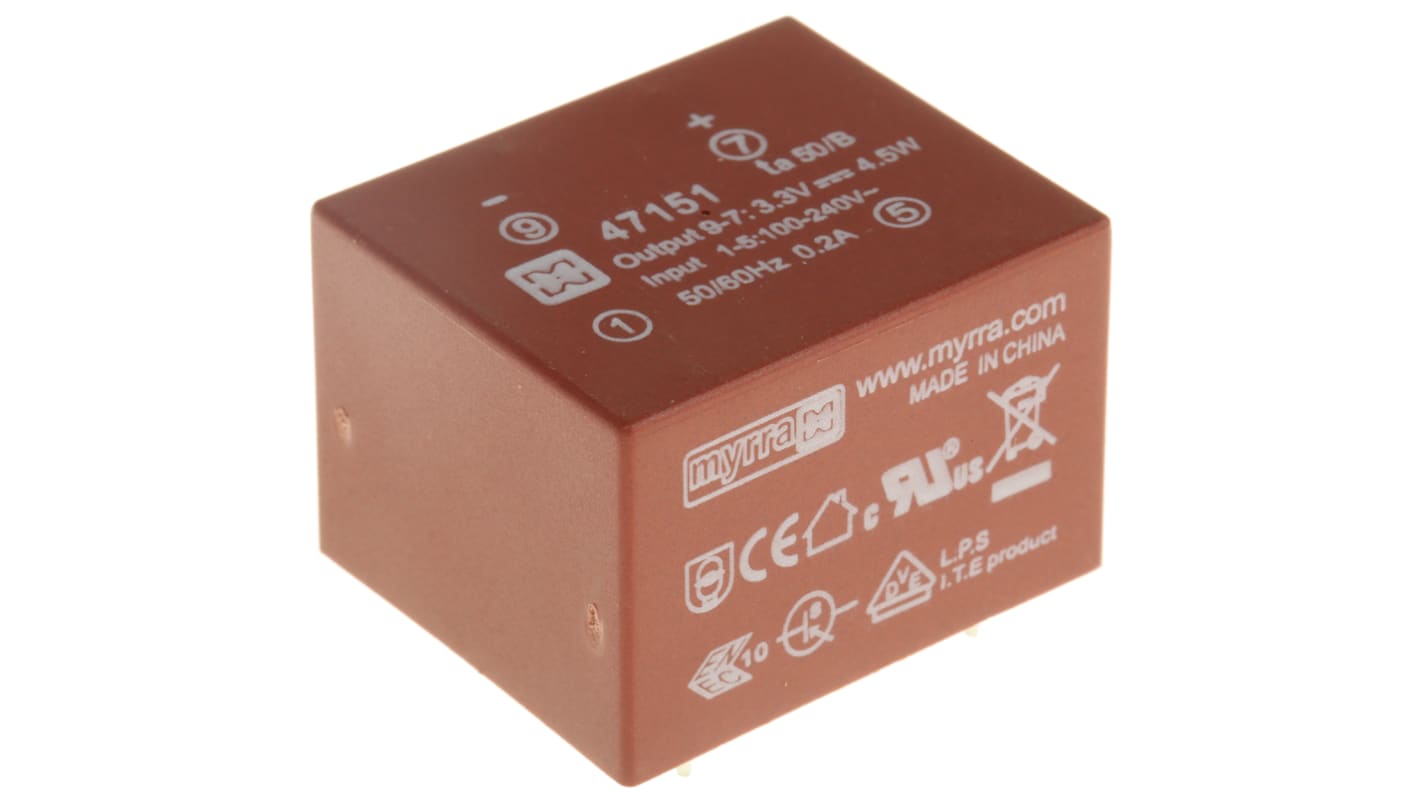

Myrra 5 Output SMPS Transformer 5 W Output, 265 V, 85 to 370 V ac, 3.3 V
- RS Stock No.:
- 792-4366
- Mfr. Part No.:
- 47151
- Brand:
- Myrra
Bulk discount available
Subtotal (1 unit)*
$43.65
(exc. GST)
$50.20
(inc. GST)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 9 | $43.65 |
| 10 - 24 | $42.93 |
| 25 + | $41.15 |
*price indicative
- RS Stock No.:
- 792-4366
- Mfr. Part No.:
- 47151
- Brand:
- Myrra
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Myrra | |
| Secondary Voltage | 3.3 V | |
| Product Type | SMPS Transformer | |
| Primary Voltage | 265 V, 85 to 370 V ac | |
| Number of Outputs | 5 | |
| Mount Type | Through Hole | |
| Power | 5W | |
| Secondary Current | 1350 mA | |
| Minimum Operating Temperature | -25°C | |
| Primary Current | 0.2A | |
| Number of Pins | 4 | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | RoHS, CE, VDE, ENEC, UL | |
| Weight | 30g | |
| Depth | 21.8mm | |
| Length | 31.7mm | |
| Width | 26.7 mm | |
| Maximum Operating Frequency | 440Hz | |
| Minimum Operating Frequency | 47Hz | |
| Select all | ||
|---|---|---|
Brand Myrra | ||
Secondary Voltage 3.3 V | ||
Product Type SMPS Transformer | ||
Primary Voltage 265 V, 85 to 370 V ac | ||
Number of Outputs 5 | ||
Mount Type Through Hole | ||
Power 5W | ||
Secondary Current 1350 mA | ||
Minimum Operating Temperature -25°C | ||
Primary Current 0.2A | ||
Number of Pins 4 | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals RoHS, CE, VDE, ENEC, UL | ||
Weight 30g | ||
Depth 21.8mm | ||
Length 31.7mm | ||
Width 26.7 mm | ||
Maximum Operating Frequency 440Hz | ||
Minimum Operating Frequency 47Hz | ||
- COO (Country of Origin):
- CN
Single Regulated DC Output Electronic Transformers
MYRRA encapsulated electronic transformers are Switched Mode Power Supplies based on Flyback topology
They are an interesting alternative to the traditional supply in the most common applications of power lower than 5W
ENERGY SAVING due to high efficiency and low standby power
The applications for the Electronic series are, telecom supplies, electric substations etc. Industrial, domestic and consumer electronics
With the same footprint as a EI30 transformer, they will replace the 50 Hz Transformer, Fuse, Bridge Rectifier, Regulator and Filtering Capacitor
