Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Memory Size	1Mbit
	Organisation	64k x 16 bit
	Number of Words	64k
	Number of Bits per Word	16bit
	Maximum Random Access Time	10ns
	Timing Type	Asynchronous
	Mounting Type	Surface Mount
	Package Type	TSOP
	Pin Count	44
	Dimensions	18.51 x 10.26 x 1.04mm
	Maximum Operating Supply Voltage	3.6 V
	Height	1.04mm
	Minimum Operating Temperature	-40 °C
	Minimum Operating Supply Voltage	3 V
	Width	10.26mm
	Length	18.51mm
	Maximum Operating Temperature	+85 °C

	Select all
	Brand Infineon
	Memory Size 1Mbit
	Organisation 64k x 16 bit
	Number of Words 64k
	Number of Bits per Word 16bit
	Maximum Random Access Time 10ns
	Timing Type Asynchronous
	Mounting Type Surface Mount
	Package Type TSOP
	Pin Count 44
	Dimensions 18.51 x 10.26 x 1.04mm
	Maximum Operating Supply Voltage 3.6 V
	Height 1.04mm
	Minimum Operating Temperature -40 °C
	Minimum Operating Supply Voltage 3 V
	Width 10.26mm
	Length 18.51mm
	Maximum Operating Temperature +85 °C

Datasheet CY7C1021DV33-10ZSXIT

Temperature ranges
Industrial: –40 °C to 85 °C
Automotive-A: –40 °C to 85 °C
Pin-and function-compatible with CY7C1021CV33
High speed
tAA = 10 ns
Low active power
ICC = 60 mA @ 10 ns
Low CMOS standby power
ISB2 = 3 mA
2.0 V data retention
Automatic power-down when deselected
CMOS for optimum speed/power
Independent control of upper and lower bits
Available in Pb-free 44-pin 400-Mil wide molded SOJ, 44-pin TSOP II and 48-ball VFBGA packages

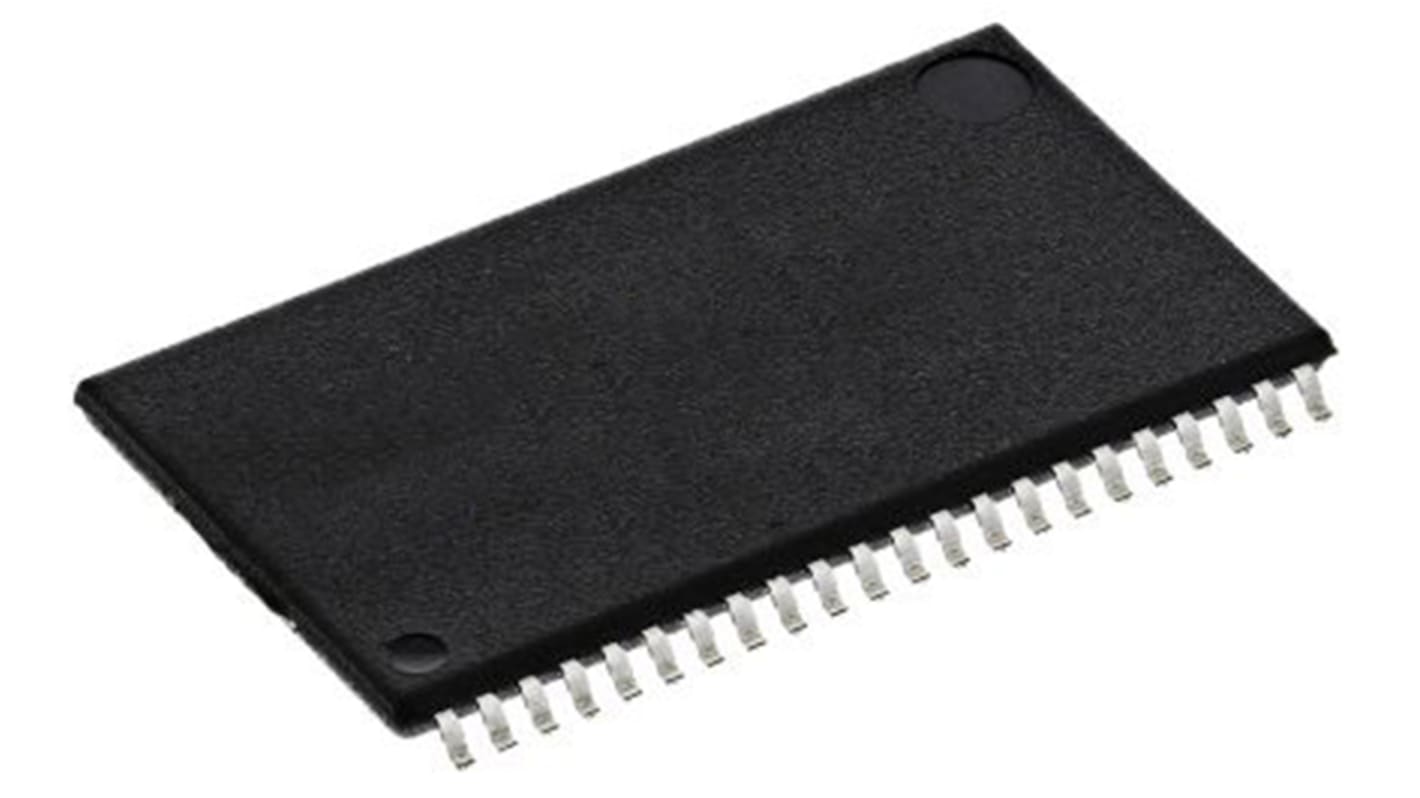

Infineon SRAM Memory Chip, CY7C1021DV33-10ZSXIT- 1Mbit

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
